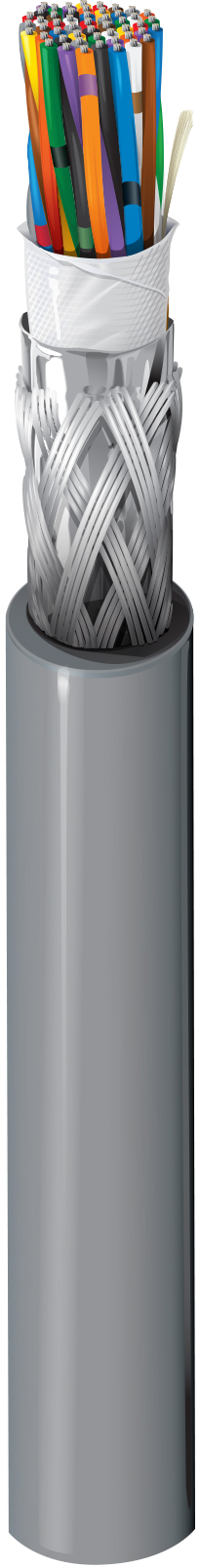

SCSI, #28-34pr, PO, O/A Foil+Braid, PVC Jkt, CMG
SCSI, 28 AWG stranded (7x36) tinned copper conductors, flame-retardant polyolefin insulation, polypropylene buffer layer, twisted pairs, overall Beldefoil® shield + tinned copper braid shield (85% coverage), see color code chart (below), light gray PVC jacket.
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
1403A is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Footnote | Order |
|---|---|---|---|---|
| 1403A F2V1000 | Gray, DEC | 612825114765 | C | Order online |
| 1403A F2V500 | Gray, DEC | 612825114772 | C | Order online |
Specifications
Product Overview
| Suitable Applications | SCSI II |
|---|
Construction Details
Conductor
| Element | Pair(s) |
|---|---|
| No. of Elements | 34 |
| Size | 28 |
| Stranding | 7x36 |
| Material | TC - Tinned Copper |
Insulation
| Material | PP - Polypropylene |
|---|---|
| Nom. Thickness | 0.01 in (0.25 mm) |
| Nom. Insulation Diameter | 0.034 in (0.86 mm) |
| Color Code | White/Blue & Blue/White, White/Orange & Orange/White, White/Green & Green/White, White/Brown & Brown/White, White/Gray & Gray/White, Red/Blue & Blue/Red, Red/Orange & Orange/Red, Red/Green & Green/Red, Red/Brown & Brown/Red, Red/Gray & Gray/Red, Black/Blue & Blue/Black, Black/Orange & Orange/Black, Black/Green & Green/Black, Black/Brown & Brown/Black, Black/Gray & Gray/Black, Yellow/Blue & Blue/Yellow, Yellow/Orange & Orange/Yellow, Yellow/Green & Green/Yellow, Yellow/Brown & Brown/Yellow, Yellow/Gray & Gray/Yellow, Purple/Blue & Blue/Purple, Purple/Orange & Orange/Purple, Purple/Green & Green/Purple, Purple/Brown & Brown/Purple, Purple/Gray & Gray/Purple, White & Blue, White & Orange, White & Green, White & Brown, White & Gray, Red & Blue, Red & Orange, Red & Green, Red & Brown |
| Notes | Flame Retardant |
Outer Shield
| Shield Type | Material | Coverage |
|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% |
| Braid | Tinned Copper (TC) | 85% |
Outer Jacket
| Separator | PO - Polyolefin (Foam) Tape |
|---|---|
| Material | PVC - Polyvinyl Chloride |
| Nom. Thickness | 0.038 in (0.97 mm) |
| Nom. Diameter | 0.48 in (12 mm) |
Electrical Characteristics
| Nom Outer Shield DCR | 1.15 Ohm/1000ft (3.77 Ohm/km) |
|---|
Electricals
| Nom. Conductor DCR | 73.5 Ohm/1000ft |
|---|---|
| Nom. Capacitance Cond-to-Cond | 12.7 pF/ft (41.7 pF/m) |
| Nom. Capacitance Cond-to-Other (Conds + Shield) | 30 pF/ft (98 pF/m) |
| Nom. Characteristic Impedence | 122 Ohm |
| Nom. Delay | 0.04 ns/ft |
| Nom. Velocity of Prop. | 66% |
| Max. Current | 0.5 Amps per Conductor at 25oC |
Voltage
| UL Voltage Rating | 300 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 262.8 lbs (119.2 kg) |
|---|---|
| Bulk Cable Weight | 128 lbs/1000ft |
Temperature
| UL Temperature | 105°C |
|---|---|
| Operating | -20°C To +105°C |
Bend Radius
| Stationary Min. | 4.8 in (120 mm) |
|---|---|
| Installation Min. | 4.8 in (120 mm) |
Standards and Compliance
| Flammability / Reaction to Fire | UL1685 UL Loading, FT4 |
|---|---|
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 725, Article 800, CL2, CM |
| CEC / C(UL) Compliance | CM. |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.446 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
