CC Link, 3 C #20 Str BC, FPE Ins, OS+TC Brd, PVC Jkt, CM

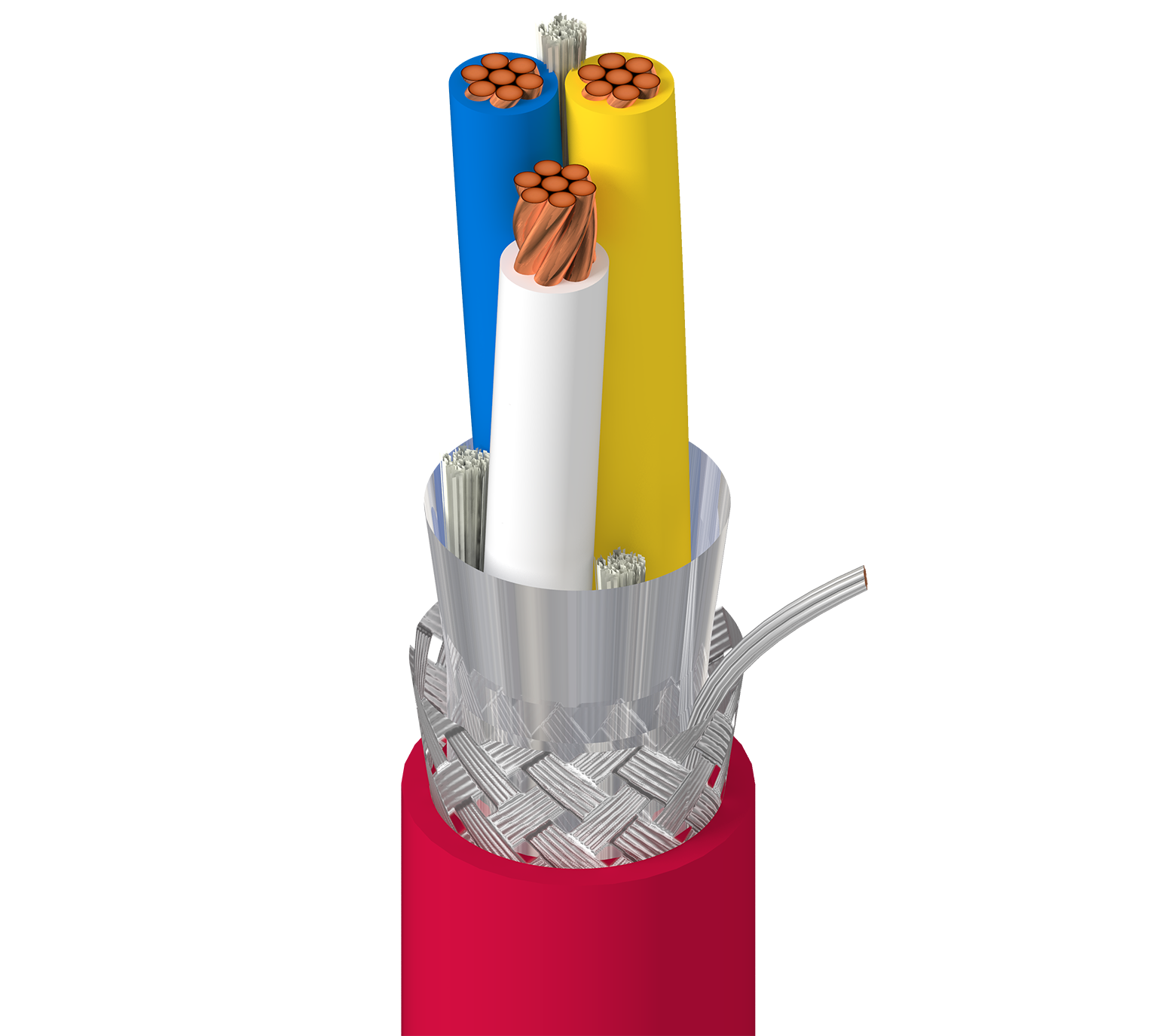

CC Link, 3 Conductor 20AWG (7x28) Bare Copper, FPE Insulation, Overall Beldfoil®+Tinned Copper Braid(78%) Shield, PVC Outer Jacket, CM
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
1348A is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Footnote | Order |
|---|---|---|---|---|---|---|
| 1348A 0021000 | Red | Reel | 1,000 ft | 612825112365 | C | Order online |
| 1348A 0025000 | Red | Reel | 5,000 ft | 612825112372 | C Z | Order online |
Specifications
Product Overview
| Suitable Applications | harsh environment, IIoT, factory or process automation, video, audio, data communication, etc. |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.303 in (7.70 mm) |
|---|
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 3 |
| Size | 20 AWG |
| Stranding | 7x28 |
| Material | BC - Bare Copper |
Insulation
| Element | Conductor(s) |
|---|---|
| Material | PE - Polyethylene (Foam) |
| Nom. Thickness | 0.028 in (0.71 mm) |
| Nom. Insulation Diameter | 0.094 in (2.4 mm) |
| Color Code | Blue, Yellow, White |
| Notes | HDPE |
Outer Shield
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 22 AWG (19x34) TC |
| Braid | Tinned Copper (TC) | 78% |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.035 in (0.89 mm) |
| Nom. Diameter | 0.303 in (7.70 mm) |
Electrical Characteristics
| Nom Outer Shield DCR | 3.2 Ohm/1000ft (10 Ohm/km) |
|---|
Electricals
| Element | Conductor(s) |
|---|---|
| Nom. Conductor DCR | 11.5 Ohm/1000ft |
| Nom. Capacitance Cond-to-Cond | 18.3 pF/ft (60.0 pF/m) |
| Nom. Characteristic Impedence | 110 Ohm |
Voltage
| UL Voltage Rating | 300 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 86 lbs (39 kg) |
|---|---|
| Bulk Cable Weight | 49 lbs/1000ft |
Temperature
| UL Temperature | 75°C |
|---|---|
| Operating | -30°C to +75°C |
Bend Radius
| Stationary Min. | 4 in (100 mm) |
|---|---|
| Installation Min. | 4 in (100 mm) |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Flammability / Reaction to Fire | UL 1685 UL Loading |
| NEC / UL Compliance | Article 800, CM, CL2 |
| CEC / C(UL) Compliance | CM. |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
Product Notes
| Notes | Mitsubishi #BA1SJ61-S, Cable contains fillers |
|---|
History
| Update and Revision | Revision Number: 0.515 Revision Date: 02-20-2026 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN. |
