RS485, 3 Pr #22 Str TC, PE Ins, OS+TC Brd, PVC Jkt, SIA Armor, PVC Jkt, CM, PLTC

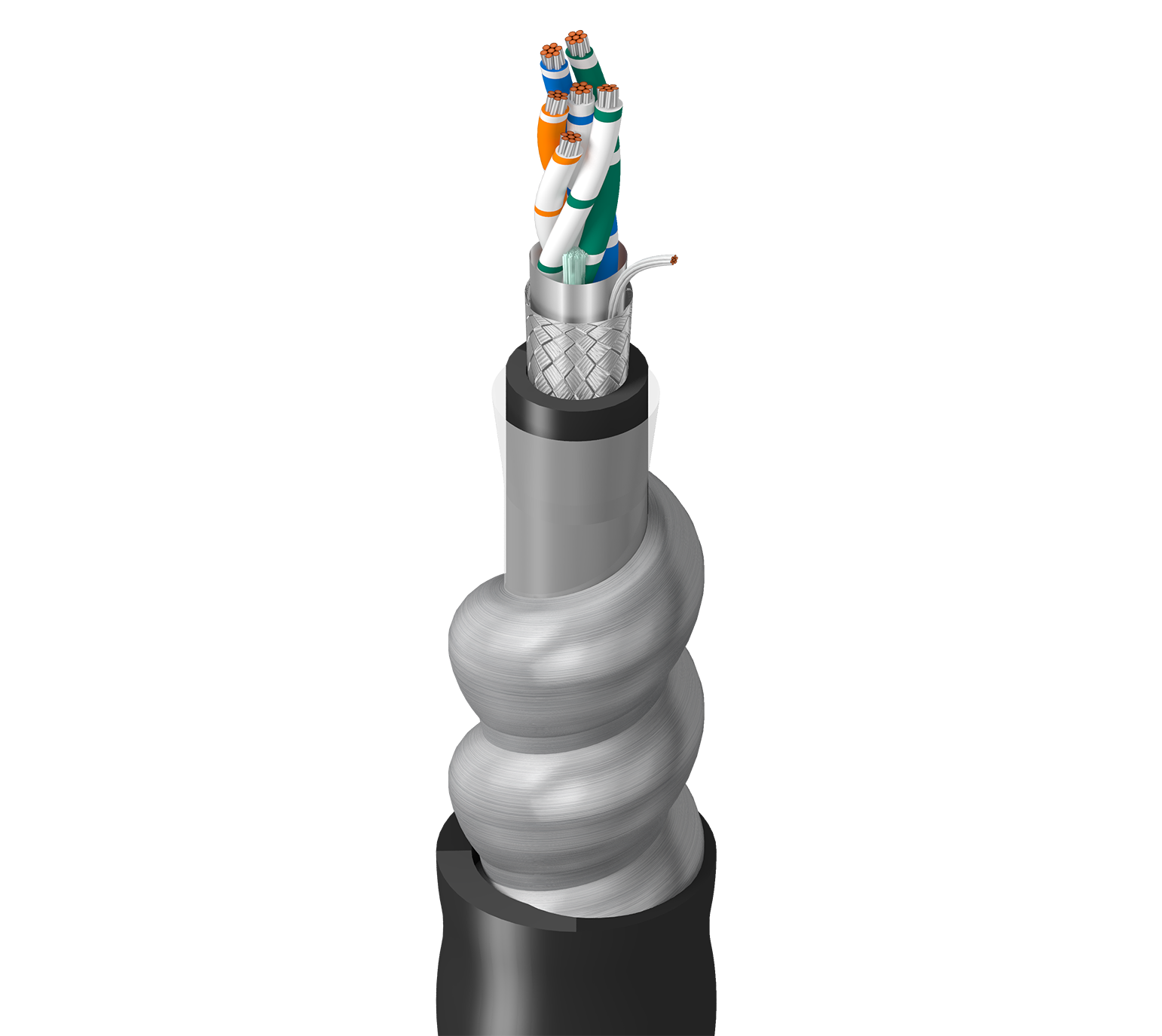

RS-485, 3 Pair 22AWG (7x30) Tinned Copper, PE Insulation, Overall Beldfoil®+Tinned Copper Braid(65%) Shield, PVC Inner Jacket, Steel Interlock Armor, PVC Outer Jacket, CM, PLTC
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | exposure to rodent, crush, or cut through force, burial, serial communication (RS-485 standard) comprising of PLCs, VFDs, HMIs, motors, RTU, SCADA, etc. within noisy environments over long distance, outdoor such as solar, lighting, etc. |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.723 in (18.4 mm) |
|---|
Conductor
| Element | Pair(s) |
|---|---|
| No. of Elements | 3 |
| Size | 22 AWG |
| Stranding | 7x30 |
| Material | TC - Tinned Copper |
Insulation
| Element | Pair(s) |
|---|---|
| Material | PE - Polyethylene (Foam) |
| Nom. Thickness | 0.023 in (0.58 mm) |
| Nom. Insulation Diameter | 0.075 in (1.9 mm) |
| Color Code | White/Blue Stripe & Blue/White Stripe, White/Orange Stripe & Orange/White Stripe, White/Green Stripe & Green/White Stripe |
| Notes | HDPE |
Outer Shield
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 22 AWG (7x30) TC |
| Braid | Tinned Copper (TC) | 65% |
Inner Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.053 in (1.3 mm) |
| Nom. Diameter | 0.374 in (9.50 mm) |
Armor
| Armor Type & Material | SIA - Steel Interlock Armor |
|---|
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.050 in (1.3 mm) |
| Nom. Diameter | 0.723 in (18.4 mm) |
Electrical Characteristics
Electricals
| Element | Nom. Conductor DCR | Nom. Inner Shield DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedence | Nom. Velocity of Prop. |
|---|---|---|---|---|---|---|
| Pair(s) | 17.5 Ohm/1000ft (57.4 Ohm/km) | 1.5 Ohm/1000ft (4.9 Ohm/km) | 120 Ohm | 78% | ||
| 11.0 pF/ft (36.1 pF/m) | 20.90 pF/ft | 120 Ohm |
High Frequency (Nominal/Typical)
| Element | Frequency [kHz] |
|---|---|
| Pair(s) | 125 |
| 500 |
High Frequency
| Max. Insertion Loss (Attenuation) |
|---|
| 0.29 dB/100ft |
| 0.5 dB/100ft |
Voltage
| UL Voltage Rating | 300 V (CM, PLTC) |
|---|
Mechanical Characteristics
| Temperature Table Notes | -40C |
|---|---|
| Max. Pull Tension | 200 lbs (91 kg) |
| Bulk Cable Weight | 427 lbs/1000ft (635 kg/km) |
Temperature
| UL Temperature | 60°C |
|---|---|
| Operating | -25°C to +60°C |
Standards and Compliance
| Environmental Suitability | Indoor, Outdoor, Sunlight Resistance |
|---|---|
| Sustainability | CA Prop 65 |
| Flammability / Reaction to Fire | FT4 |
| NEC / UL Compliance | Article 725, Article 800, CM, PLTC |
| CEC / C(UL) Compliance | CMG HLBCD. |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.70 Revision Date: 05-31-2024 |
|---|
