RS485, 2 Pr #24 Str TC, PE Ins, OS+TC Brd, PVC Jkt, AIA Armor, PVC Jkt, CM

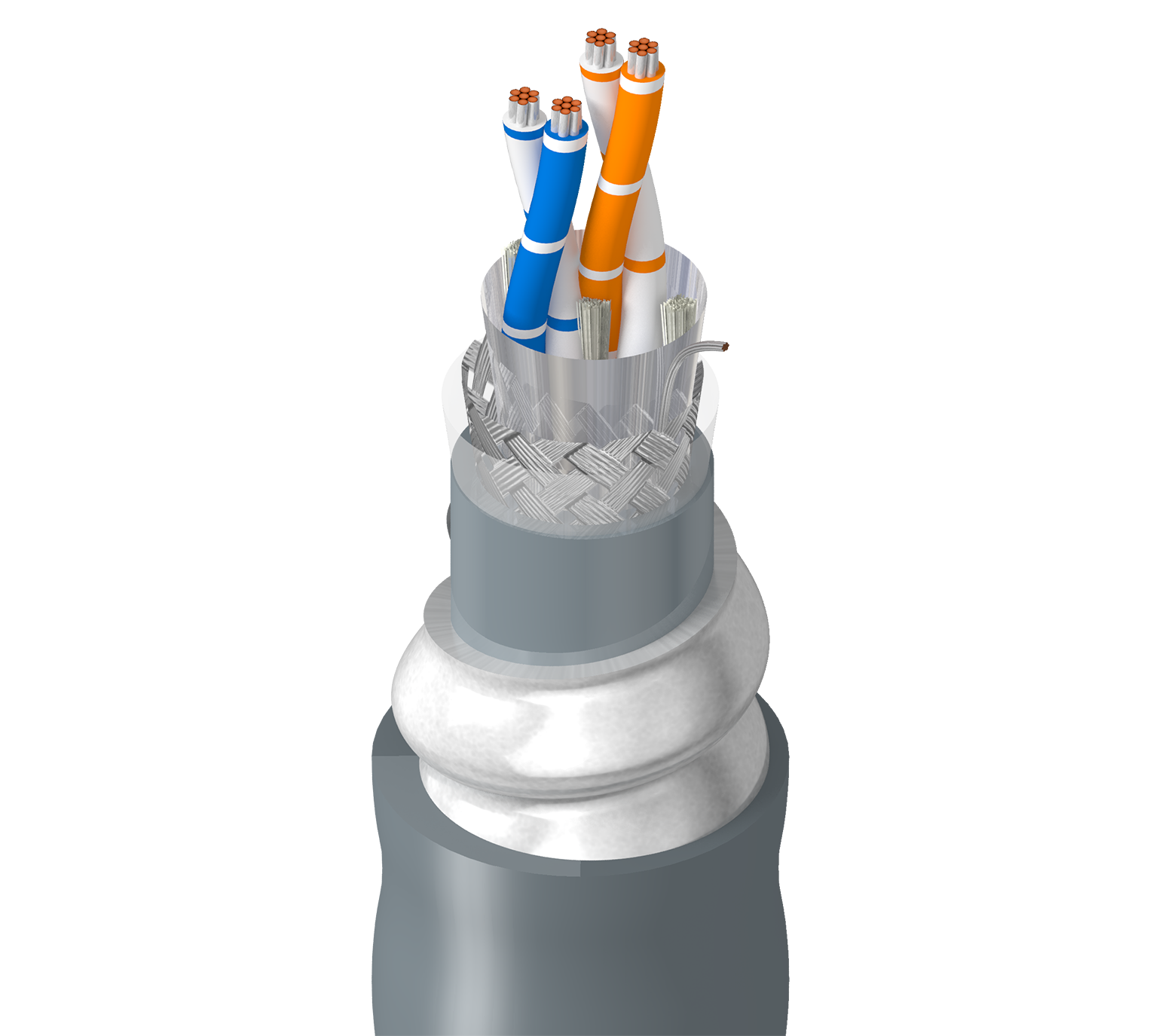

RS-485, 2 Pair 24AWG (7x32) Tinned Copper, PE Insulation, Overall Beldfoil®+Tinned Copper Braid(90%) Shield, PVC Inner Jacket, Aluminum Interlock Armor, PVC Outer Jacket, CM
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | exposure to rodent, crush, or cut through force, burial, POS, serial communication (RS-485 standard) comprising of PLCs, VFDs, HMIs, motors, RTU, SCADA, etc. within noisy environments over long distance, outdoor such as solar, lighting, etc. |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.620 in (15.7 mm) |
|---|
Conductor
| Element | Pair(s) |
|---|---|
| No. of Elements | 2 |
| Size | 24 AWG |
| Stranding | 7x32 |
| Material | TC - Tinned Copper |
Insulation
| Element | Pair(s) |
|---|---|
| Material | PE - Polyethylene |
| Nom. Thickness | 0.022 in (0.56 mm) |
| Color Code | White/Blue Stripe & Blue/White Stripe, White/Orange Stripe & Orange/White Stripe |
Outer Shield
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 24 AWG (7x32) TC |
| Braid | Tinned Copper (TC) | 90% |
Inner Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Diameter | 0.340 in (8.64 mm) |
Armor
| Armor Type & Material | AIA - Aluminum Interlock Armor |
|---|
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.045 in (1.1 mm) |
| Nom. Diameter | 0.620 in (15.7 mm) |
Electrical Characteristics
| Nom Outer Shield DCR | 2.2 Ohm/1000ft (7.2 Ohm/km) |
|---|
Electricals
| Element | Pair(s) |
|---|---|
| Nom. Conductor DCR | 24 Ohm/1000ft (79 Ohm/km) |
| Nom. Capacitance Cond-to-Cond | 12.8 pF/ft (42.0 pF/m) |
| Nom. Capacitance Cond-to-Other (Conds + Shield) | 23 pF/ft |
| Nom. Characteristic Impedence | 120 Ohm |
| Nom. Velocity of Prop. | 66% |
| Max. Current | 2.1 Amps per Conductor at 25oC |
High Frequency (Nominal/Typical)
| Element | Pair(s) |
|---|---|
| Frequency [MHz] | 1 |
| Nom. Insertion Loss (Attenuation) | 0.6 dB/100ft |
Voltage
| UL Voltage Rating | 300 V (CM) |
|---|
Mechanical Characteristics
| Temperature Table Notes | -40C CSA |
|---|---|
| Max. Pull Tension | 200 lbs (91 kg) |
| Bulk Cable Weight | 162 lbs/1000ft (241 kg/km) |
Temperature
| UL Temperature | 80°C |
|---|---|
| Operating | -30°C to +80°C |
Bend Radius
| Stationary Min. | 6.2 in (160 mm) |
|---|---|
| Installation Min. | 6.2 in |
Standards and Compliance
| Environmental Suitability | Indoor, Outdoor, Sunlight Resistance |
|---|---|
| Flammability / Reaction to Fire | IEC 60332-1-2 |
| NEC / UL Compliance | Article 800, CM |
| CEC / C(UL) Compliance | CMG. |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.312 Revision Date: 12-22-2023 |
|---|
