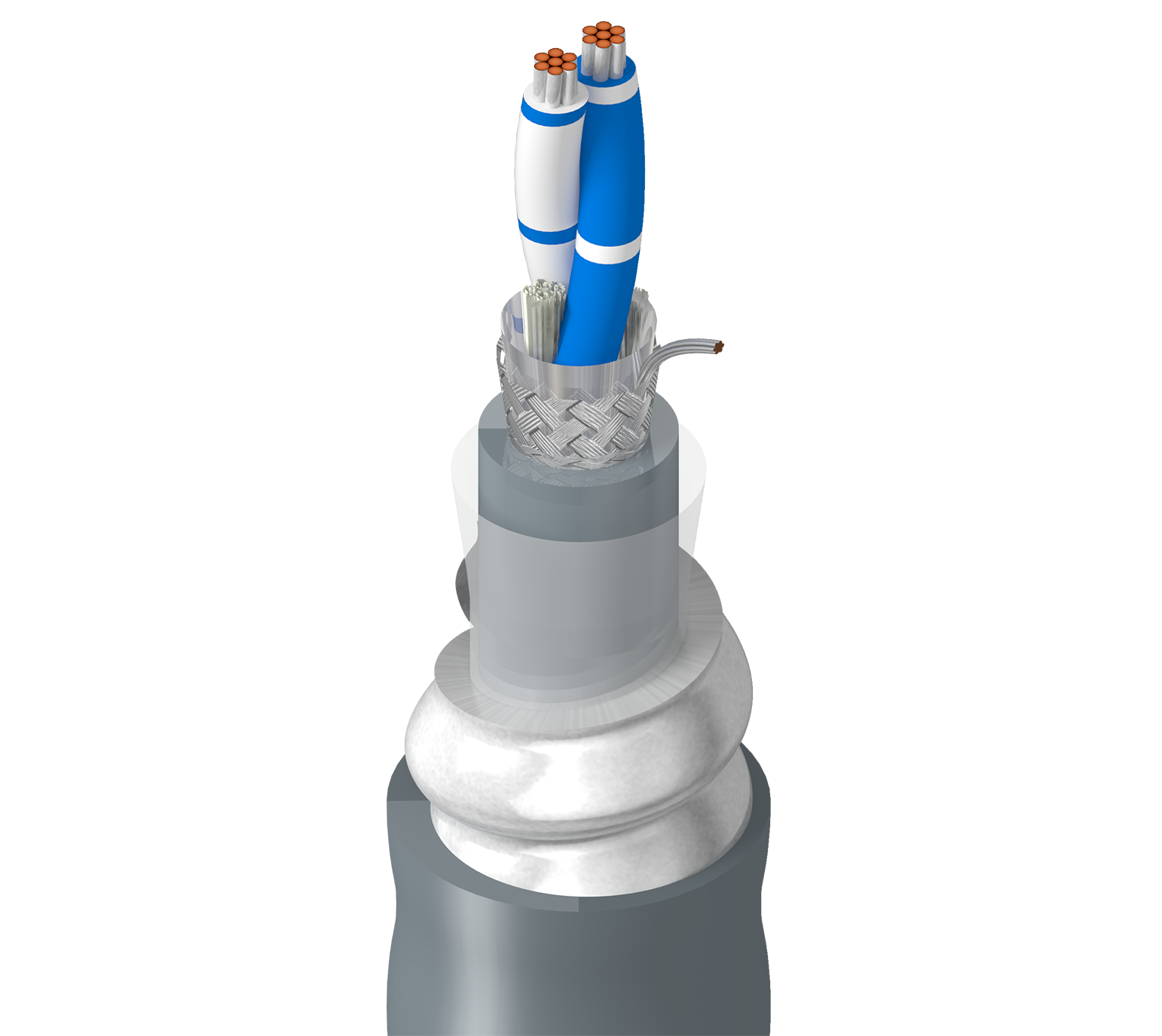

RS485, 1 Pr #24 Str TC, PE Ins, OS+TC Brd, PVC Jkt, AIA Armor, PVC Jkt, CM
RS-485, 1 Pair 24AWG (7x32) Tinned Copper, PE Insulation, Overall Beldfoil®+Tinned Copper Braid(90%) Shield, PVC Inner Jacket, Aluminum Interlock Armor, PVC Outer Jacket, CM
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | exposure to rodent, crush, or cut through force, burial, POS, serial communication (RS-485 standard) comprising of PLCs, VFDs, HMIs, motors, RTU, SCADA, etc. within noisy environments over long distance, outdoor such as solar, lighting, etc. |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.512 in (13.0 mm) |
|---|
Conductor
| Element | Pair(s) |
|---|---|
| No. of Elements | 1 |
| Size | 24 AWG |
| Stranding | 7x32 |
| Material | TC - Tinned Copper |
Insulation
| Element | Pair(s) |
|---|---|
| Material | PE - Polyethylene |
| Nom. Thickness | 0.023 in (0.58 mm) |
| Color Code | White/Blue Stripe & Blue/White Stripe |
Outer Shield
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 24 AWG (7x32) TC |
| Braid | Tinned Copper (TC) | 90% |
Inner Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.035 in (0.89 mm) |
| Nom. Diameter | 0.232 in (5.89 mm) |
Armor
| Armor Type & Material | AIA - Aluminum Interlock Armor |
|---|
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.045 in (1.1 mm) |
| Nom. Diameter | 0.512 in (13.0 mm) |
Electrical Characteristics
Electricals
| Element | Pair(s) |
|---|---|
| Nom. Characteristic Impedence | 120 Ohm |
| Max. Current | 2.1 Amps per Conductor at 25oC |
High Frequency (Nominal/Typical)
| Element | Pair(s) |
|---|---|
| Frequency [MHz] | 1 |
Voltage
| UL Voltage Rating | 300 V (CM) |
|---|
Mechanical Characteristics
| Temperature Table Notes | -40C CSA |
|---|---|
| Max. Pull Tension | 200 lbs (91 kg) |
| Bulk Cable Weight | 126 lbs/1000ft (188 kg/km) |
Temperature
| UL Temperature | 80°C |
|---|
Standards and Compliance
| Environmental Suitability | Outdoor, Sunlight Resistance |
|---|---|
| Flammability / Reaction to Fire | UL1685 UL Loading |
| NEC / UL Compliance | Article 800, CM |
| CEC / C(UL) Compliance | CMG. |
History
| Update and Revision | Revision Number: 0.114 Revision Date: 02-15-2024 |
|---|
