Blue Hose®, 1 Pr #20 Str TC, PE Ins Blu, Clr, Foil+TC Braid Shld, PVC Jkt, AIA Armor, PVC Jkt, CM

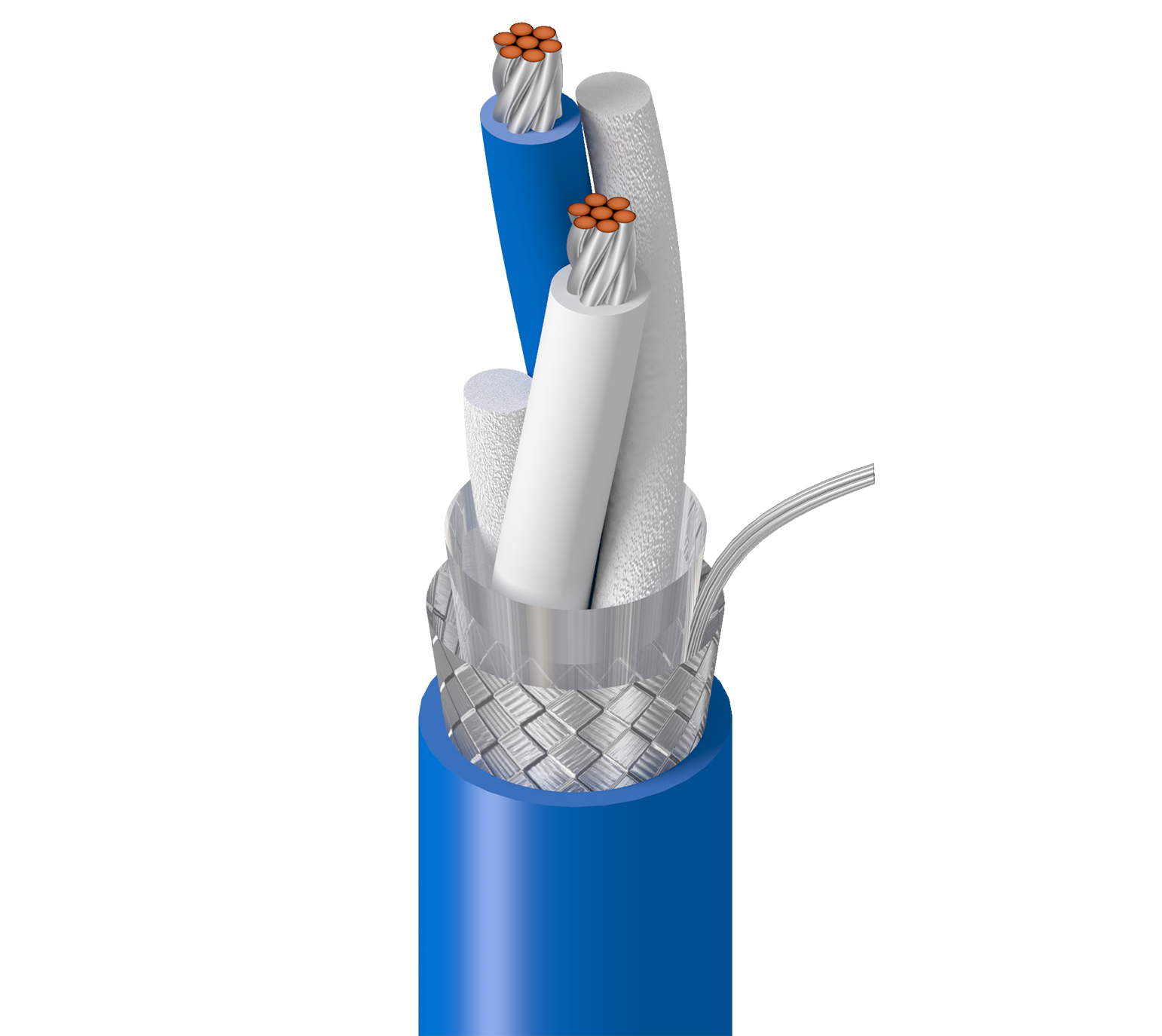

Blue Hose® for Data Highway Plus, 1 Pair 20AWG (7x28) Tinned Copper, PE Insulation Blue & Clear, Overall Beldfoil®+Tinned Copper Braid(55%) Shield, PVC Inner Jacket, Aluminum Interlock Armor, Blue PVC Outer Jacket, CM
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
129463 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Order |
|---|---|---|---|---|---|
| 129463 J221000 | Blue, Strong | Reel | 1,000 ft | 612825110934 | Order online |
Specifications
Product Overview
| Suitable Applications | exposure to rodent, crush, or cut through force, harsh environment, Allen Bradley Data Highway communication interface between PLC processors, I/O devices, operator interfaces, computers and other intelligent devices, PLC processor interlocking, peer-to-peer messaging, remote programming, troubleshooting, I/O updates, etc. |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.550 in (14.0 mm) |
|---|
Conductor
| Element | Pair(s) |
|---|---|
| No. of Elements | 1 |
| Size | 20 AWG |
| Stranding | 7x28 |
| Material | TC - Tinned Copper |
Insulation
| Element | Pair(s) |
|---|---|
| Material | PE - Polyethylene |
| Nom. Thickness | 0.019 in (0.48 mm) |
| Nom. Insulation Diameter | 0.076 in (1.9 mm) |
| Color Code | Clear & Blue |
| Notes | Twinax with rod fillers |
Outer Shield
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 20 AWG (7x28) TC |
| Braid | Tinned Copper (TC) | 60% |
Inner Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.037 in (0.94 mm) |
| Nom. Diameter | 0.238 in (6.05 mm) |
Armor
| Armor Type & Material | AIA - Aluminum Interlock Armor |
|---|---|
| Armor Thickness | 0.025 in |
| Armor Material Diameter | 0.450 in |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.050 in (1.3 mm) |
| Nom. Diameter | 0.550 in (14.0 mm) |
Electrical Characteristics
| Nom Outer Shield DCR | 4.1 Ohm/1000ft (13 Ohm/km) |
|---|
Electricals
| Element | Pair(s) |
|---|---|
| Nom. Conductor DCR | 11.3 Ohm/1000ft |
| Nom. Capacitance Cond-to-Cond | 19.7 pF/ft (64.6 pF/m) |
| Nom. Capacitance Cond-to-Shield | 37 pF/ft (120 pF/m) |
| Nom. Capacitance Cond-to-Other (Conds + Shield) | 36 pF/ft (120 pF/m) |
| Nom. Characteristic Impedence | 78 Ohm |
| Nom. Delay | 1.54 ns/ft |
| Nom. Inductance | 0.12 μH/ft (0.39 μH/m) |
| Nom. Velocity of Prop. | 66% |
High Frequency (Nominal/Typical)
| Element | Frequency [MHz] | Nom. Insertion Loss (Attenuation) |
|---|---|---|
| Pair(s) | 1 | 0.6 dB/100ft |
| 10 | 2.1 dB/100ft | |
| 50 | 5 dB/100ft | |
| 100 | 7.5 dB/100ft | |
| 200 | 11 dB/100ft | |
| 400 | 16 dB/100ft |
Voltage
| UL Voltage Rating | 300 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 200 lbs (91 kg) |
|---|---|
| Bulk Cable Weight | 133 lbs/1000ft |
Temperature
| UL Temperature | 60°C |
|---|---|
| Operating | -40°C to +60°C |
Bend Radius
| Stationary Min. | 6.5 in (170 mm) |
|---|---|
| Installation Min. | 6.5 in (170 mm) |
Standards and Compliance
| Environmental Suitability | Indoor, Outdoor, Sunlight Resistance |
|---|---|
| Flammability / Reaction to Fire | UL 1685 UL Loading |
| NEC / UL Compliance | Article 725, Article 800, CM, PLTC |
| CEC / C(UL) Compliance | CM, CMG, HLBCD. |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| Other Standard Compliance(s) | Allen Bradley Part No. 1770-CD |
History
| Update and Revision | Revision Number: 0.556 Revision Date: 02-20-2026 |
|---|
