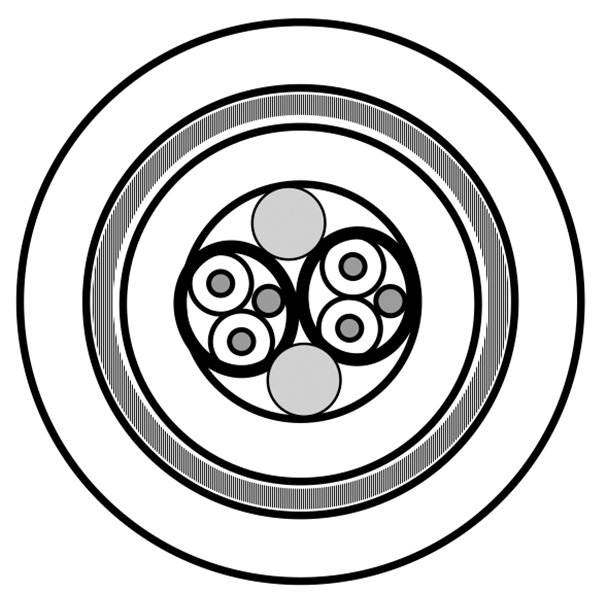

Product Number: 9729LS

RS-232/422, 2PR #24 Str TC, PO ins, IF, LSZH Jkt, 300V, SWA

RS-232/422, 2 Pair AWG 24 Tinned Copper - Stranded, Polyolefin (PO, PE, PP) insulation, Individually Foiled + No Overall shielding, LSZH / FRNC jacket , 300V, SWA

Availability: Global
Status: Active
Orderable items: 3

Ships from and sold by A5 IT.

Part numbers

9729LS is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	EAN	Order
9729LS.00500	Black	Reel	500 m	8719605022516	Order online
9729LS.001000	Black	Reel	1,000 m	8719605022509	Order online
9729LS.011000	Black	Reel	1,000 m	8719605022523	Order online

Specifications

Product Overview

Suitable Applications	Instrumentation and computer cable; For data transmission applications

Construction Details

Conductor

Size	24
Stranding	7x32
Material	TC - Tinned Copper

Insulation

Material	Nom. Insulation Diameter	Color Code
PE - Polyethylene (Foam)	1.55 mm (0.0610 in)	Black & Red, Black & White
		Red, Green

Inner Shield

Shield Type	Tape
Material	Bi-Laminate (Alum+Poly)

Outer Shield

Material	Bi-Laminate (Alum+Poly)

Inner Jacket

Material	LSZH - Low Smoke Zero Halogen (Flame Retardant)
Nom. Diameter	7.9 mm (0.31 in)
Color	Chrome (RAL 7037)

Armor

Armor Type & Material	SWA - Steel Wire Armor
Armor Thickness	0.9 mm
Coverage	Min. 95%

Outer Jacket

Material	LSZH - Low Smoke Zero Halogen (Flame Retardant)
Nom. Thickness	1.35 mm (0.0531 in)
Nom. Diameter	12.5 mm (0.492 in)

Electrical Characteristics

Electricals

Nom. Conductor DCR	78.7 Ohm/km (24.0 Ohm/1000ft)
Nom. Inner Shield DCR	59.1 Ohm/km (18.0 Ohm/1000ft)
Nom. Capacitance Cond-to-Cond	41 pF/m (12 pF/ft)
Nom. Capacitance Cond-to-Other (Conds + Shield)	76.1 pF/m (23.2 pF/ft)
Nom. Characteristic Impedence	100 Ohm
Max. Current	1 A

High Frequency (Nominal/Typical)

Frequency	Nom. Insertion Loss (Attenuation) [dB/100m]
2 MHz	4.63
3 MHz	5.35
4 MHz	5.91
5 MHz	6.5
6 MHz	6.89
11 MHz	9.15
12 MHz	9.51
24 MHz	13.16

Mechanical Characteristics

Temperature

Installation	-15°C To +80°C
Storage	-45°C To +80°C

Bend Radius

Installation Min.	187.5 mm (7.382 in)

Standards and Compliance

Environmental Suitability	Indoor Indoor/Outdoor Outdoor Indoor/Outdoor - Euroclass Eca, Sunlight Resistance, Oil Resistance - IRM 902 70°Cx4h, Oil Resistance - IEC 60811-404
Flammability / Reaction to Fire	IEC 60332-3-24
CENELEC Compliance	EN 50290-2-20
European Halogen Free Standards	IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 2.5 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3, IEC 61034-2 - Smoke Density Min. Transmittance = 60%
