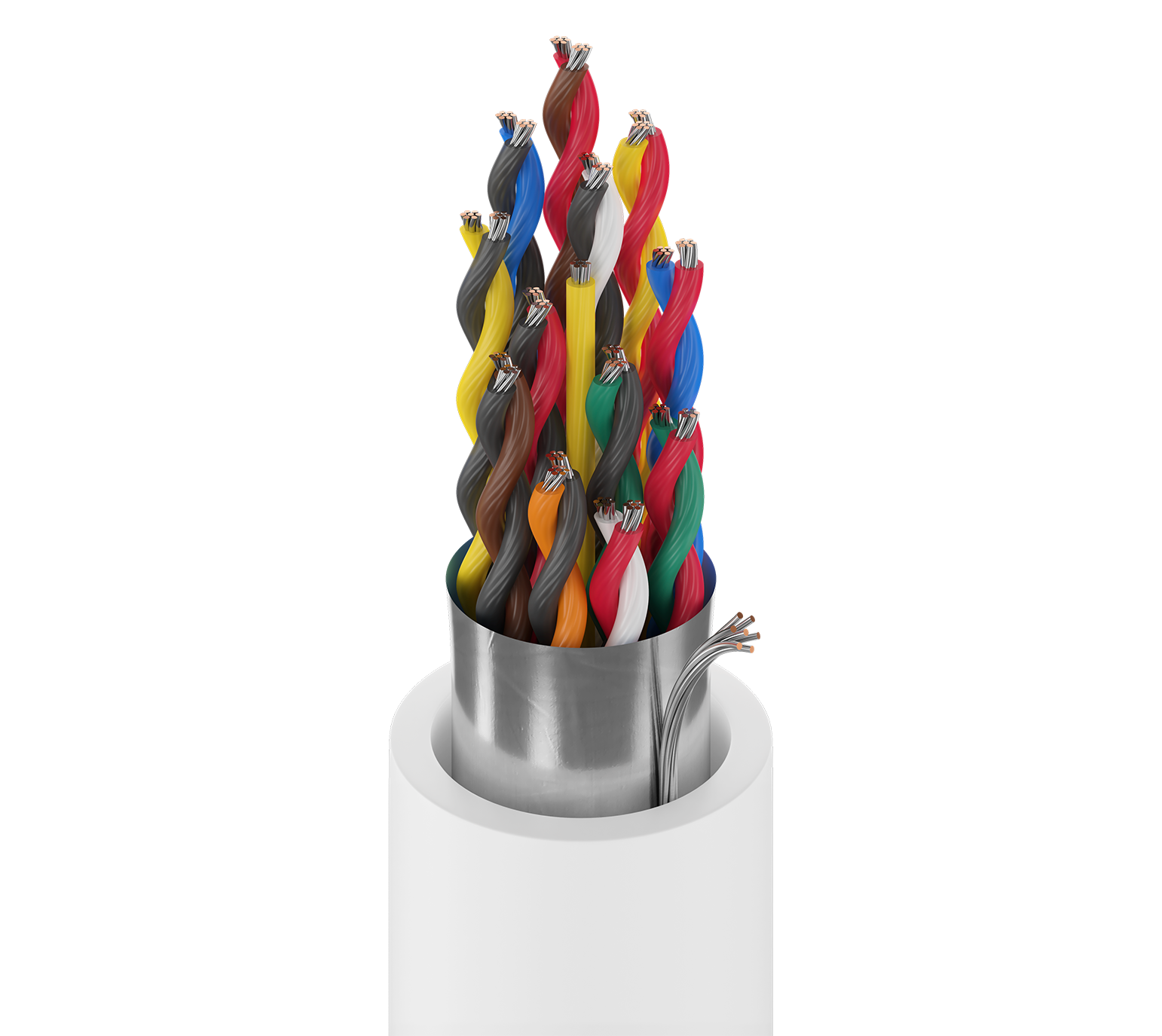

Product Number: 82512

RS-232, #24-12.5pr, FEP, O/A Foil, LS-PVC Jkt, CMP

Computer EIA RS-232 Cable, 12.5-Pair, 24 AWG stranded (7x32) tinned copper conductors, FEP insulation, overall Beldfoil® shield (100% coverage), 24 AWG stranded tinned copper drain wire, Flamarrest® jacket, plenum rated.

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

82512 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	UPC	Footnote	Order
82512 8771000	Natural	612825197270	C	Order online

Specifications

Product Overview

Suitable Applications	indoor plenum applications; RS-232 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, ...); line level audio; panel wiring

Construction Details

Overall Cable Diameter (Nominal)	0.278 in (7.06 mm)

Conductor

Element	No. of Elements	Size	Stranding	Material
Pair(s)	12	24 AWG	7x32	TC - Tinned Copper
Conductor(s)	1	24 AWG	7x32	TC - Tinned Copper

Insulation

Element	Material	Nom. Thickness	Nom. Insulation Diameter	Color Code
Pair(s)	FEP - Fluorinated Ethylene Propylene	0.006 in (0.15 mm)	0.036 in (0.91 mm)	Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red & White, Red & Green, Red & Blue, Red & Yellow, Red & Brown, Yellow
Conductor(s)	FEP - Fluorinated Ethylene Propylene	0.006 in (0.15 mm)	0.036 in (0.91 mm)	Yellow

Outer Shield

Shield Type	Tape
Material	Bi-Laminate (Alum+Poly)
Coverage	100%
Drainwire Type	24 AWG (7x32) TC

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.015 in (0.38 mm)
Nom. Diameter	0.278 in (7.06 mm)

Electrical Characteristics

Nom Outer Shield DCR	15 Ohm/1000ft (49 Ohm/km)

Electricals

Element	Pair(s)
Nom. Conductor DCR	24.1 Ohm/1000ft
Nom. Capacitance Cond-to-Cond	23 pF/ft (75 pF/m)
Nom. Capacitance Cond-to-Other (Conds + Shield)	42 pF/ft (140 pF/m)
Nom. Inductance	0.17 μH/ft (0.56 μH/m)
Max. Current	1.5 Amps per Conductor at 25oC

High Frequency (Nominal/Typical)

Nom. Insertion Loss (Attenuation)	22 dB/100m

Voltage

UL Voltage Rating	300 V (CMP)

Mechanical Characteristics

Max. Pull Tension	143 lbs (64.9 kg)
Bulk Cable Weight	56 lbs/1000ft

Temperature

UL Temperature	60°C
Operating	0°C to +60°C

Bend Radius

Stationary Min.	2.8 in (71 mm)
Installation Min.	2.8 in (71 mm)

Standards and Compliance

Environmental Suitability	Indoor - Plenum, Indoor
Flammability / Reaction to Fire	NFPA 262, UL 910 (Plenum), FT6
CPR Compliance	CPR Euroclass: Eca
NEC / UL Compliance	Article 800, CMP
CEC / C(UL) Compliance	CMP.
European Directive Compliance	EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance	UKCA Mark
APAC Compliance	China RoHS II (GB/T 26572-2011)
