Lead Wire, #8 Str BC, PVC Ins, AWM 1017
UL AWM ST1017 VW1 8AWG/NX41B CSA TEW FT1
- Availability
- EMEA
- Status
- Active
- Orderable items
- 4
Part numbers
BE41339 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | EAN | Order |
|---|---|---|---|---|---|
| BE41339.041400 | Blue | Reel | 1,400 m | 8719605025678 | Order online |
| BE41339.031400 | Red | Reel | 1,400 m | 8719605025661 | Order online |
| BE41339.01500 | Yellowgreen | Reel | 500 m | 8719605025630 | Order online |
| BE41339.011400 | Yellowgreen | Reel | 1,400 m | 8719605025623 | Order online |
Specifications
Product Overview
| Suitable Applications | UL Appliance Wiring Material Subject 758 Style 1017, 80C, 600 volt, VW-1, oil 60C; CSA Equipment wires C22.2 no. 127 Type TEW, 105C, 600V, FT1, oil 60C |
|---|

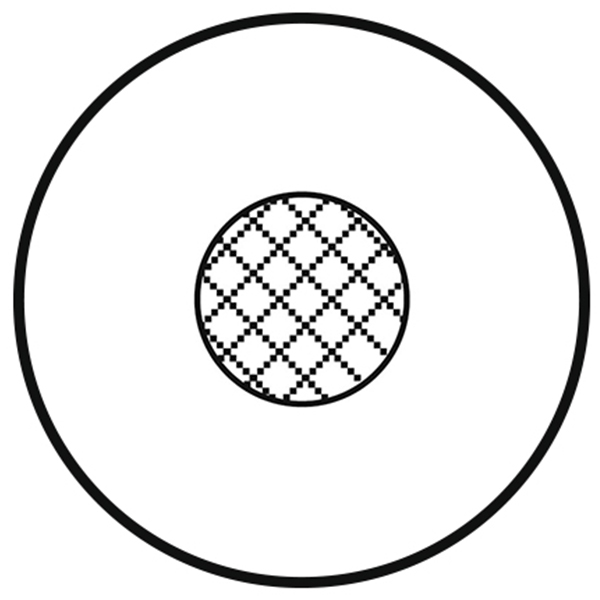

Construction Details
Conductor
| Size | 8 AWG |
|---|---|
| Stranding | Stranded |
| Material | BC - Bare Copper |
| Notes | Construction: 2156x0.071 |
Insulation
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 1.19 mm (0.0469 in) |
| Nom. Insulation Diameter | 7.5 mm (0.30 in) |
Electrical Characteristics
Electricals
| Max. Conductor DCR | 2.23 Ohm/km |
|---|
Voltage
| UL Voltage Rating | 600 V |
|---|
Mechanical Characteristics
Temperature
| UL Temperature | 80°C (CSA 105°C) |
|---|
Standards and Compliance
| Environmental Suitability | Indoor, Oil Resistance |
|---|---|
| Flammability / Reaction to Fire | VW-1 |
| AWM Compliance | AWM 1017, TEW |
History
| Update and Revision | Revision Number: 0.172 Revision Date: 02-20-2026 |
|---|
