Lead Wire, #20 Str TC, PVC Ins, AWM 1007
UL AWM ST1007 VW1 24AWG/7x32T CSA TR 64
- Availability
- EMEA
- Status
- Active
- Orderable items
- 12
Part numbers
BE41201 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | Order |
|---|---|---|---|---|
| BE41201.003600 | Black | Reel | 3,600 m | Order online |
| BE41201.0020K | Black | Reel | 20,000 m | Order online |
| BE41201.101350 | Blue | Reel | 1,350 m | Order online |
| BE41201.103600 | Blue | Reel | 3,600 m | Order online |
| BE41201.043600 | Brown | Reel | 3,600 m | Order online |
| BE41201.083600 | Gray | Reel | 3,600 m | Order online |
| BE41201.053600 | Green | Reel | 3,600 m | Order online |
| BE41201.063600 | Orange | Reel | 3,600 m | Order online |
| BE41201.093600 | Pink | Reel | 3,600 m | Order online |
| BE41201.073600 | Red | Reel | 3,600 m | Order online |
| BE41201.013600 | White | Reel | 3,600 m | Order online |
| BE41201.023600 | Yellow | Reel | 3,600 m | Order online |
Specifications
Product Overview
| Suitable Applications | UL Appliance Wiring Material Subject 758 Style 1007, 80C, 300 Volt.; CSA-C22.2 no. 16 Type TR-64 90C, 600 Volt peak. |
|---|

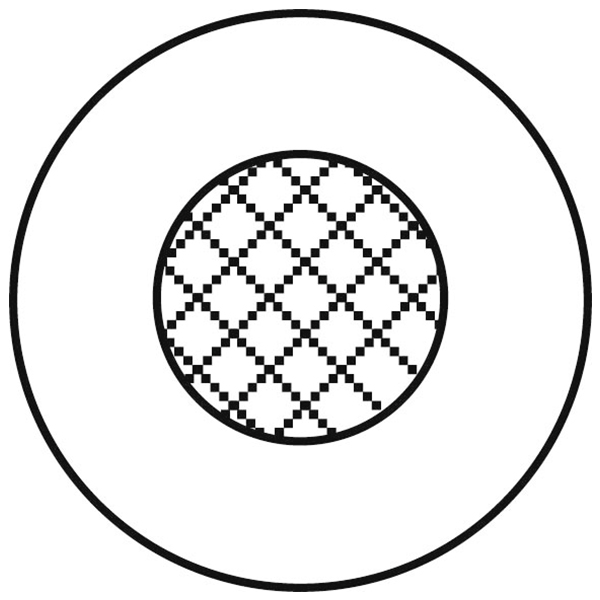

Construction Details
Conductor
| Size | 24 |
|---|---|
| Stranding | Stranded |
| Material | TC - Tinned Copper |
Insulation
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.38 mm (0.015 in) |
| Nom. Insulation Diameter | 1.44 mm (0.0567 in) |
Electrical Characteristics
Electricals
| Max. Conductor DCR | 83.9 Ohm/km |
|---|
Voltage
| UL Voltage Rating | 300 V |
|---|
Mechanical Characteristics
Temperature
| UL Temperature | 80°C |
|---|
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Flammability / Reaction to Fire | VW-1 |
| AWM Compliance | AWM 1007 |
| European Directive Compliance | EU CE Mark |
History
| Update and Revision | Revision Number: 0.167 Revision Date: 09-07-2025 |
|---|
