Product Number: 9R28014

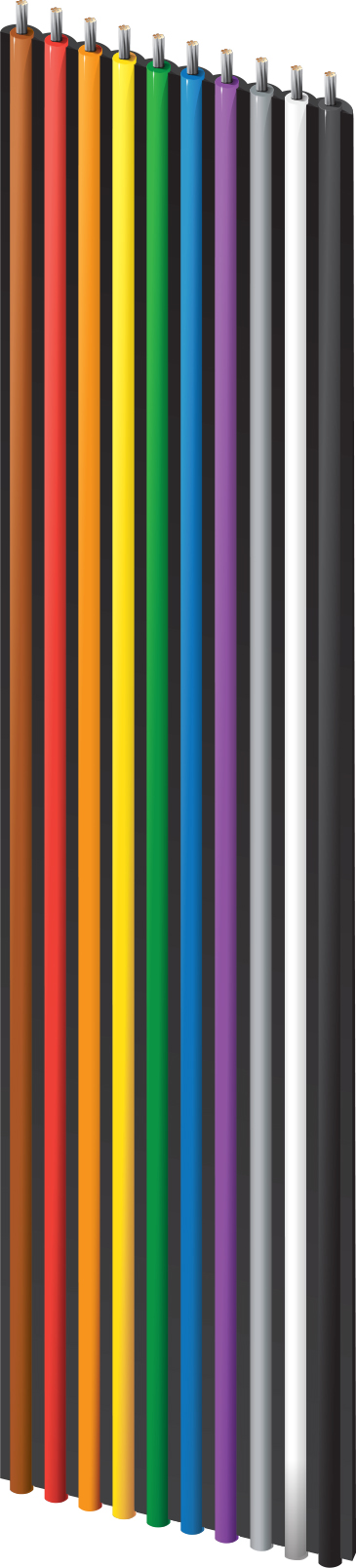

Rainbow Ribbon Cable .050" Pitch, 9R280XX Series, #28-14c, PVC Ins

Rainbow Ribbon Cable .050" Pitch, 9R280XX Series, 14 Conductor, 28 AWG (7x36) Tinned Copper, PVC Insulated Conductors on PVC Substrate

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

9R28014 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Put-Up Type	Length	UPC	Order
9R28014 000100	None	Reel	100 ft	612825221821	Order online

Specifications

Product Overview

Suitable Applications	Internal interconnection, internal wiring of electronic equipment, color-coded for quick identification & circuit tracing, easy breakouts for circuit routing, designed for mass-termination with standard IDC connectors

Physical Characteristics (Overall)

Conductor Count	14

Conductor

AWG	28
Stranding	7x36
Material	TC - Tinned Copper

Insulation

Material	PVC - Polyvinyl Chloride
Nominal Wall Thickness	0.010 in

Color Chart

Number	Color
1	Brown
2	Red
3	Orange
4	Yellow
5	Green
6	Blue
7	Purple
8	Gray
9	White
10	Black
Over 10 conductors	Repeat as required

Construction and Dimensions

Conductor Spacing	.050 +/- .003 in
Conductor Spacing Center-Center Outside	.650 +/- .006 in
Substrate Thickness and Material	.010 in, Clear PVC
OuterJacket1, Nominal Width	.700 +/- .006 in
OuterJacket1, Nom Thick Flat Section	0.036 in

Electrical Characteristics

Min Insulation Resistance	10,000 MOhm
High Frequency Table (Nominal/Typical) Notes	GS=Ground-Signal Mode; GSG=Ground-Signal-Ground Mode

Conductor DCR

Nominal Conductor DCR	68.2 Ohm/1000ft

Capacitance

Element	Nom. Capacitance Conductor to Conductor
@ 1 kHz (GSG)	18 pF/ft
@ 1 MHz (GS)	10 pF/ft
@ 1 MHz (GSG)	15 pF/ft

Inductance

Element	Nominal Inductance
@ 1 MHz (GS)	0.29 μH/ft
@ 1 MHz (GSG)	0.2 μH/ft

Impedance

Nominal Balanced Characteristic Impedance Description	Nominal Characteristic Impedance	Nominal Characteristic Impedance Description
(GS)	150 Ohm	(GS)
(GSG)	105 Ohm	(GSG)

High Frequency (Nominal/Typical)

Frequency [MHz]	Nom. Insertion Loss
10 MHz	2.8 dB/100ft
20 MHz	4.8 dB/100ft
30 MHz	6.5 dB/100ft
40 MHz	8.3 dB/100ft
50 MHz	9.8 dB/100ft
60 MHz	12 dB/100ft
70 MHz	13 dB/100ft
80 MHz	14 dB/100ft
90 MHz	15.8 dB/100ft
100 MHz	17 dB/100ft

Delay

Nominal Delay	1.40 ns/ft
Nominal Velocity of Propagation (VP) [%]	72%

Unbalanced Crosstalk

Element	Typical Unbalanced NEXT %	Typical Unbalanced FEXT %	Typical Cross Talk Pulse Rise Time (ns)
10 ft. sample length	4.8	7	3 ns
10 ft. sample length	3.5	4.7	5 ns
10 ft. sample length	3	3	7 ns

Current

Max. Recommended Current [A]	1 Amp per Conductor at 20oC

Voltage

Dielectric Withstand Voltage	2000 V
UL Voltage Rating	300 V

Temperature Range

Operating Temperature Range	-20°C to +105°C

Mechanical Characteristics

Bulk Cable Weight	17 lbs/1000ft
Minimum Minor Axis Bend Radius	0.5 in

Standards

UL AWM Style Compliance	AWM 20932

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV)	Yes
EU Directive 2003/11/EC (BFR)	Yes
EU Directive 2011/65/EU (RoHS 2)	Yes
EU Directive 2012/19/EU (WEEE)	Yes
EU Directive 2015/863/EU (RoHS 2 amendment)	Yes
EU Directive Compliance	Yes
EU CE Mark	Yes
CA Prop 65 (CJ for Wire and Cable)	Yes
MII Order #39 (China RoHS)	Yes
