Product Number: 9L28310

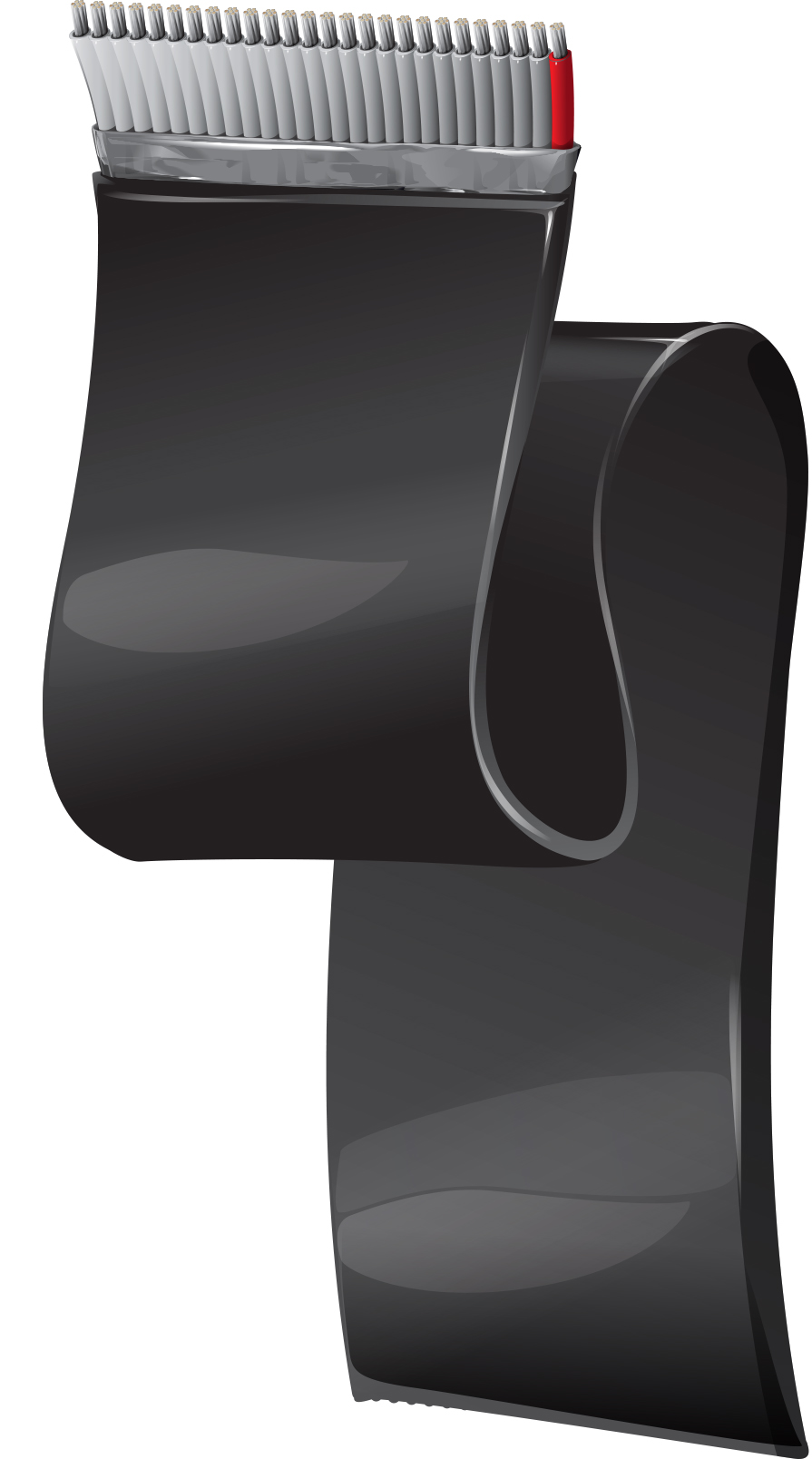

Shielded Flat Ribbon Cable .050" Pitch, 9L283XX Series, #28-10c, PVC Ins, O/A Foil Tape, PVC Jacket

Shielded Flat Ribbon Cable .050" Pitch, 9L283XX Series, 10 Conductor, 28 AWG (7x36) Tinned Copper, Gray PVC Insulation, Beldfoil® Tape, Black PVC Jacket

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

9L28310 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
9L28310 010100	Black	Reel	100 ft	612825221739	E	Order online

Specifications

Product Overview

Suitable Applications	Internal interconnection, internal wiring of electronic equipment, reliable mass-termination to standard IDC connectors, noisy evnvironments

Construction Details

Conductor Spacing Center-Center	.050 +/- .002 in
Conductor Spacing Center-Center Outside	.450 +/- .008 in

Conductor

Size	28
Stranding	7x36
Material	TC - Tinned Copper

Insulation

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.010 in (0.25 mm)
Color Code	Gray

Outer Shield

Shield Type	Tape
Material	Bi-Laminate (Alum+Poly)
Coverage	100%

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.038 in (0.97 mm)

Electrical Characteristics

High Frequency Table (Nominal/Typical) Notes	GSG=Ground-Signal-Ground Mode

Electricals

Nom. Conductor DCR	Nom. Capacitance Cond-to-Cond	Nom. Characteristic Impedence	Nom. Delay	Nom. Inductance	Nom. Velocity of Prop.	Max. Current
68.2 Ohm/1000ft (224 Ohm/km)	70 pF/ft (230 pF/m)	45 Ohm	1.7 ns/ft	0.11 μH/ft (0.36 μH/m)	60%	1 Amp per Conductor at 20oC
	50 pF/ft (160 pF/m)

Unbalanced Crosstalk

Element	Typical Unbalanced NEXT %	Typical Unbalanced FEXT %	Typical Cross Talk Pulse Rise Time
10 ft. sample length with ground connected to shield	1.5	2	3 ns
10 ft. sample length with ground connected to shield	0.9	1.5	5 ns
10 ft. sample length with ground connected to shield	0.7	1.2	7 ns

High Frequency (Nominal/Typical)

Frequency [MHz]	Nom. Insertion Loss (Attenuation)
10	6 dB/100ft
20	9.5 dB/100ft
30	12.5 dB/100ft
40	14.9 dB/100ft
50	17.2 dB/100ft
60	19 dB/100ft
70	21.5 dB/100ft
80	23 dB/100ft
90	24.5 dB/100ft
100	26 dB/100ft

Voltage

UL Voltage Rating	300 V

Mechanical Characteristics

Bulk Cable Weight	47 lbs/1000ft (70 kg/km)

Temperature

Operating	-20°C to +105°C

Bend Radius

Installation Min.	1.75 in (44.5 mm)

Standards and Compliance

Environmental Suitability	Indoor
Flammability / Reaction to Fire	VW-1
AWM Compliance	AWM 20081, II A
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
