Product Number: RMH1C95

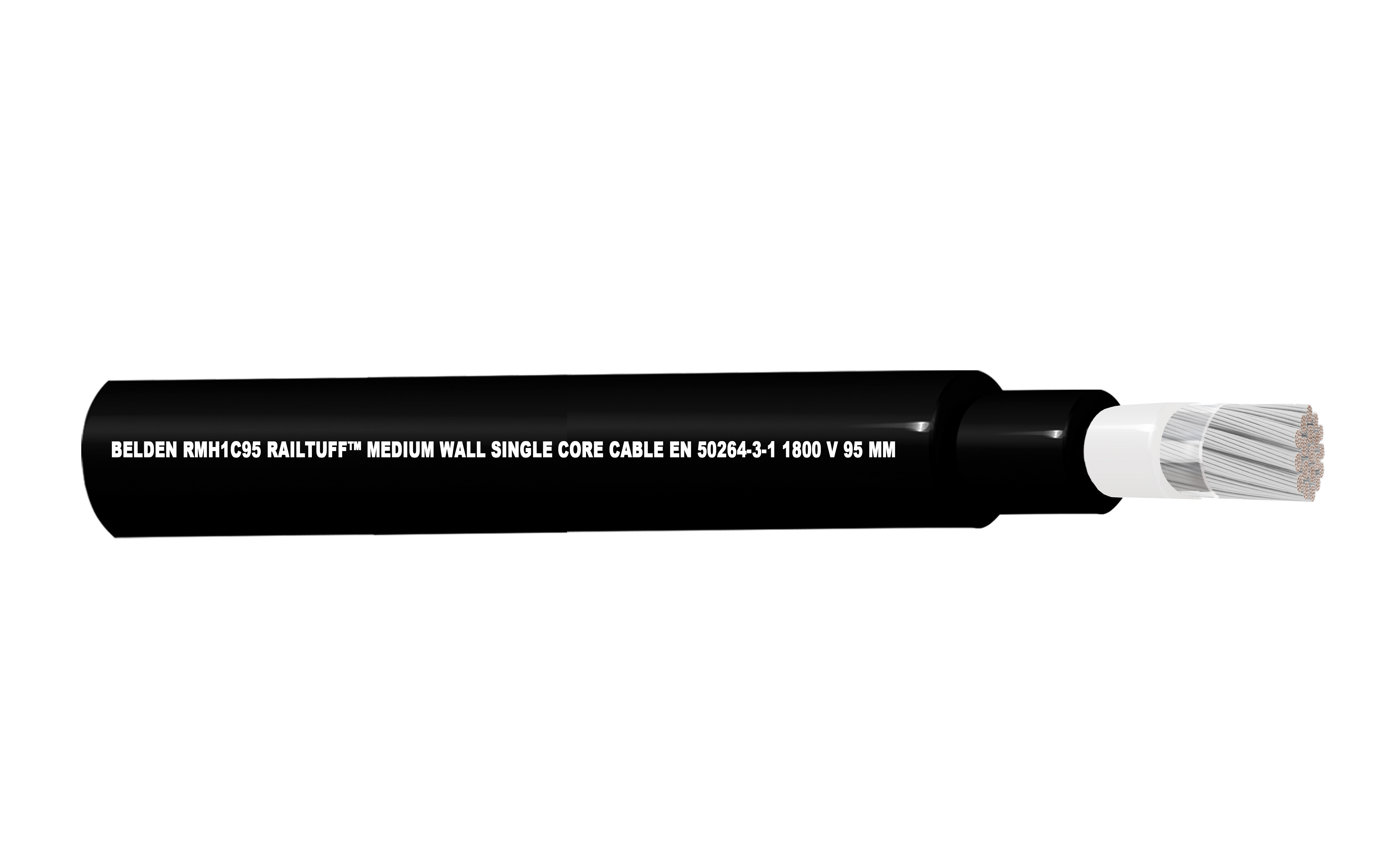

RailTuffTM Medium wall single core cable EN 50264-3-1 1800V MM 1 Core 95 mm2 Str TC, XLPO Ins, XLPO Jacket

Name: Belden RMH1C95
Brand: Belden
SKU: RMH1C95

RailTuffTM Medium wall single core cable EN 50264-3-1 1800V MM 1 Core 95 mm2 Stranded Tinned Copper, XLPO Insulation, XLPO Sheathed Cable

Ships from and sold by A5 IT.

Specifications

Suitable Applications	For use in electric appliances as well as internal wiring of control panels in rail vehicles as fixed wiring, or wiring where limited flexing in operation is encountered. Typical uses are lighting circuits powered by accumulators, equipment control and monitoring circuit, auxiliary and electric heating circuits.

Overall Cable Diameter (Nominal)	20.1 ± 0.60 mm

Element	Material	Nom. Thickness	Nom. Insulation Diameter	Color Code
Conductor(s)	XLP, XLPO, XLPE	2.2 mm (0.087 in)	17.7 mm (0.697 in)	White
	XLP, XLPO, XLPE			Black

Material	XLP, XLPO, XLPE
Nom. Thickness	1.0 mm (0.039 in)

Electricals Table Notes	Dielectric strength on core in water for 1 hour (kVac): ≧ 10, D.C. stability at 4.5kVdc in 3% NaCl solution at (85±2)°C for 240h : No breakdown

Voltage Rating	1800/3000V
Breakdown Voltage	6.5kVac/5min

Bulk Cable Weight	1035.0 kg/km (695.49 lbs/1000ft)

Operating	-40°C to +90°C

Stationary Min.	101 mm (3.98 in)
Installation Min.	80 mm (3.1 in)

Flammability / Reaction to Fire	IEC 60332-1-2, IEC 60332-3-24
ISO/IEC Compliance	IEC 60228
CENELEC Compliance	EN 50264-3-1, EN 45545-2
European Halogen Free Standards	IEC 60754-1 - Halogen Amount = HCI+HBr ≤ 0.5%, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3
Other Standard Compliance(s)	TJ/CL 313
