Product Number: RMG1C6

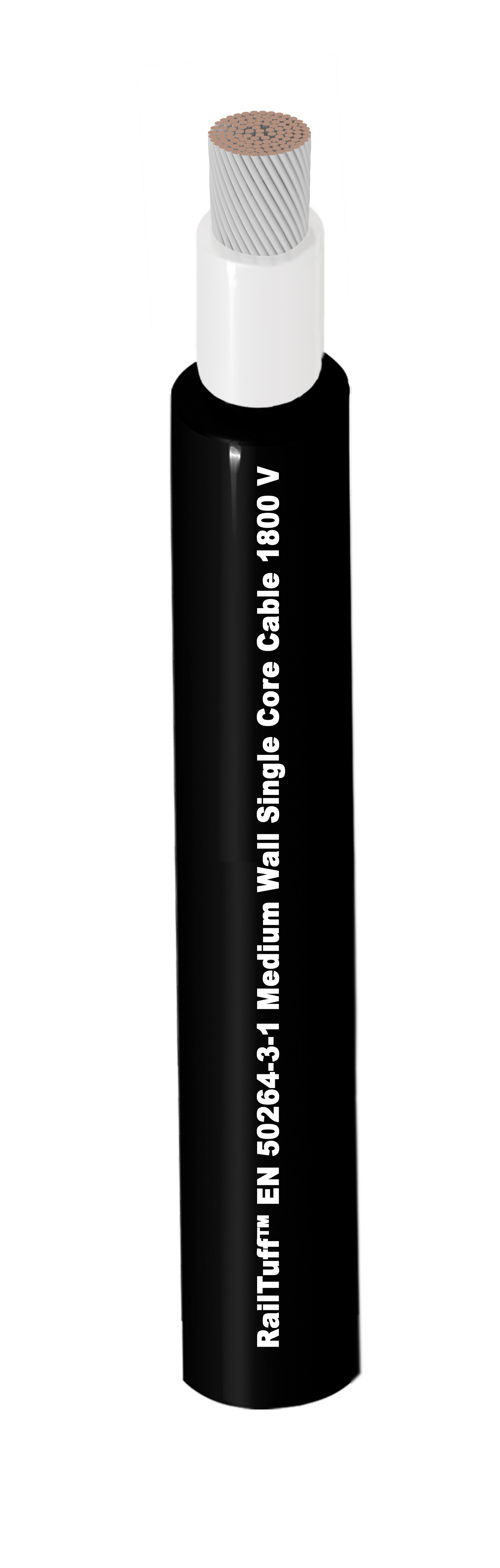

RailTuffTM Medium wall cable 1800V 1 C 6 mm2 Str TC,XLPO Ins

Name: Belden RMG1C6
Brand: Belden
SKU: RMG1C6

RailTuffTM Medium wall cable 1800V 1 Core 6 mm2 Stranded Tinned Copper, XLPO Insulation

Ships from and sold by A5 IT.

Specifications

Suitable Applications	Applicable for fixed or moderate flexing wiring inside Railway Rolling Stock like High-Speed Trains (CRH, Shinkansen, ICE, TGV), Metro, locomotives, and trolley buses, etc

Overall Cable Diameter (Nominal)	7.3 ± 0.20 mm

Electricals Table Notes	D.C. stability at 4.5kVdc in 3% NaCl solution at (85±2)°C for 240h : No breakdown
Voltage Rating Table Notes	Dielectric strength on core in water for 1 hour (kVac): ≧ 10

Voltage Rating	1800/3000V
Breakdown Voltage	6.5kVac/5min

Bend Radius Table Notes	Bending test at -40°C: No crack
Bulk Cable Weight	101.0 kg/km (67.87 lbs/1000ft)

Operating	-40°C to +90°C

Stationary Min.	29 mm (1.1 in)
Installation Min.	22 mm (0.87 in)

Flammability / Reaction to Fire	IEC 60332-1-2, IEC 60332-2-25
ISO/IEC Compliance	IEC 60228
CENELEC Compliance	EN 50264-3-1, EN 45545-2
European Halogen Free Standards	IEC 60754-1 - Halogen Amount = HCI+HBr ≤ 0.5%, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3
Other Standard Compliance(s)	TJ/CL 313
