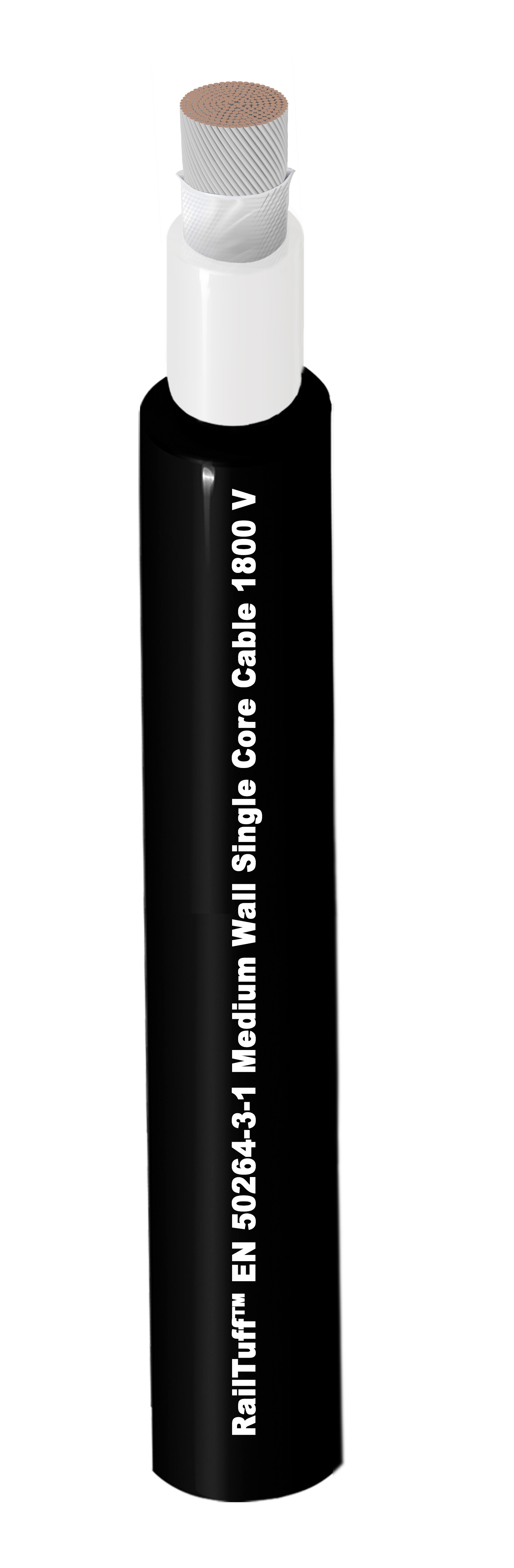

RailTuffTM Medium wall cable 1800V 1 C 35 mm2 Str TC,XLPO Ins
RailTuffTM Medium wall cable 1800V 1 Core 35 mm2 Stranded Tinned Copper, XLPO Insulation
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | Applicable for fixed or moderate flexing wiring inside Railway Rolling Stock like High-Speed Trains (CRH, Shinkansen, ICE, TGV), Metro, locomotives, and trolley buses, etc |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 12.1 ± 0.25 mm |
|---|
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 1 |
| Size | 35 mm2 |
| Stranding | 257x0.40 mm |
| Stranding Class | Class 5 |
| Material | TC - Tinned Copper |
Insulation
| Element | Conductor(s) |
|---|---|
| Material | XLP, XLPO, XLPE |
| Nom. Thickness | 2 mm (0.079 in) |
| Color Code | White, Black |
Electrical Characteristics
| Electricals Table Notes | D.C. stability at 4.5kVdc in 3% NaCl solution at (85±2)°C for 240h : No breakdown |
|---|---|
| Voltage Rating Table Notes | Dielectric strength on core in water for 1 hour (kVac): ≧ 10 |
Voltage
| Voltage Rating | 1800/3000V |
|---|---|
| Breakdown Voltage | 6.5kVac/5min |
Mechanical Characteristics
| Bend Radius Table Notes | Bending test at -40°C: No crack |
|---|---|
| Bulk Cable Weight | 401 kg/km (269 lbs/1000ft) |
Temperature
| Operating | -40°C to +90°C |
|---|
Bend Radius
| Stationary Min. | 61 mm (2.4 in) |
|---|---|
| Installation Min. | 48 mm (1.9 in) |
Standards and Compliance
| Flammability / Reaction to Fire | IEC 60332-1-2, IEC 60332-3-24 |
|---|---|
| ISO/IEC Compliance | IEC 60228 |
| CENELEC Compliance | EN 50264-3-1, EN 45545-2 |
| European Halogen Free Standards | IEC 60754-1 - Halogen Amount = HCI+HBr ≤ 0.5%, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3 |
| Other Standard Compliance(s) | TJ/CL 313 |
Product Notes
| Notes | EMEA PN: RMG1C35; |
|---|
History
| Update and Revision | Revision Number: 0.32 Revision Date: 07-05-2024 |
|---|
