Product Number: RMG1C1.5

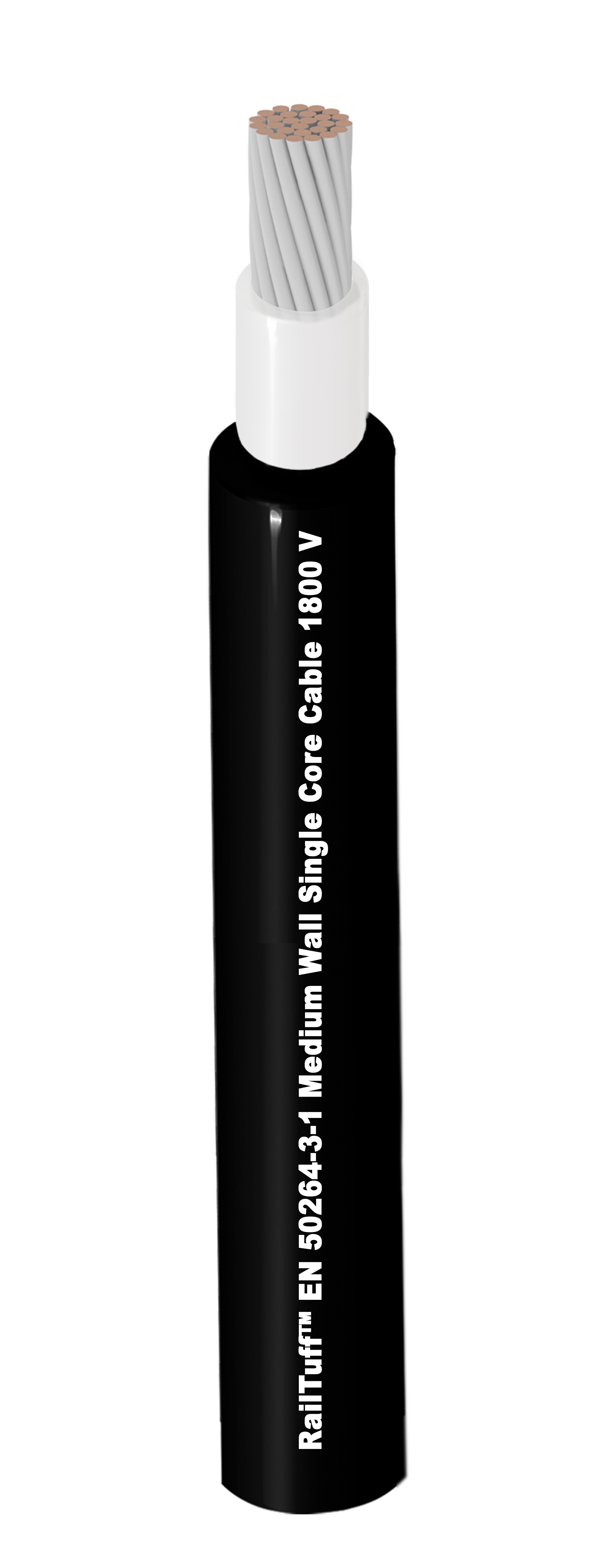

RailTuffTM Medium wall cable 1800V 1 C 1.5 mm2 Str TC,XLPO Ins

Name: Belden RMG1C1.5
Brand: Belden
SKU: RMG1C1.5

RailTuffTM Medium wall cable 1800V 1 Core 1.5 mm2 Stranded Tinned Copper, XLPO Insulation

Ships from and sold by A5 IT.

Specifications

Suitable Applications	Applicable for fixed or moderate flexing wiring inside Railway Rolling Stock like High-Speed Trains (CRH, Shinkansen, ICE, TGV), Metro, locomotives, and trolley buses, etc

Overall Cable Diameter (Nominal)	5.7 ± 0.15 mm

Electricals Table Notes	D.C. stability at 4.5kVdc in 3% NaCl solution at (85±2)°C for 240h : No breakdown
Voltage Rating Table Notes	Dielectric strength on core in water for 1 hour (kVac): ≧ 10

Voltage Rating	1800/3000V
Breakdown Voltage	6.5kVac/5min

Bend Radius Table Notes	Bending test at -40°C: No crack
Bulk Cable Weight	48.0 kg/km (32.3 lbs/1000ft)

Operating	-40°C to +90°C

Stationary Min.	23 mm (0.91 in)
Installation Min.	17 mm (0.67 in)

Flammability / Reaction to Fire	IEC 60332-1-2, EN 50305
ISO/IEC Compliance	IEC 60228
CENELEC Compliance	EN 50264-3-1, EN 45545-2
European Halogen Free Standards	IEC 60754-1 - Halogen Amount = HCI+HBr ≤ 0.5%, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3
Other Standard Compliance(s)	TJ/CL 313
