Product Number: C5621

Teck90 1000V, 3+G C #2+6 Str BC, XLPE Ins M4, PVC Jkt, AIA Armor, Blk PVC Jkt, CSA HL SUN RES -40C

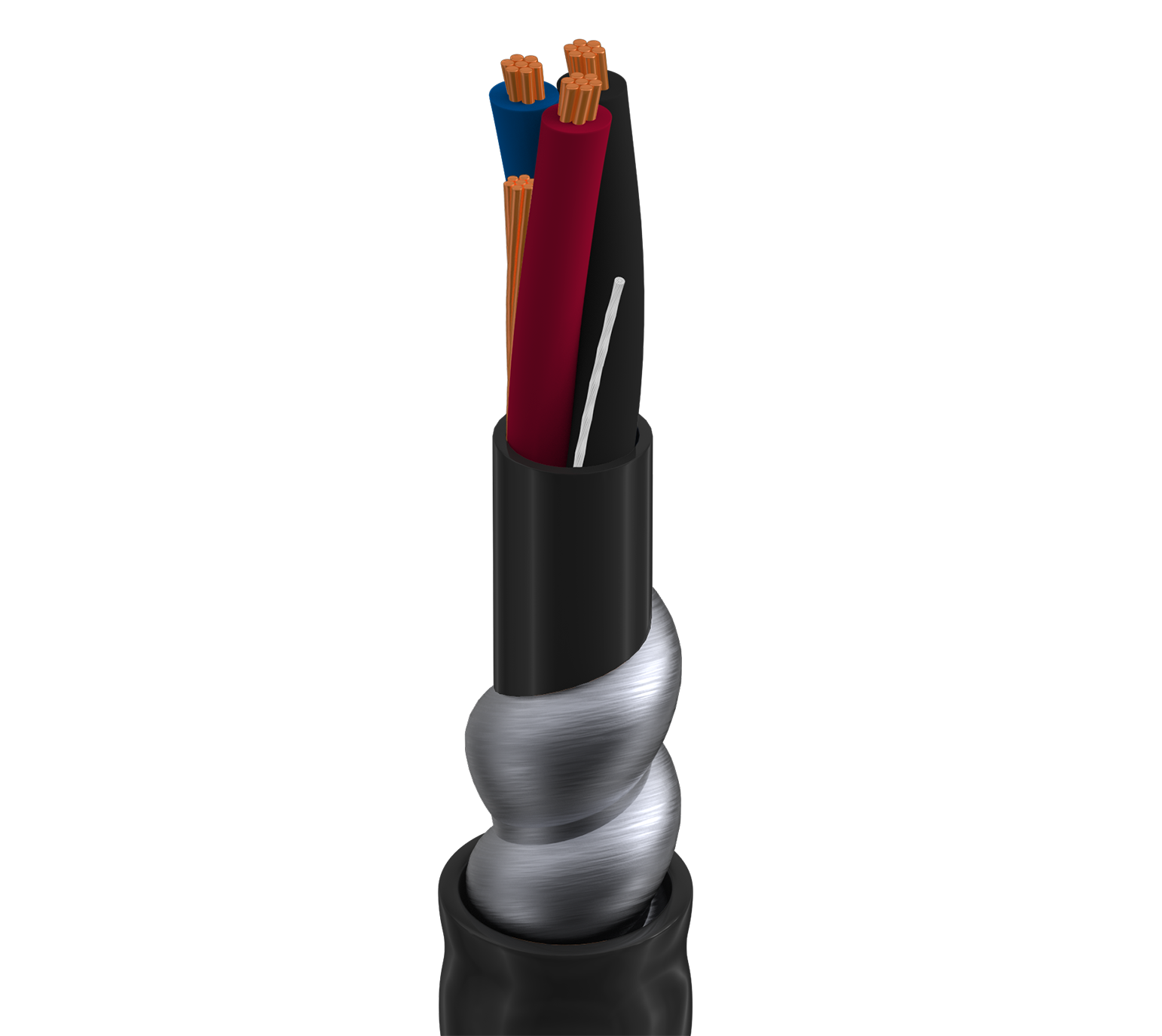

Teck90 1000V, 3+G Conductor 2+6AWG (7x10H) Bare Copper, XLPE Insulation M4 Color Code, PVC Inner Jacket, Aluminum Interlock Armor, Black PVC Outer Jacket, CSA HL SUN RES -40C

Availability: Global
Status: Active

Ships from and sold by A5 IT.

Specifications

Product Overview

Suitable Applications	Power and Control Applications up to 1000V

Construction Details

Conductor

Element	No. of Elements	Size	Stranding	Material
Conductor(s)	3	2	7x10	BC - Bare Copper
Ground	1	6	7x14	BC - Bare Copper

Insulation

Material	XLP, XLPO, XLPE (Thermoset)
Nom. Thickness	0.06 in (1.5 mm)
Nom. Insulation Diameter	0.405 in (10.3 mm)
Color Code	Black, Red, Blue

Inner Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.083 in (2.1 mm)
Nom. Diameter	1.039 in (26.39 mm)

Armor

Armor Type & Material	AIA - Aluminum Interlock Armor
Diameter Over Armor	1.299 in (32.99 mm)

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.048 in (1.2 mm)
Nom. Diameter	1.395 in (35.43 mm)
Ripcord	Yes

Electrical Characteristics

Electricals

Element	Nom. Conductor DCR	Max. Current
Conductor(s)	0.16 Ohm/1000ft	130 Amps per Conductor at 30oC
Ground	0.411 Ohm/1000ft (1.35 Ohm/km)

Voltage

Voltage Rating	1000 V (TECK 90)

Mechanical Characteristics

Max. Pull Tension	2871.7 lbs (1302.6 kg)
Bulk Cable Weight	1262lbs/1000ft

Temperature

UL Temperature	90°C
Operating	-40°C To +90°C
Installation	-25°C To +90°C

Bend Radius

Stationary Min.	11.16 in (283.5 mm)
Installation Min.	11.16 in (283.5 mm)

Standards and Compliance

Environmental Suitability	Indoor, Outdoor, Sunlight Resistance, UV Resistance, Burial
Flammability / Reaction to Fire	FT4
CEC / C(UL) Compliance	TECK 90, HL.
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
