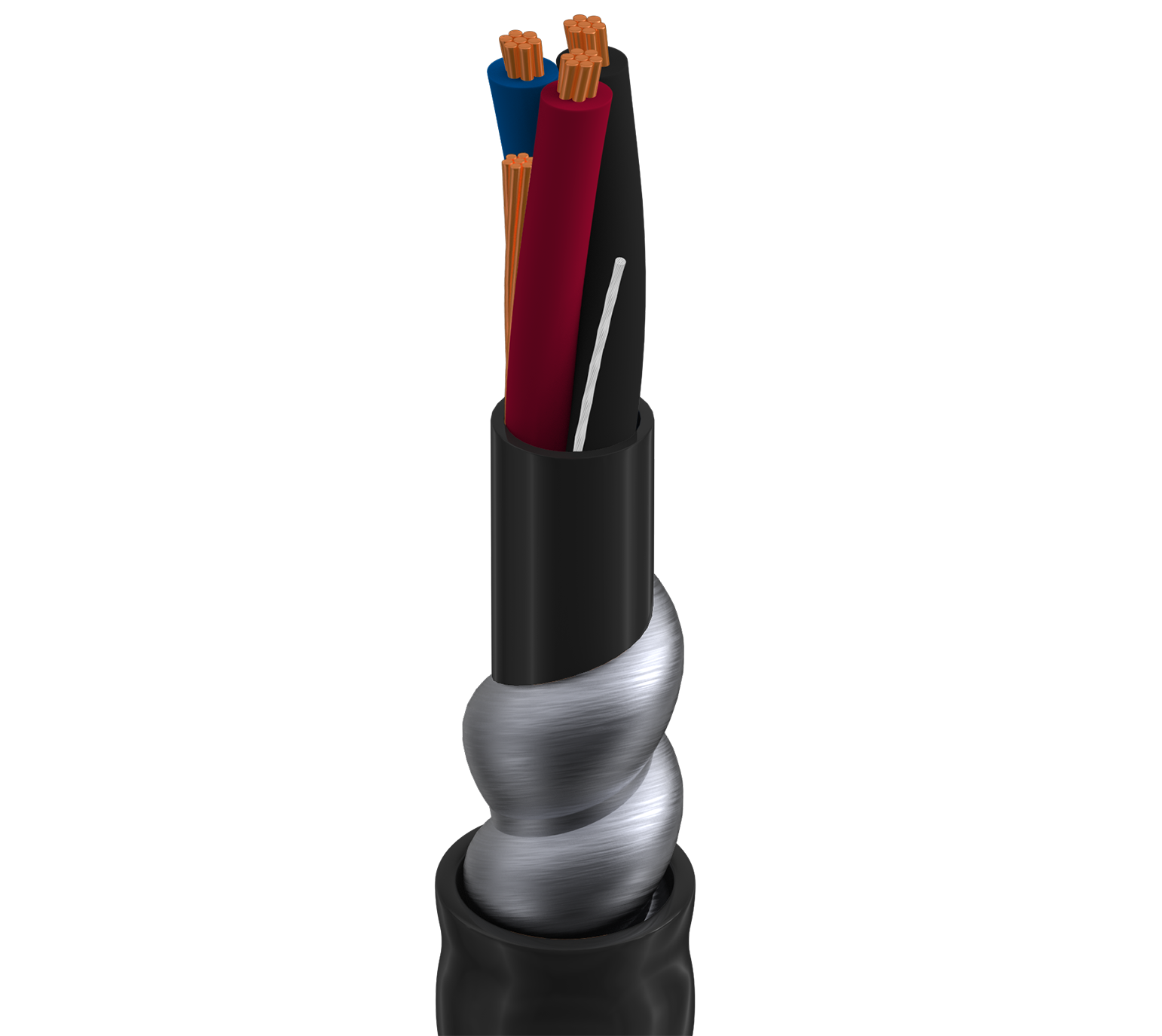

Teck90 1000V, 3+G C #3+6 Str BC, XLPE Ins M4, PVC Jkt, AIA Armor, Blk PVC Jkt, CSA HL SUN RES -40C
Teck90 1000V, 3+G Conductor 3+6AWG (7x11H) Bare Copper, XLPE Insulation M4 Color Code, PVC Inner Jacket, Aluminum Interlock Armor, Black PVC Outer Jacket, CSA HL SUN RES -40C
- Availability
- Global
- Status
- Active
- Orderable items
- 7
Part numbers
C5611 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Putup Type | UPC | Order |
|---|---|---|---|
| C5611 0102460 | Reel | 612825283850 | Order online |
| C5611 0103281 | Reel | — | Order online |
| C5611 0104920 | Reel | 612825283867 | Order online |
| C5611 0105000 | Reel | — | Order online |
| C5611 010984 | Reel | — | Order online |
| C5611 0101640 | Reel | — | Order online |
| C5611 0102500 | Reel | — | Order online |
Specifications
Information
| Put-Up Type | Reel |
|---|---|
| Update and Revision | Revision Number: 0.200 Revision Date: 02-20-2026 |
Product Overview
| Suitable Applications | Power and Control Applications up to 600V |
|---|
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 3 | 3 | 7x11 | BC - Bare Copper |
| Ground | 1 | 6 | 7x14 | BC - Bare Copper |
Insulation
| Material | XLP, XLPO, XLPE (Thermoset) |
|---|---|
| Nom. Thickness | 0.061 in (1.5 mm) |
| Nom. Insulation Diameter | 0.373 in (9.47 mm) |
| Color Code | Black, Red, Blue |
Inner Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.083 in (2.1 mm) |
| Nom. Diameter | 0.970 in (24.6 mm) |
Armor
| Armor Type & Material | AIA - Aluminum Interlock Armor |
|---|---|
| Diameter Over Armor | 1.230 in |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.048 in (1.2 mm) |
| Nom. Diameter | 1.326 in (33.68 mm) |
| Ripcord | Yes |
Electrical Characteristics
Electricals
| Element | Nom. Conductor DCR | Max. Current |
|---|---|---|
| Conductor(s) | 0.209 Ohm/1000ft | 115 Amps per Conductor at 30oC |
| Ground | 0.411 Ohm/1000ft (1.35 Ohm/km) |
Voltage
| Voltage Rating | 1000 V (TECK 90) |
|---|
Mechanical Characteristics
| Max. Pull Tension | 2439.5 lbs (1106.5 kg) |
|---|---|
| Bulk Cable Weight | 1101 lbs/1000ft |
Temperature
| UL Temperature | 90°C |
|---|---|
| Operating | -40°C To +90°C |
| Installation | -25°C To +90°C |
Bend Radius
| Stationary Min. | 10.608 in (269.44 mm) |
|---|---|
| Installation Min. | 10.608 in (269.44 mm) |
Standards and Compliance
| Environmental Suitability | Indoor, Outdoor, Sunlight Resistance, Burial |
|---|---|
| CEC / C(UL) Compliance | TECK 90, HL. |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.200 Revision Date: 02-20-2026 |
|---|
