Product Number: C5583

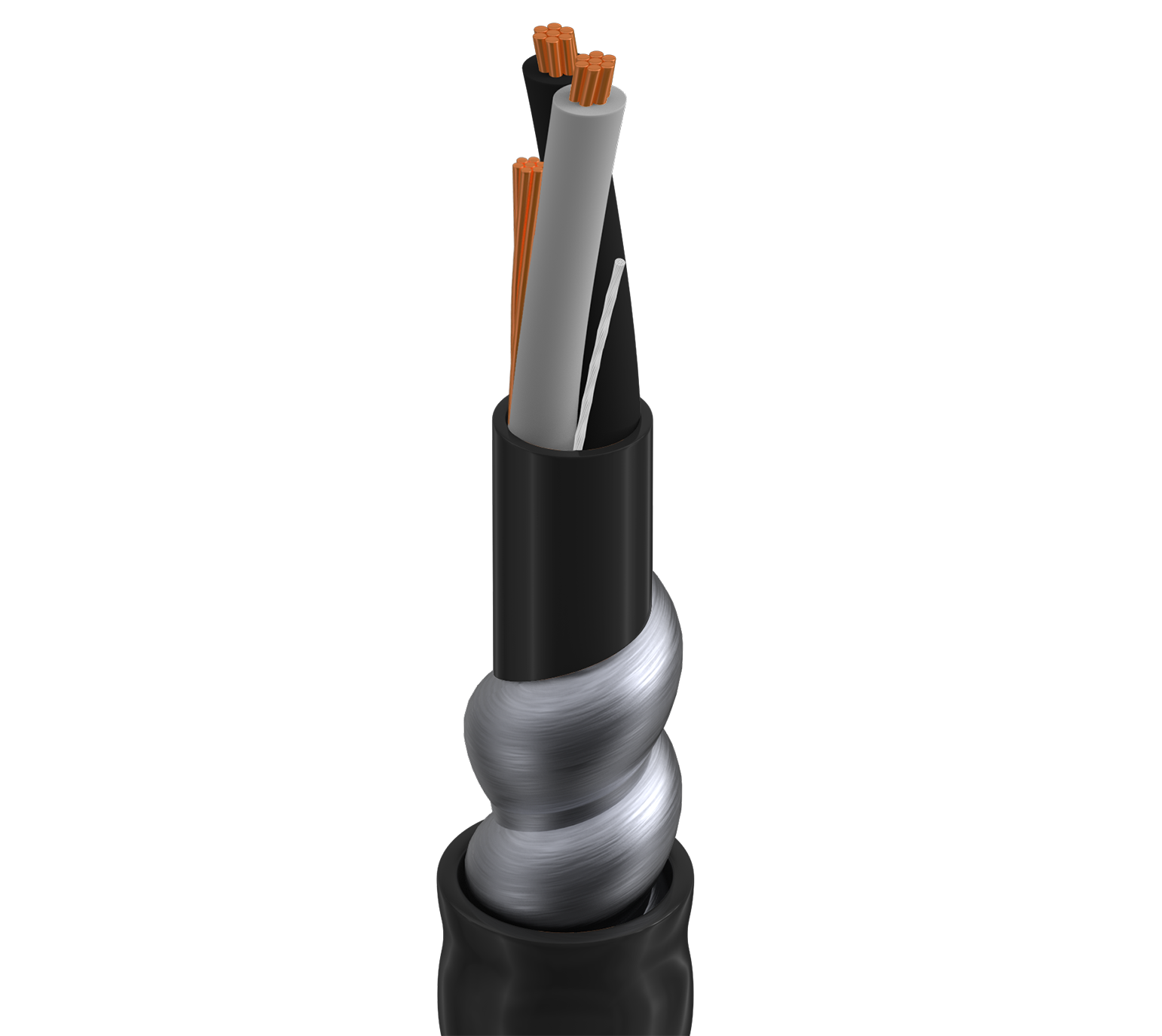

Teck90 1000V, 2+G C #8+10 Str BC, XLPE Ins M4, PVC Jkt, AIA Armor, Blk PVC Jkt, CSA HL SUN RES -40C

Teck90 1000V, 2+G Conductor 8+10AWG (7x16H) Bare Copper, XLPE Insulation M4 Color Code, PVC Inner Jacket, Aluminum Interlock Armor, Black PVC Outer Jacket, CSA HL SUN RES -40C

Availability: Global
Status: Active
Orderable items: 7

Ships from and sold by A5 IT.

Part numbers

C5583 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Putup Type	UPC	Order
C5583 0103281	Reel	612825283591	Order online
C5583 0105000	Reel	—	Order online
C5583 010984	Reel	—	Order online
C5583 0109840	Reel	612825283621	Order online
C5583 INJ9840	Reel	612825283560	Order online
C5583 0104920	Reel	—	Order online
C5583 0101640	Reel	—	Order online

Specifications

Information

Put-Up Type	Reel
Update and Revision	Revision Number: 0.132 Revision Date: 02-20-2026

Product Overview

Suitable Applications	CEC Power and Control Applications up to 600V

Construction Details

Overall Cable Diameter (Nominal)	0.915 in (23.2 mm)

Conductor

Element	No. of Elements	Size	Stranding	Material
Conductor(s)	2	8 AWG	7x17	BC - Bare Copper
Ground Wire	1	10 AWG	7x18	BC - Bare Copper

Insulation

Element	Material	Nom. Thickness	Nom. Insulation Diameter	Color Code
Conductor(s)	XLP, XLPO, XLPE (Thermoset)	0.045 in (1.1 mm)	0.234 in mm	Black, White
Ground Wire	No Insulation

Outer Shield

Material	No Shield

Inner Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.063 in (1.6 mm)
Nom. Diameter	0.594 in (15.1 mm)

Armor

Armor Type & Material	AIA - Aluminum Interlock Armor
Diameter Over Armor	0.819 in

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.048 in (1.2 mm)
Nom. Diameter	0.915 in (23.2 mm)
Ripcord	Yes

Electrical Characteristics

Electricals

Element	Nom. Conductor DCR	Max. Current
Conductor(s)	0.667 Ohm/1000ft	55 Amps per Conductor at 30oC
Ground Wire	1.06 Ohm/1000ft (3.48 Ohm/km)

Voltage

Voltage Rating	1000 V (TECK 90)

Mechanical Characteristics

Max. Pull Tension	753.6 lbs (341.8 kg)
Bulk Cable Weight	394 lbs/1000ft

Temperature

Operating	-40°C To +90°C
Installation	-25°C To +90°C

Bend Radius

Stationary Min.	7.31 in (186 mm)
Installation Min.	7.31 in (186 mm)

Standards and Compliance

Environmental Suitability	Indoor, Outdoor, Sunlight Resistance, UV Resistance, Burial
CEC / C(UL) Compliance	TECK 90, HL.
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
