Product Number: C5581

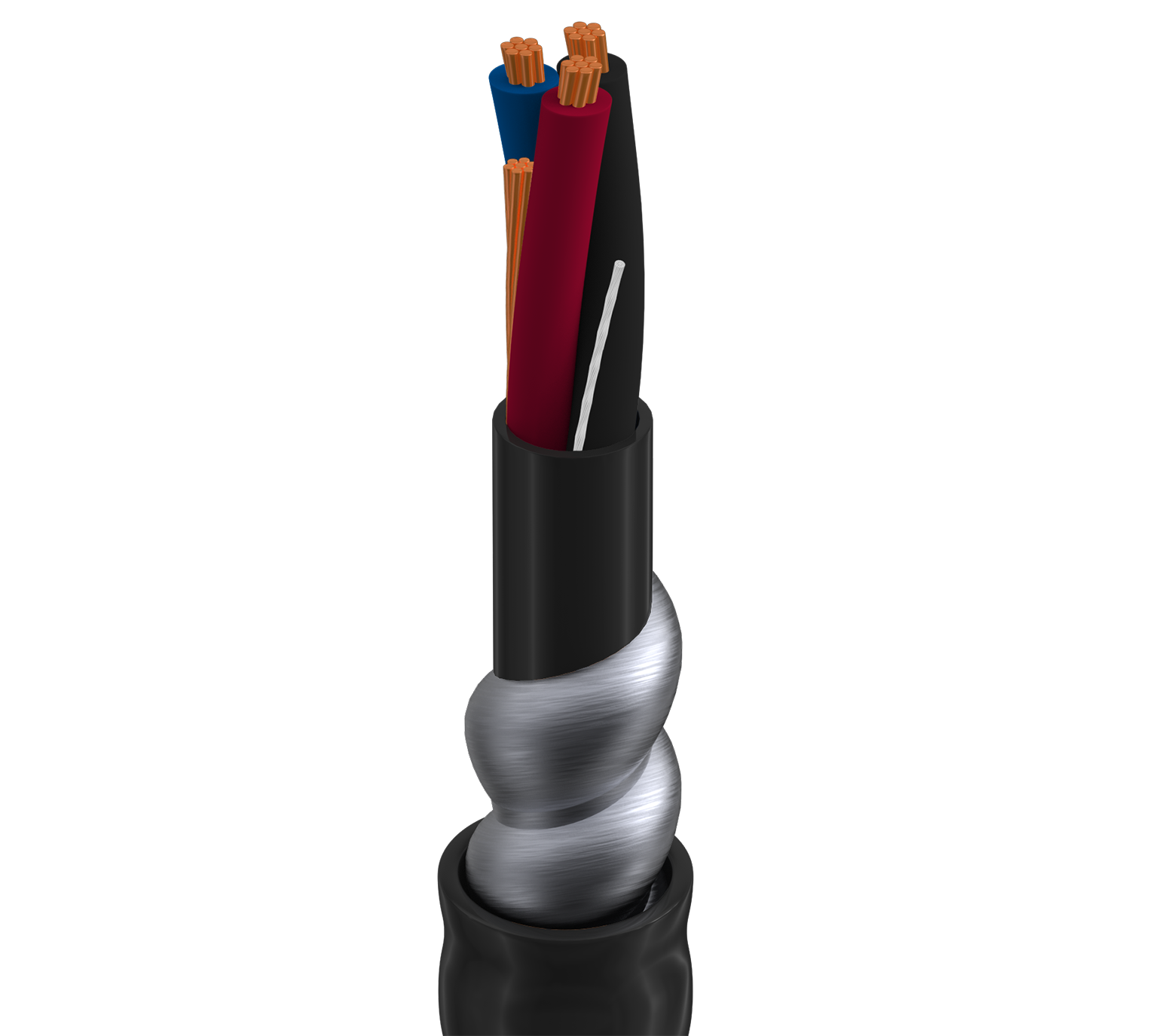

Teck90 1000V, 3+G C #8+10 Str BC, XLPE Ins M4, PVC Jkt, AIA Armor, Blk PVC Jkt, CSA HL SUN RES -40C

Teck90 1000V, 3+G Conductor 8+10AWG (7x16H) Bare Copper, XLPE Insulation M4 Color Code, PVC Inner Jacket, Aluminum Interlock Armor, Black PVC Outer Jacket, CSA HL SUN RES -40C

Availability: Global
Status: Active
Orderable items: 2

Ships from and sold by A5 IT.

Part numbers

C5581 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Putup Type	UPC	Order
C5581 0103280	Reel	612825283423	Order online
C5581 0109840	Reel	612825283478	Order online

Specifications

Product Overview

Suitable Applications	Power and Control Applications up to 600V

Construction Details

Conductor

Element	No. of Elements	Size	Stranding	Material
Conductor(s)	3	8	7x16	BC - Bare Copper
Ground	1	10	7x18	BC - Bare Copper

Insulation

Material	XLP, XLPO, XLPE (Thermoset)
Nom. Thickness	0.045 in (1.1 mm)
Nom. Insulation Diameter	0.234 in (5.94 mm)
Color Code	Black, Red, Blue

Inner Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.063 in (1.6 mm)
Nom. Diameter	0.63 in (16 mm)

Armor

Armor Type & Material	AIA - Aluminum Interlock Armor
Diameter Over Armor	0.855 in (21.7 mm)

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.048 in (1.2 mm)
Nom. Diameter	0.951 in (24.2 mm)
Ripcord	Yes

Electrical Characteristics

Electricals

Element	Nom. Conductor DCR	Max. Current
Conductor(s)	0.64 Ohm/1000ft	24 Amps per Conductor at 30oC
Ground	1.04 Ohm/1000ft (3.41 Ohm/km)

Voltage

Voltage Rating	1000 V (TECK 90)

Mechanical Characteristics

Max. Pull Tension	992 lbs (450 kg)
Bulk Cable Weight	468 lbs/1000ft

Temperature

UL Temperature	90°C
Operating	-40°C To +90°C
Installation	-25°C To +90°C

Bend Radius

Stationary Min.	7.608 in (193.2 mm)
Installation Min.	7.608 in (193.2 mm)

Standards and Compliance

Environmental Suitability	Indoor, Outdoor, Sunlight Resistance, Burial
CEC / C(UL) Compliance	TECK 90, HL.
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
