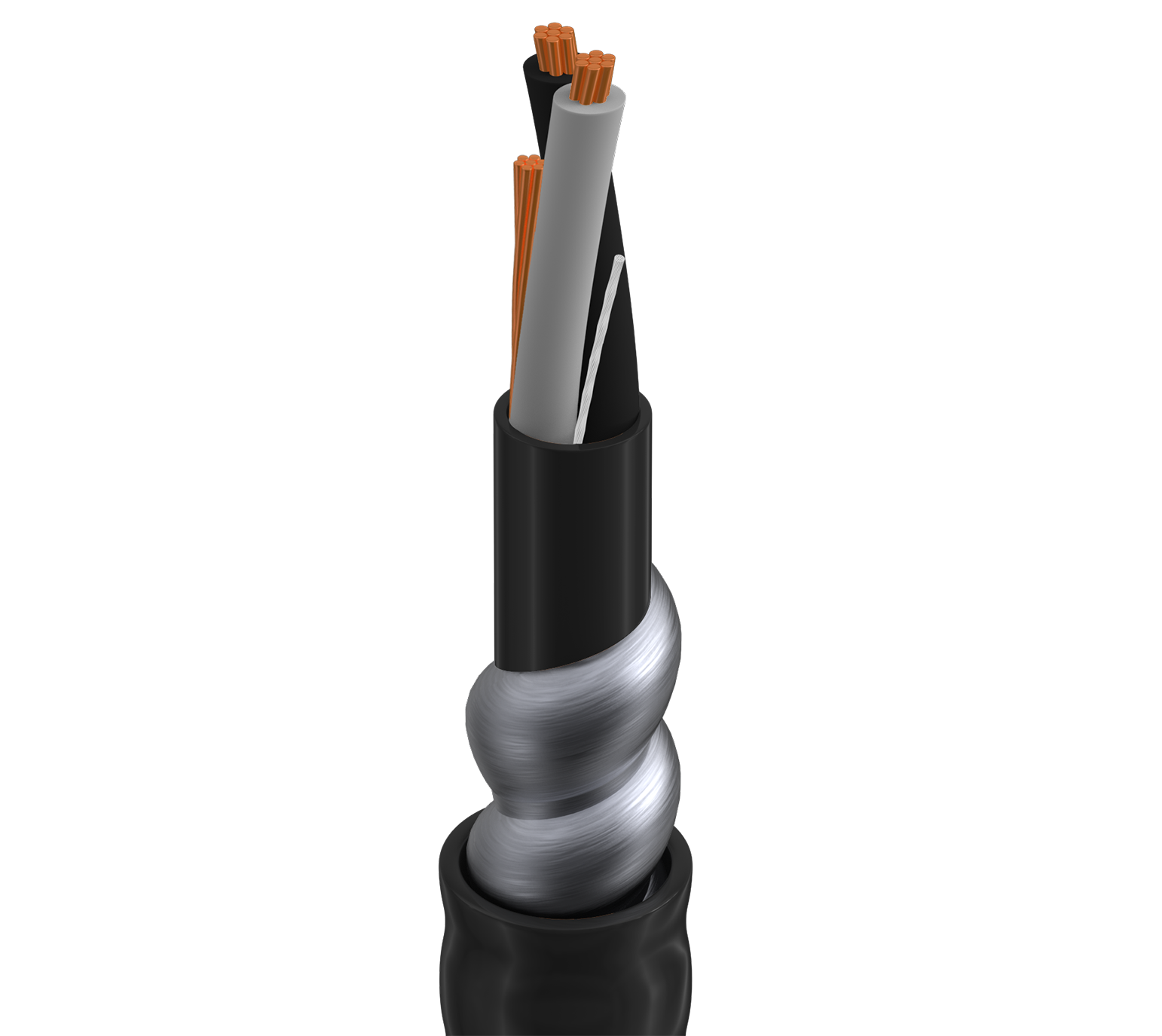

Product Number: C5540

Teck90 600V, 12+G C #12+14 Str BC, XLPE Ins M4, PVC Jkt, AIA Armor, Blk PVC Jkt, CSA HL SUN RES -40C

Teck90 600V, 12+G Conductor 12+14AWG (7x20H) Bare Copper, XLPE Insulation M4 Color Code, PVC Inner Jacket, Aluminum Interlock Armor, Black PVC Outer Jacket, CSA HL SUN RES -40C

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

C5540 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Putup Type	UPC	Order
C5540 0105000	Reel	612825282938	Order online

Specifications

Product Overview

Suitable Applications	CEC Power and Control Applications up to 600V

Construction Details

Overall Cable Diameter (Nominal)	1.070 in (27.18 mm)

Conductor

Element	No. of Elements	Size	Stranding	Material
Conductor(s)	12	12 AWG	7x20	BC - Bare Copper
Ground Wire	1	14 AWG	7x22	BC - Bare Copper

Insulation

Element	Material	Nom. Thickness	Nom. Insulation Diameter	Color Code
Conductor(s)	XLP, XLPO, XLPE (Thermoset)	0.030 in (0.76 mm)	0.150 in (3.81 mm)	Black and Numbered
Ground Wire	No Insulation

Outer Shield

Material	No Shield

Inner Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.063 in (1.6 mm)
Nom. Diameter	0.749 in (19.0 mm)
Ripcord	Yes
Color	Black

Armor

Armor Type & Material	AIA - Aluminum Interlock Armor
Armor Thickness	0.025 in (0.64 mm)
Diameter Over Armor	0.974 in (24.7 mm)

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.048 in (1.2 mm)
Nom. Diameter	1.070 in (27.18 mm)
Ripcord	Yes

Electrical Characteristics

Electricals

Element	Nom. Conductor DCR	Max. Current
Conductor(s)	1.7 Ohm/1000ft	21 Amps per Conductor at 30oC
Ground Wire	2.67 Ohm/1000ft (8.76 Ohm/km)

Voltage

Voltage Rating	600 V (TECK 90)

Mechanical Characteristics

Max. Pull Tension	1296.2 lbs (587.95 kg)
Bulk Cable Weight	656 lbs/1000ft

Temperature

UL Temperature	90°C
Operating	-40°C To +90°C
Installation	-25°C To +90°C

Bend Radius

Stationary Min.	8.56 in (217 mm)
Installation Min.	8.56 in (217 mm)

Standards and Compliance

Environmental Suitability	Indoor, Outdoor, Sunlight Resistance, UV Resistance
CEC / C(UL) Compliance	TECK 90, HL.
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
