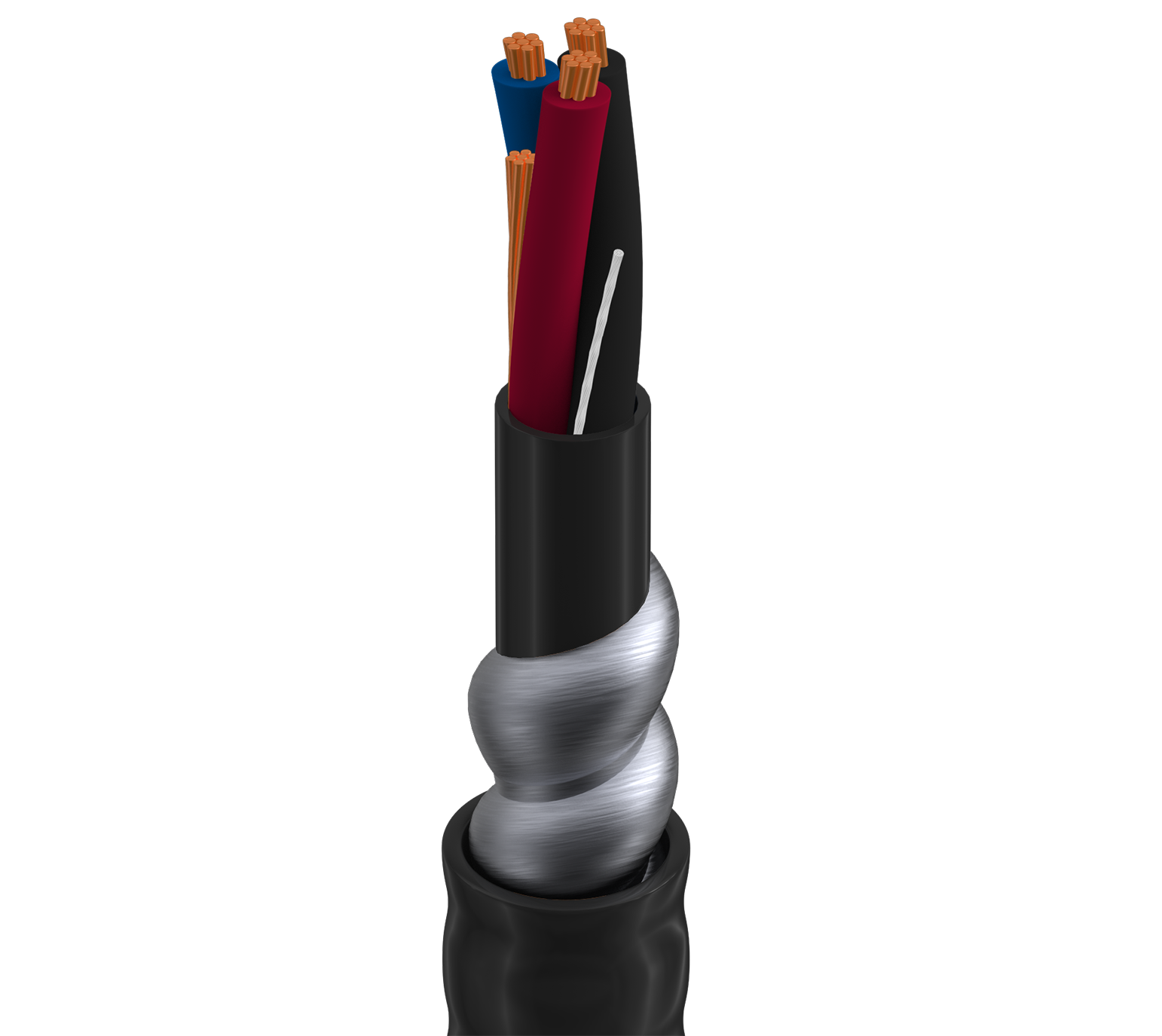

Product Number: C5531

Teck90 600V, 3+G C #12+14 Str BC, XLPE Ins M4, PVC Jkt, AIA Armor, Blk PVC Jkt, CSA HL SUN RES -40C

Teck90 600V, 3+G Conductor 12+14AWG (7x20H) Bare Copper, XLPE Insulation M4 Color Code, PVC Inner Jacket, Aluminum Interlock Armor, Black PVC Outer Jacket, CSA HL SUN RES -40C

Availability: Global
Status: Active
Orderable items: 8

Ships from and sold by A5 IT.

Part numbers

C5531 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Putup Type	UPC	Order
C5531 01010000	Reel	612825282648	Order online
C5531 0102500	Reel	612825282662	Order online
C5531 0105000	Reel	612825282686	Order online
C5531 0105000	Reel	612825282686	Order online
C5531 0107500	Reel	612825282709	Order online
C5531 01010000	Reel	—	Order online
C5531 010984	Reel	612825282723	Order online
C5531 0104920	Reel	612825282679	Order online

Specifications

Information

Put-Up Type	Reel
Update and Revision	Revision Number: 0.259 Revision Date: 02-20-2026

Product Overview

Suitable Applications	Power and Control Applications up to 600V

Construction Details

Conductor

Element	No. of Elements	Size	Stranding	Material
Conductor(s)	3	12	7x20	BC - Bare Copper
Ground	1	14	7x22	BC - Bare Copper

Insulation

Material	XLP, XLPO, XLPE (Thermoset)
Nom. Thickness	0.03 in (0.76 mm)
Nom. Insulation Diameter	0.150 in (3.81 mm)
Color Code	Black, Red, Blue

Inner Jacket

Material	PVC - Polyvinyl Chloride
Nom. Diameter	0.417 in (10.6 mm)

Armor

Armor Type & Material	AIA - Aluminum Interlock Armor
Diameter Over Armor	0.642 in

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.048 in (1.2 mm)
Nom. Diameter	0.738 in (18.7 mm)
Ripcord	Yes

Electrical Characteristics

Electricals

Element	Nom. Conductor DCR	Max. Current
Conductor(s)	1.68 Ohm/1000ft	24 Amps per Conductor at 30oC
Ground	2.6 Ohm/1000ft (8.5 Ohm/km)

Voltage

Voltage Rating	600 V (TECK 90)

Mechanical Characteristics

Max. Pull Tension	315 lbs (143 kg)
Bulk Cable Weight	261 lbs/1000ft

Temperature

UL Temperature	90°C
Operating	-40°C To +90°C
Installation	-25°C To +90°C

Bend Radius

Stationary Min.	5.904 in (150.0 mm)
Installation Min.	5.904 in (150.0 mm)

Standards and Compliance

Environmental Suitability	Indoor, Outdoor, Sunlight Resistance, Burial
CEC / C(UL) Compliance	TECK 90, HL.
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
