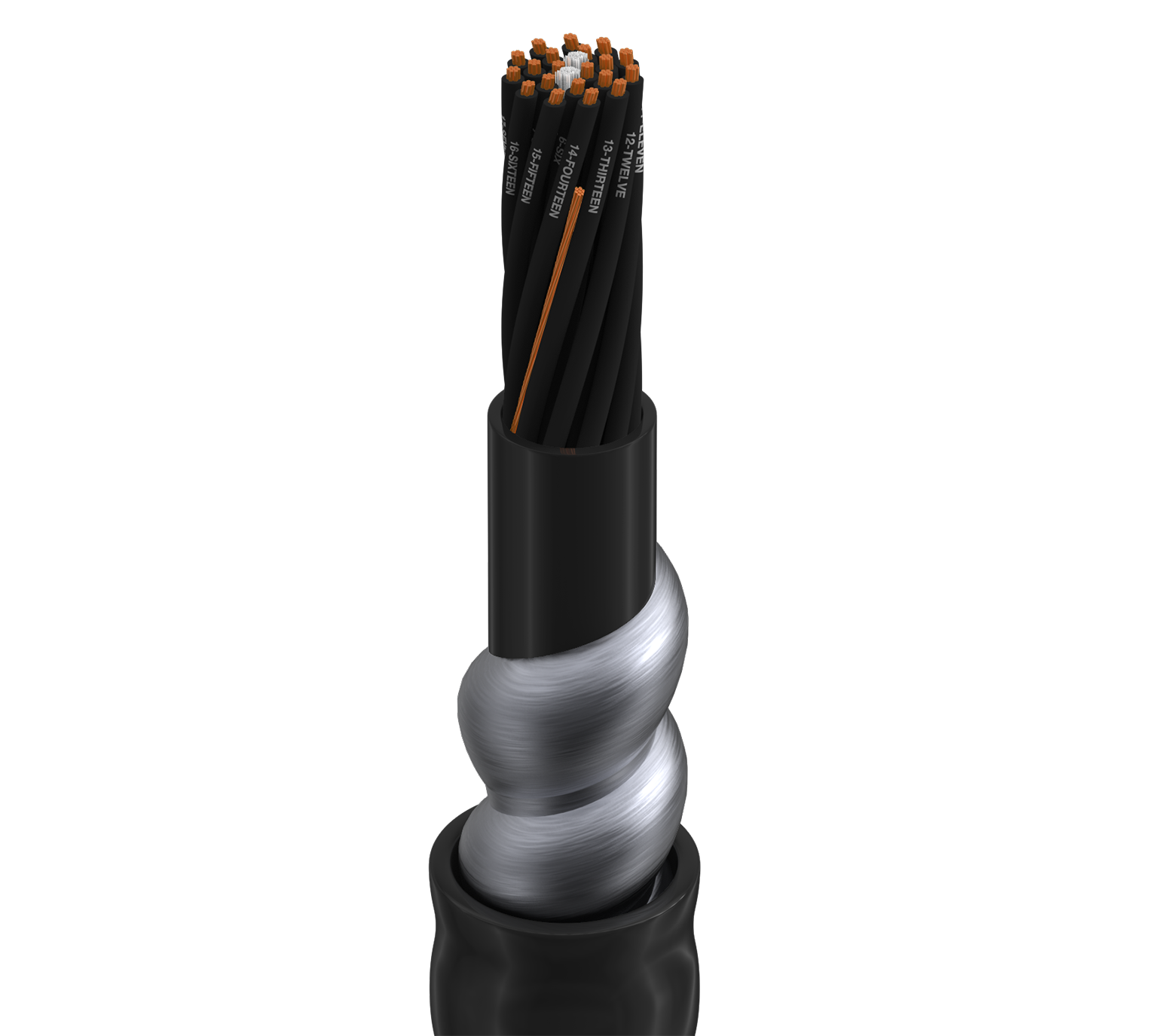

Teck90 600V, 9+G C #14+14 Str BC, XLPE Ins M4, PVC Jkt, AIA Armor, Blk PVC Jkt, CSA HL SUN RES -40C
Teck90 600V, 9+G Conductor 14+14AWG (7x22H) Bare Copper, XLPE Insulation M4 Color Code, PVC Inner Jacket, Aluminum Interlock Armor, Black PVC Outer Jacket, CSA HL SUN RES -40C
- Availability
- Global
- Status
- Active
Specifications
Information
| Put-Up Type | Reel |
|---|---|
| Update and Revision | Revision Number: 0.47 Revision Date: 05-04-2026 |
Physical Characteristics (Overall)
| Conductor Count | 9 |
|---|
Conductor
| Element | AWG | Stranding | Material | No. of Conductors |
|---|---|---|---|---|
| Conductor(s) | 14 | 7x22.5 | BC - Bare Copper | 9 |
| Ground | 14 | 7x22 | BC - Bare Copper | 1 |
Insulation
| Material |
|---|
| XLP, XLPO, XLPE (Thermoset) |
| No Insulation |
Inner Jacket
| Material | PVC - Polyvinyl Chloride |
|---|
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|
Construction and Dimensions
Armor
| Type of Armor | Interlocked |
|---|---|
| Material | Aluminum |
Suitability
| Suitability - Indoor | Yes |
|---|---|
| Suitability - Outdoor | Yes |
History
| Update and Revision | Revision Number: 0.47 Revision Date: 05-04-2026 |
|---|
