Product Number: C5502

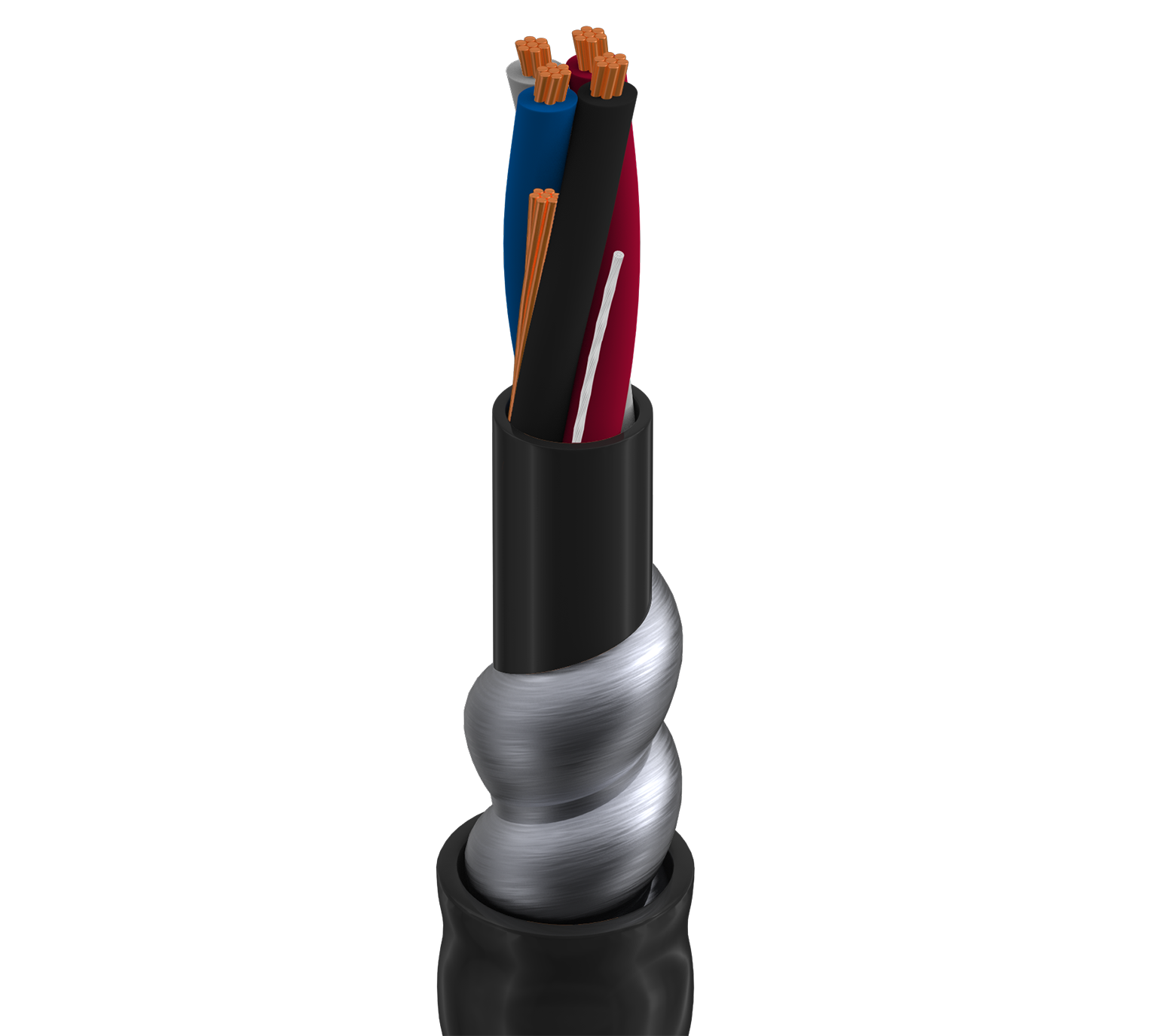

Teck90 600V, 4+G C #14+14 Str BC, XLPE Ins M4, PVC Jkt, AIA Armor, Blk PVC Jkt, CSA HL SUN RES -40C

Teck90 600V, 4+G Conductor 14+14AWG (7x22H) Bare Copper, XLPE Insulation M4 Color Code, PVC Inner Jacket, Aluminum Interlock Armor, Black PVC Outer Jacket, CSA HL SUN RES -40C

Availability: Global
Status: Active
Orderable items: 8

Ships from and sold by A5 IT.

Part numbers

C5502 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Putup Type	UPC	Order
C5502 01010000	Reel	612825282044	Order online
C5502 0102500	Reel	612825282051	Order online
C5502 0105000	Reel	612825282068	Order online
C5502 0105000	Reel	612825282068	Order online
C5502 0107500	Reel	612825282075	Order online
C5502 INJ10000	Reel	612825282020	Order online
C5502 010984	Reel	612825282082	Order online
C5502 0104920	Reel	—	Order online

Specifications

Information

Put-Up Type	Reel
Update and Revision	Revision Number: 0.259 Revision Date: 02-20-2026

Product Overview

Suitable Applications	CEC Power and Control Applications up to 600V

Construction Details

Overall Cable Diameter (Nominal)	0.75 in (19 mm)

Conductor

Element	No. of Elements	Size	Stranding	Material
Conductor(s)	4	14 AWG	7x23	BC - Bare Copper
Ground Wire	1	14 AWG	7x22	BC - Bare Copper

Insulation

Element	Material	Nom. Thickness	Nom. Insulation Diameter	Color Code
Conductor(s)	XLP, XLPO, XLPE (Thermoset)	0.03 in (0.76 mm)	0.132 in mm	Red, Black, Blue, White
Ground Wire	No Insulation

Outer Shield

Material	No Shield

Inner Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.047 in (1.2 mm)
Nom. Diameter	0.412 in (10.5 mm)

Armor

Armor Type & Material	AIA - Aluminum Interlock Armor
Diameter Over Armor	0.637 in

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.048 in (1.2 mm)
Nom. Diameter	0.75 in (19 mm)
Ripcord	Yes

Electrical Characteristics

Electricals

Element	Nom. Conductor DCR	Max. Current
Conductor(s)	2.67 Ohm/1000ft	24 Amps per Conductor at 30oC
Ground Wire	2.67 Ohm/1000ft (8.76 Ohm/km)

Voltage

Voltage Rating	600 V (TECK 90)

Mechanical Characteristics

Max. Pull Tension	200 lbs (91 kg)
Bulk Cable Weight	251 lbs/1000ft

Temperature

Operating	-40°C To +90°C
Installation	-25°C To +90°C

Bend Radius

Stationary Min.	6 in (150 mm)
Installation Min.	6 in (150 mm)

Standards and Compliance

Environmental Suitability	Indoor, Outdoor, Sunlight Resistance, Burial
CEC / C(UL) Compliance	TECK 90, HL.
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
