Product Number: C5500

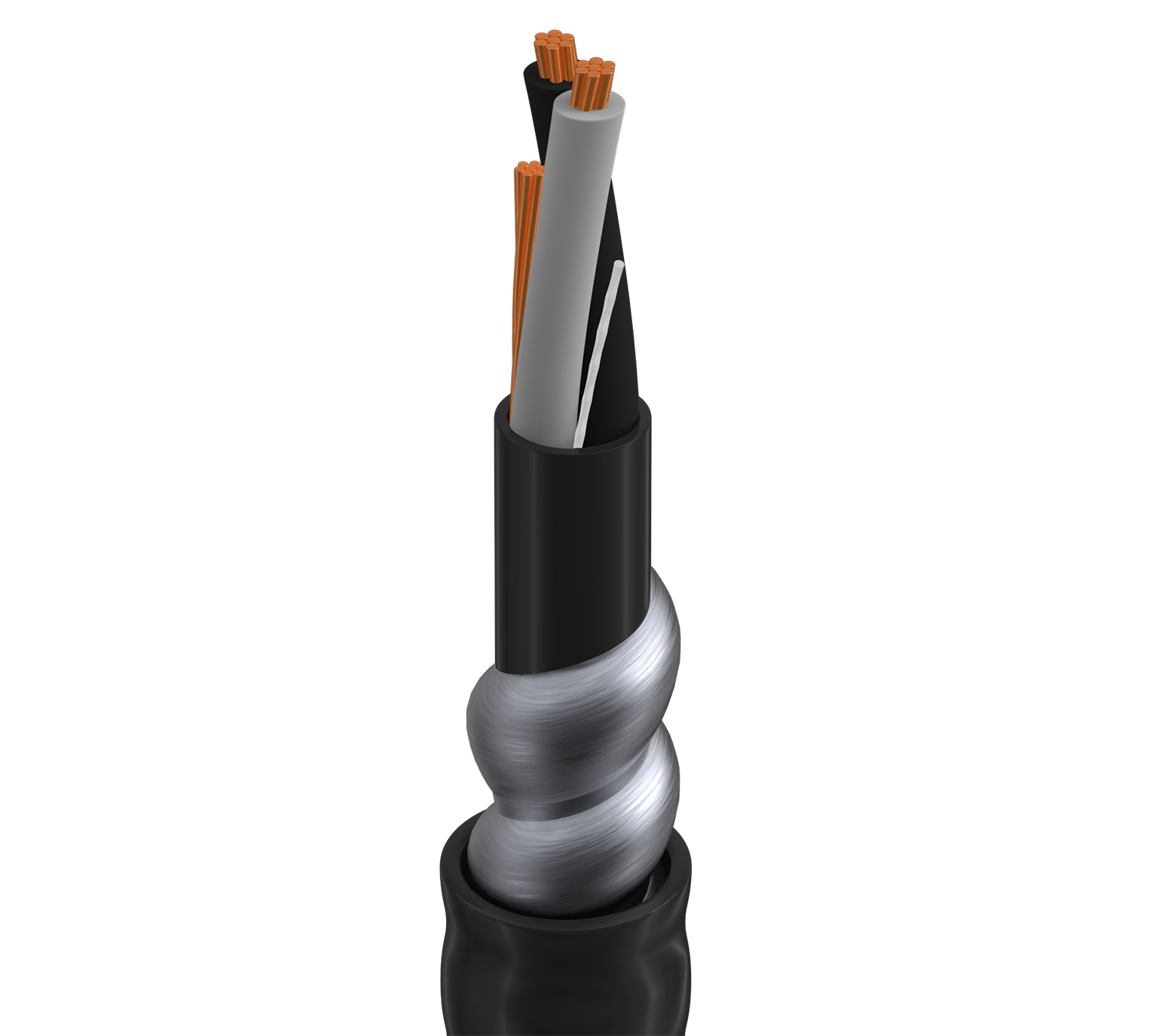

Teck90 600V, 2+G C #14+14 Str BC, XLPE Ins M4, PVC Jkt, AIA Armor, Blk PVC Jkt, CSA HL SUN RES -40C

Teck90 600V, 2+G Conductor 14+14AWG (7x22H) Bare Copper, XLPE Insulation M4 Color Code, PVC Inner Jacket, Aluminum Interlock Armor, Black PVC Outer Jacket, CSA HL SUN RES -40C

Availability: Global
Status: Active
Orderable items: 8

Ships from and sold by A5 IT.

Part numbers

C5500 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Putup Type	UPC	Order
C5500 01010000	Reel	612825281863	Order online
C5500 0102500	Reel	612825281887	Order online
C5500 0105000	Reel	612825281894	Order online
C5500 0107500	Reel	612825281900	Order online
C5500 INJ10000	Reel	612825281849	Order online
C5500 01010000	Reel	—	Order online
C5500 0105000	Reel	—	Order online
C5500 0101968	Reel	—	Order online

Specifications

Information

Put-Up Type	Reel
Update and Revision	Revision Number: 0.254 Revision Date: 02-20-2026

Product Overview

Suitable Applications	CEC Power and Control Applications up to 600V

Construction Details

Overall Cable Diameter (Nominal)	0.693 in (17.6 mm)

Conductor

Element	No. of Elements	Size	Stranding	Material
Conductor(s)	2	14 AWG	7x3	BC - Bare Copper
Ground Wire	1	14 AWG	7x22	BC - Bare Copper

Insulation

Element	Material	Nom. Thickness	Nom. Insulation Diameter	Color Code
Conductor(s)	XLP, XLPO, XLPE (Thermoset)	0.03 in (0.76 mm)	0.132 in mm	Black, White
Ground Wire	No Insulation

Outer Shield

Material	No Shield

Inner Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.047 in (1.2 mm)
Nom. Diameter	0.372 in (9.45 mm)

Armor

Armor Type & Material	AIA - Aluminum Interlock Armor
Diameter Over Armor	0.597 in

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.048 in (1.2 mm)
Nom. Diameter	0.693 in (17.6 mm)
Ripcord	Yes

Electrical Characteristics

Electricals

Element	Nom. Conductor DCR	Max. Current
Conductor(s)	2.67 Ohm/1000ft	24 Amps per Conductor at 30oC
Ground Wire	2.67 Ohm/1000ft (8.76 Ohm/km)

Voltage

Voltage Rating	600 V (TECK 90)

Mechanical Characteristics

Max. Pull Tension	210 lbs (95 kg)
Bulk Cable Weight	204 lbs/1000ft

Temperature

Operating	-40°C To +90°C
Installation	-25°C To +90

Bend Radius

Stationary Min.	5.53 in (140 mm)
Installation Min.	5.53 in (140 mm)

Standards and Compliance

Environmental Suitability	Indoor, Outdoor, Sunlight Resistance, Burial
CEC / C(UL) Compliance	TECK 90, HL.
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
