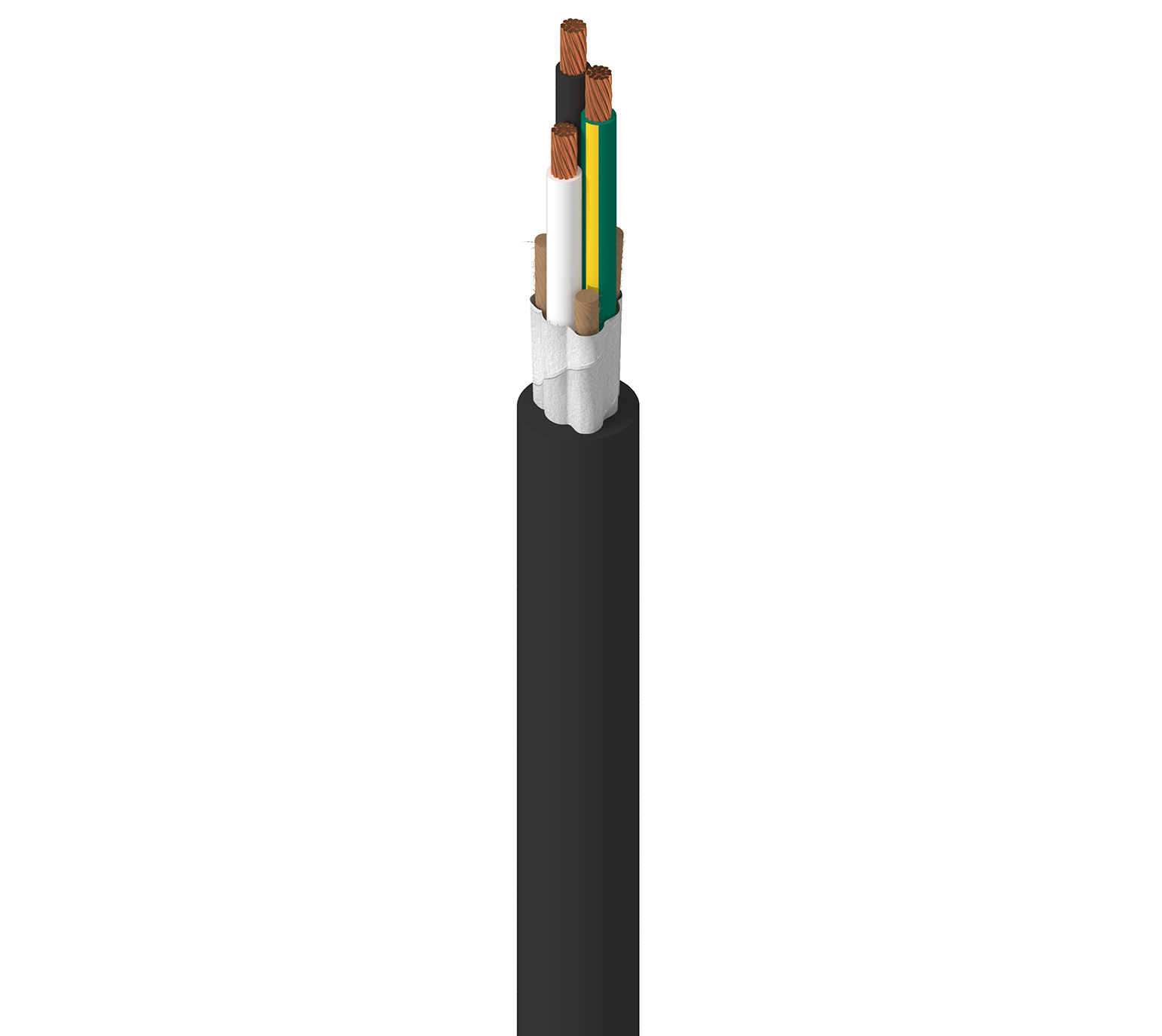

Portable Cordage, 3 C #16 Str BC, PVC Ins, PVC Jkt, UL Type SJT
Portable Cordage, 3 Conductor 16AWG (65x34) Bare Copper, PVC Insulation, PVC Outer Jacket, UL Type SJT
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
9998 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Footnote | Order |
|---|---|---|---|---|
| 9998 008500 | Blue | 612825267805 | C G | Order online |
Specifications
Construction Details
| Overall Cable Diameter (Nominal) | 0.475 in |
|---|
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 3 |
| Size | 16 AWG |
| Stranding | 65x34 |
| Material | BC - Bare Copper |
Insulation
| Element | Conductor(s) |
|---|---|
| Material | PE - Polyethylene |
| Nom. Thickness | 0.033 in (0.84 mm) |
| Nom. Insulation Diameter | 0.125 in mm |
| Color Code | Black, White, Green |
Outer Shield
| Material | No Shield |
|---|
Outer Jacket
| Separator | Paper Tape |
|---|---|
| Material | PVC - Polyvinyl Chloride |
| Nom. Thickness | 0.045 in (1.1 mm) |
| Nom. Diameter | 0.475 in |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | Max. Current |
|---|---|
| 4.38 Ohm/1000ft | 19 Amps per Conductor at 25oC (10 Amps over 50 ft) |
| 10 Amps per Conductor at 25oC (over 50 ft) |
Voltage
| UL Voltage Rating | 300 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 97.5 lbs (44.2 kg) |
|---|---|
| Bulk Cable Weight | 97 lbs/1000ft |
Temperature
| UL Temperature | 75°C |
|---|---|
| Operating | -25°C to 75°C |
Bend Radius
| Stationary Min. | 4.75 in (121 mm) |
|---|---|
| Installation Min. | 4.75 in |
Standards and Compliance
| Flammability / Reaction to Fire | FT2 |
|---|---|
| NEC / UL Compliance | Article 400, SJT |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
Product Notes
| Notes | Cabling Paper Separator Tape |
|---|
History
| Update and Revision | Revision Number: 0.352 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP., G - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 100'. |
