Product Number: 9422

Portable Cordage, 7 C #16 Str BC, EPDM Ins, CPE Jkt, UL Type SO

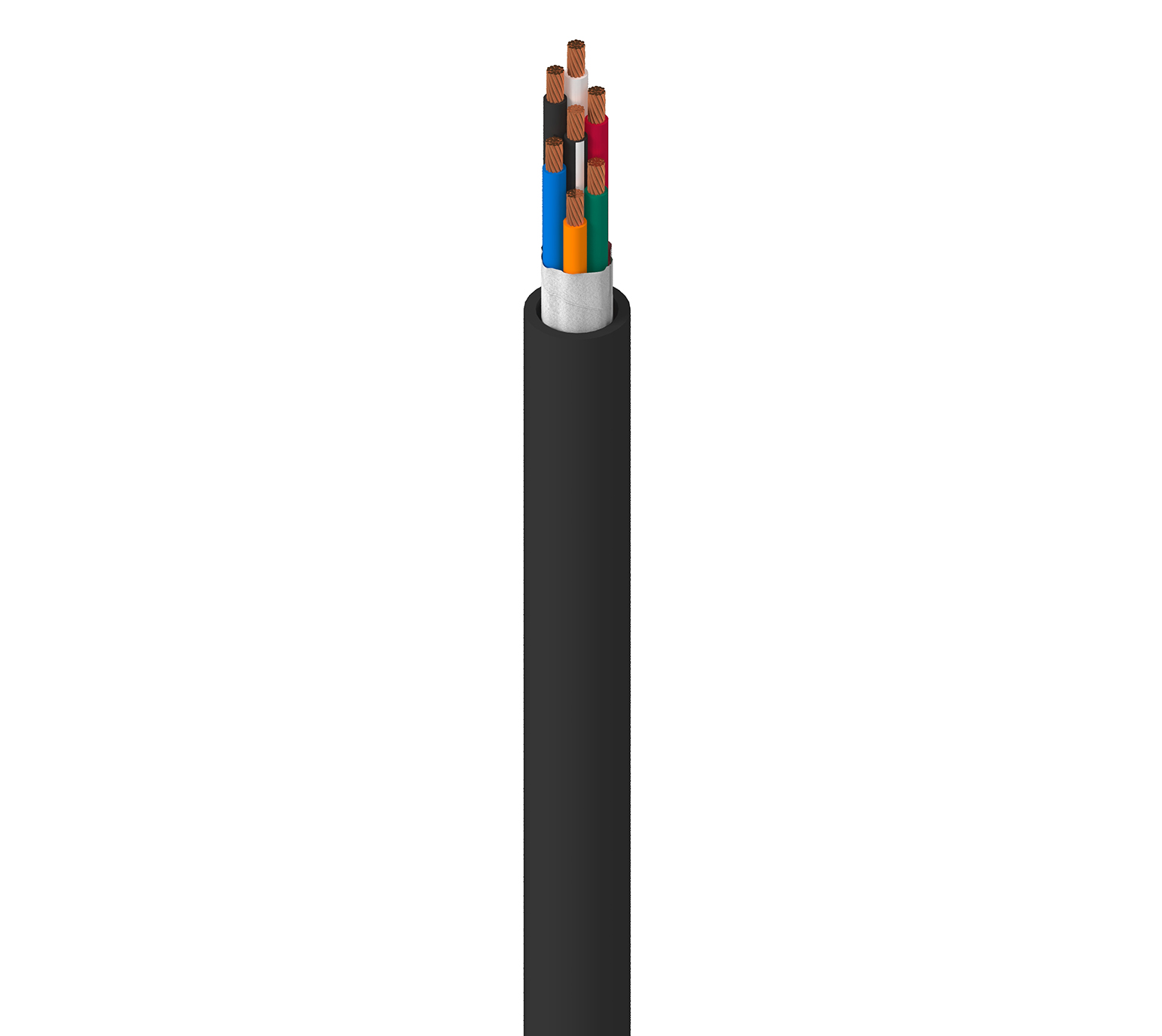

Name: Belden 9422
Brand: Belden
SKU: 9422

Portable Cordage, 7 Conductor 16AWG (65x34) Bare Copper, EPDM Insulation, CPE Outer Jacket, UL Type SO

Ships from and sold by A5 IT.

Part numbers

9422 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	UPC	Footnote	Order
9422 010100	Black	612825244929	C	Order online

Suitable Applications	extra hard service cordage; oil resistant applications; to power tools and appliances

Overall Cable Diameter (Nominal)	0.581 in

Element	Conductor(s)
Material	EPDM - Ethylene Propylene Diene Monomer
Nom. Thickness	0.033 in (0.84 mm)
Nom. Insulation Diameter	0.123 in (3.12 mm)
Color Code	Black, White, Red, Green, Orange, Blue, White/Black Stripe

Material	No Shield

Separator	Paper Tape
Material	CPE - Chlorinated Polyethylene (Thermoset)
Nom. Thickness	0.0825 in (2.10 mm)
Nom. Diameter	0.581 in

Nom. Conductor DCR	4.4 Ohm/1000ft
Max. Current	9 Amps per Conductor at 25oC

UL Voltage Rating	600 V

Max. Pull Tension	227.5 lbs (103.2 kg)
Bulk Cable Weight	189 lbs/1000ft

UL Temperature	60°C
Operating	-20°C To +60°C

Stationary Min.	5.81 in (148 mm)
Installation Min.	5.81 in

Environmental Suitability	Indoor, Oil Resistance
NEC / UL Compliance	Article 400, SO
AWM Compliance	SO
CEC / C(UL) Compliance	LL7874.
European Directive Compliance	EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
