Product Number: 8455

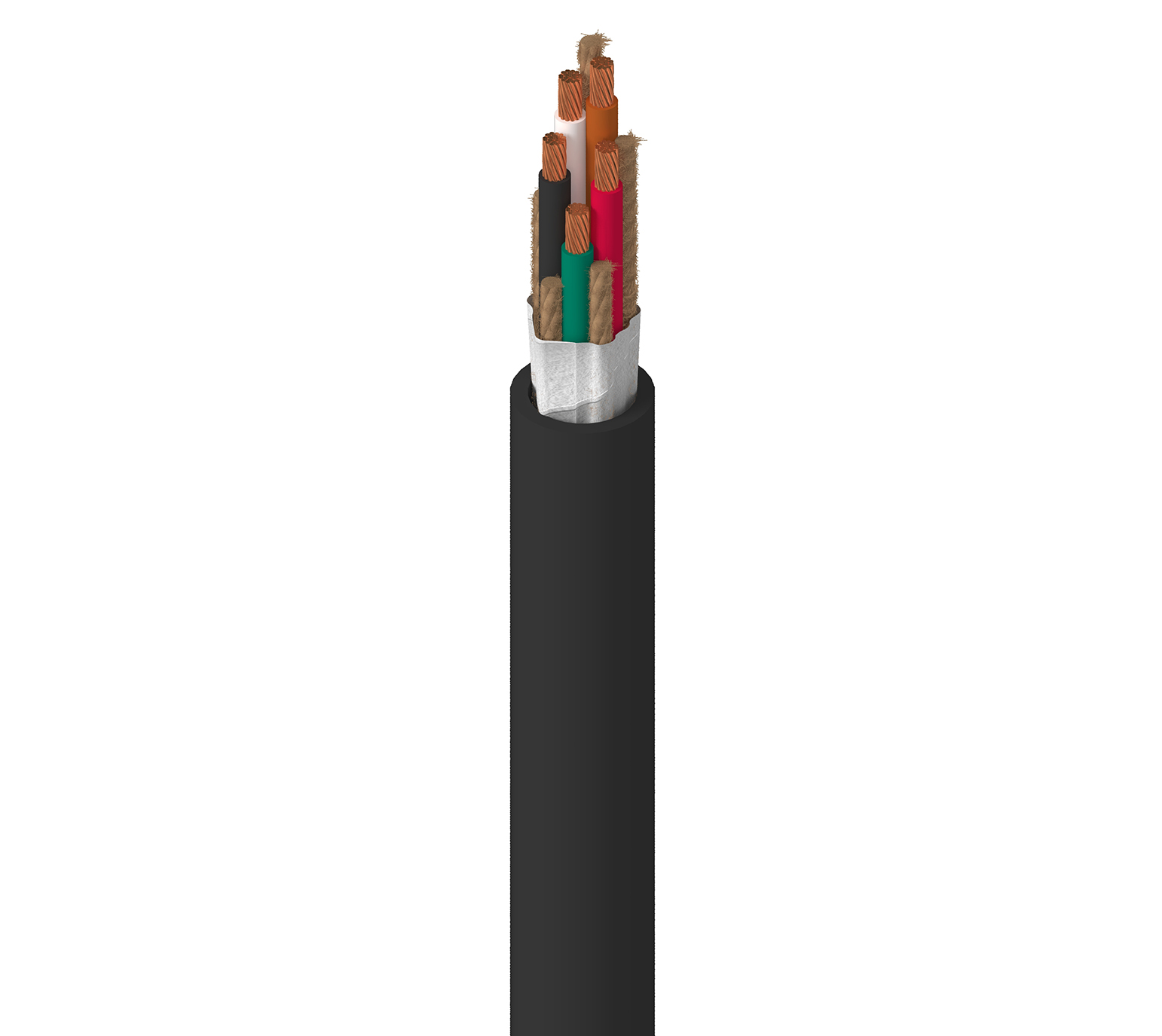

Portable Cordage, 5 C #20+18 Str TC, EPDM Ins, Rubber Jkt, UL AWM 4256

Name: Belden 8455
Brand: Belden
SKU: 8455

Portable Cordage, 5 Conductor 20+18AWG (26x34, 41x34) Tinned Copper, EPDM Insulation, Rubber Outer Jacket, UL AWM 4256

Ships from and sold by A5 IT.

Part numbers

8455 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
8455 010250	Black	Reel	250 ft	612825207900	C	Order online
8455 010U500	Black	Reel	500 ft	612825207894	—	Order online
8455 010U1000	Black	Reel	1,000 ft	612825207887	—	Order online

Overall Cable Diameter (Nominal)	0.28 in

Element	No. of Elements	Size	Stranding	Material
Conductor1	3	20 AWG	26x34	TC - Tinned Copper
Conductor(s)	1	18 AWG	41x34	TC - Tinned Copper

Element	Material	Nom. Thickness	Nom. Insulation Diameter	Color Code
Conductor1	EPDM - Ethylene Propylene Diene Monomer	0.018 in (0.46 mm)	0.073 in (1.9 mm)	Brown, Green, White
Conductor2	EPDM - Ethylene Propylene Diene Monomer	0.018 in (0.46 mm)	0.083 in (2.1 mm)	Red, Black

Material	No Shield

Separator	Paper Tape
Material	SBR - Styrene Butadiene Rubber
Nom. Thickness	0.031 in (0.79 mm)
Nom. Diameter	0.28 in

Element	Nom. Conductor DCR	Max. Current
Conductor(s)	11.8 Ohm/1000ft	3 Amps per Conductor at 25oC
Conductor(s)	7.4 Ohm/1000ft (24 Ohm/km)	7.5 Amps per Conductor at 25oC

UL Voltage Rating	300 V

Max. Pull Tension	59.5 lbs (27.0 kg)
Bulk Cable Weight	48 lbs/1000ft

UL Temperature	60°C
Operating	-20°C To +60°C

Stationary Min.	2.8 in (71 mm)
Installation Min.	2.8 in

Environmental Suitability	Indoor
AWM Compliance	AWM 4256
CEC / C(UL) Compliance	LL7874.
European Directive Compliance	EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
