Product Number: 8454

Portable Cordage, 4 C #18 Str TC, EPDM Ins, Rubber Jkt, UL AWM 4097

Name: Belden 8454
Brand: Belden
SKU: 8454

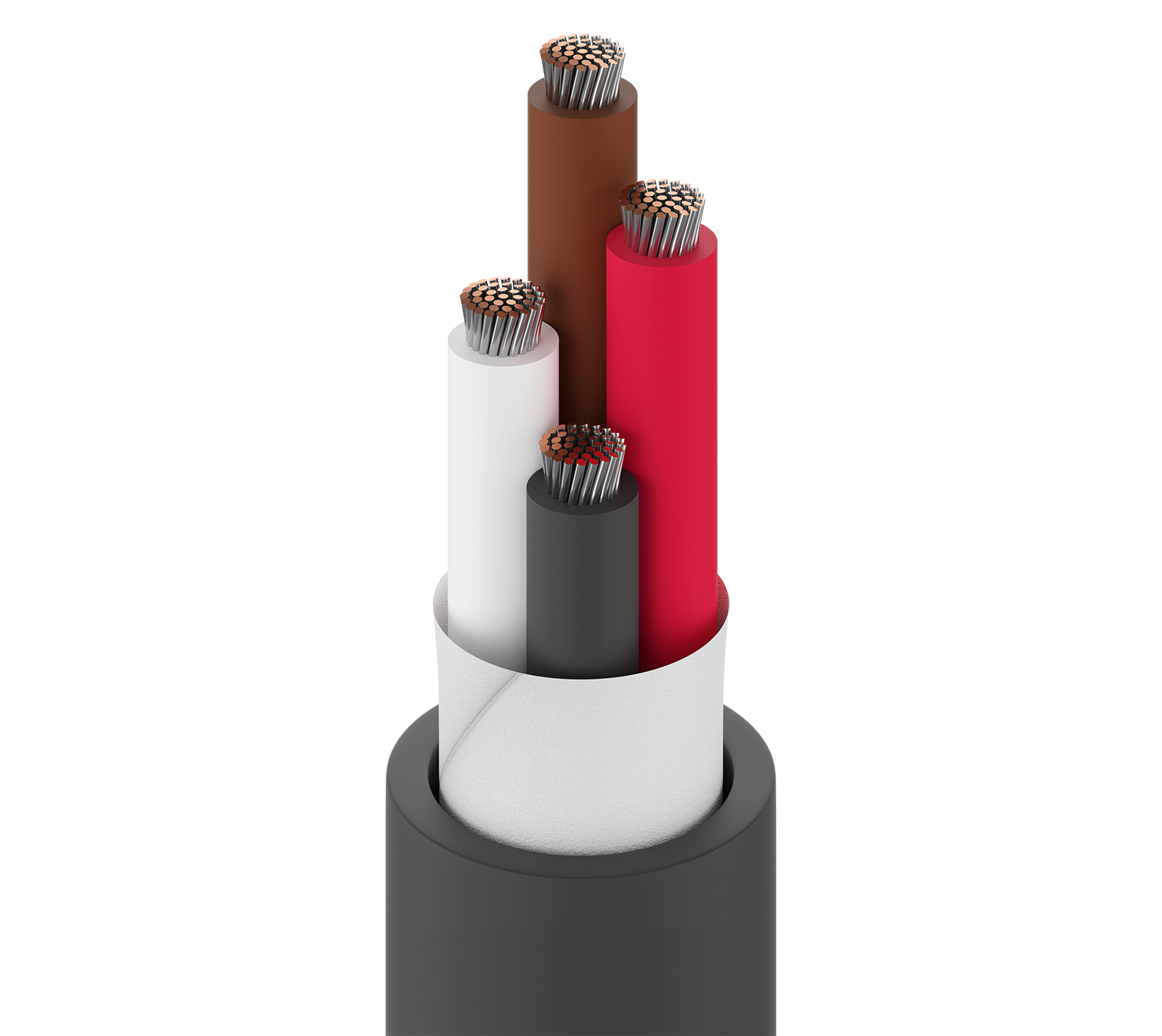

Portable Cordage, 4 Conductor 18AWG (41x34) Tinned Copper, EPDM Insulation, Rubber Outer Jacket, UL AWM 4097

Ships from and sold by A5 IT.

Part numbers

8454 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Order
8454 010100	Black	Reel	100 ft	612825207856	Order online
8454 010500	Black	Reel	500 ft	612825207870	Order online
8454 010U500	Black	Reel	500 ft	612825207849	Order online
8454 0101000	Black	Reel	1,000 ft	612825207863	Order online
8454 010U1000	Black	Reel	1,000 ft	612825207832	Order online

Suitable Applications	Junior light-duty vacuum cord(300V), Other light-duty equipements

Overall Cable Diameter (Nominal)	0.265 in (6.73 mm)

Element	Conductor(s)
Material	EPDM - Ethylene Propylene Diene Monomer
Nom. Thickness	0.018 in (0.46 mm)
Nom. Insulation Diameter	0.083 in (2.1 mm)
Color Code	Black, White, Brown, Red

Separator	Paper Tape
Material	SBR - Styrene Butadiene Rubber
Nom. Thickness	0.036 in (0.91 mm)
Nom. Diameter	0.265 in (6.73 mm)

Voltage Rating Table Notes	Dielectric Withstand Voltage: 1500 V AC Applied for 1 Min.

Element	Conductor(s)
Nom. Conductor DCR	7.3 Ohm/1000ft
Max. Current	8 Amps per Conductor at 25oC (5.6 Amps over 50 ft)

UL Voltage Rating	300 V

Max. Pull Tension	82 lbs (37 kg)
Bulk Cable Weight	50 lbs/1000ft

UL Temperature	60°C
Operating	-40°C to +60°C

Stationary Min.	2.7 in (69 mm)
Installation Min.	2.7 in (69 mm)

Environmental Suitability	Indoor
NEC / UL Compliance	Article 400
AWM Compliance	AWM 4097
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
