Product Number: 79003FS

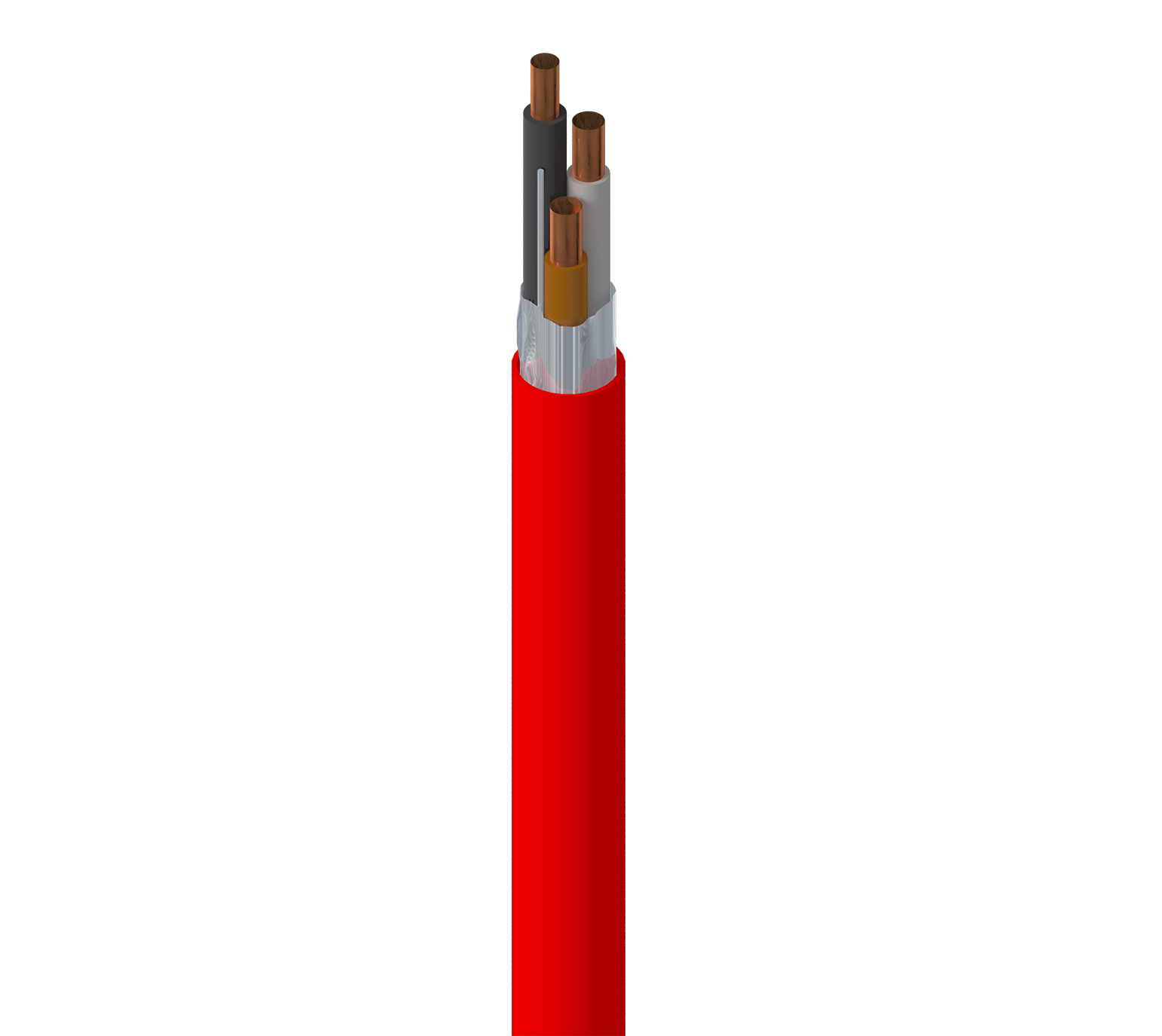

Safe-T-Line® 3 x 1.5mm2 Sol BC, OS, LSZH, BS6387 CWZ, LPCB

Safe-T-Line 3 x 1.5mm2 Sol BC Fire resistant LPCB approved Multi-conductor, BS 6387 CWZ, EN 50200 PH120+Annex E, IEC60331-2 , Shielded, Silicone Rubber insulation, Low Smoke Zero Halogen Jacket

Availability: Global
Status: Active
Orderable items: 4

Ships from and sold by A5 IT.

Part numbers

79003FS is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Order
79003FS.00100	Order online
79003FS.01100	Order online
79003FS.00500	Order online
79003FS.01500	Order online

Specifications

Product Overview

Suitable Applications	Circuit integrity, Intercom/PA Systems, Sound/Audio Systems, Control Systems, Fire Alarm Systems, Voice Evacuation Systems, Emergency & Safety Systems

Construction Details

Outer Shield Table Notes	Tape bonded to sheath
Outer Jacket1 Table Notes	COO printed on cable jacket
Overall Cable Diameter (Nominal)	8.80 mm (0.346 in)

Conductor

No. of Elements	3
Size	1.5 mm2
Stranding	Solid
Material	BC - Bare Copper

Insulation

Material	Silicone Rubber
Nom. Thickness	0.7 mm (0.028 in)
Color Code	brown, black, gray
Notes	BS7655 EI2

Outer Shield

Shield Type	Tape
Material	Bi-Laminate (Alum+Poly)
Coverage	100%
Notes	Drainwire 0.8mm tinned copper

Outer Jacket

Material	LSZH - Low Smoke Zero Halogen (Flame Retardant)
Nom. Diameter	8.80 mm (0.346 in)

Electrical Characteristics

Electricals

Max. Conductor DCR	12.1 Ohm/km
Nom. Capacitance Cond-to-Cond	70 pF/m (21 pF/ft)
Nom. Capacitance Cond-to-Other (Conds + Shield)	145 pF/m (44.2 pF/ft)

Voltage

Voltage Rating	300/500 V

Mechanical Characteristics

Temperature

Operating	-40°C To +90°C
Installation	0°C To +70°C
Storage	-40°C To +90°C

Bend Radius

Installation Min.	53 mm (2.1 in)

Standards and Compliance

Environmental Suitability	Indoor
Flammability / Reaction to Fire	IEC 60332-1-2, IEC 60332-3-24, IEC 60332-3-25, IEC 60331-2, EN50200 PH30, PH60,PH120. EN50200 Annex E30, BS6387:2013 CWZ
CENELEC Compliance	EN 60228
European Halogen Free Standards	IEC 60754-1 - Halogen Amount = IEC 60754-1, IEC 61034-2 - Smoke Density Min. Transmittance = 60%
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2)
UK Regulation Compliance	UKCA Mark

Product Notes

Notes	BS6387 CWZ: C- Fire @ 950°C - 180min, W - Fire & water @ 650°C - 15 + 15 min.,Z - Fire & mechanical shocks @ 950°C -15 min. Country of Origin printed on the jacket
