Product Number: 6193

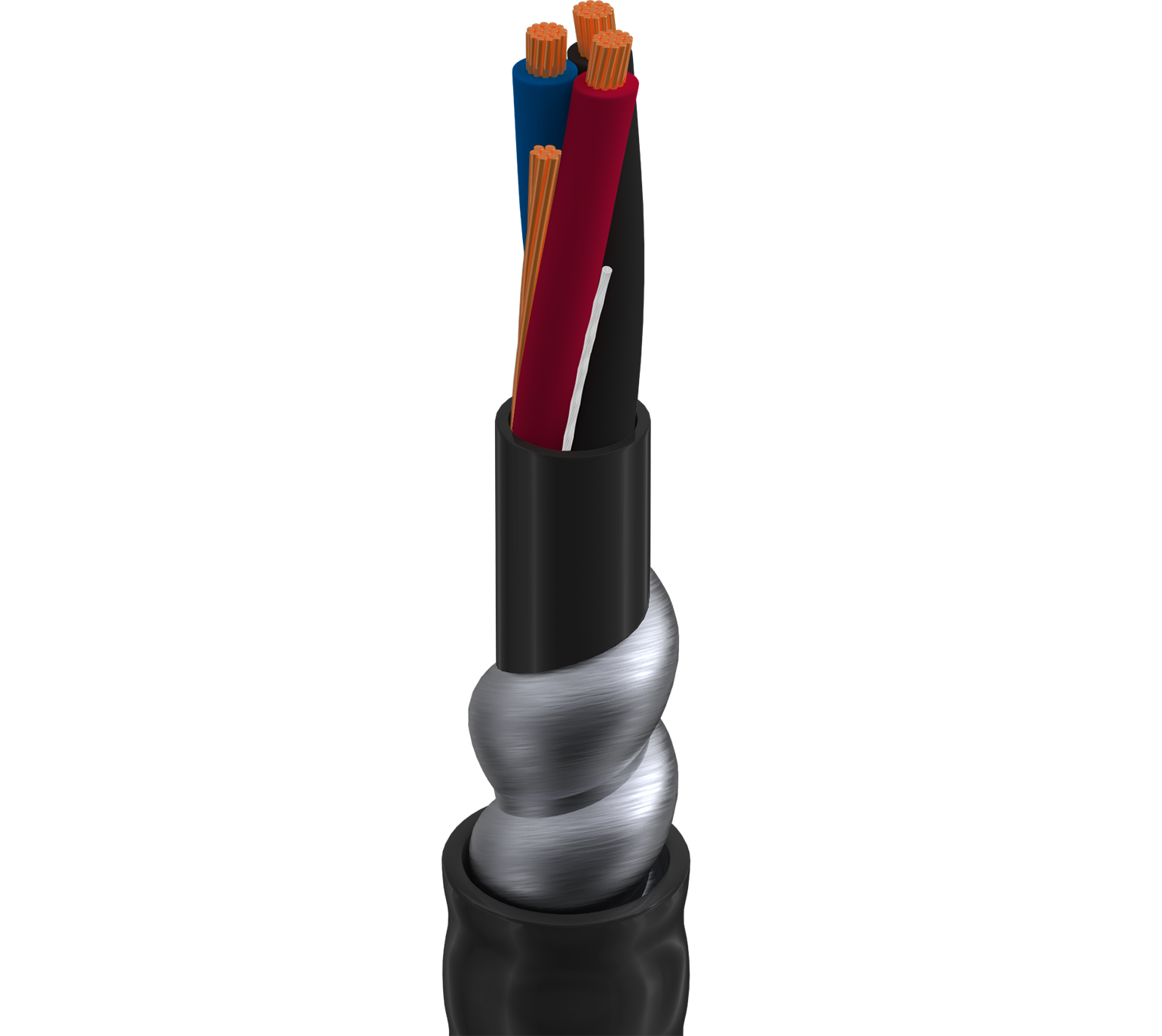

Teck90 1000V, 3+G C #4/0+4 Str BC, XLPE Ins M4, PVC Jkt, AIA Armor, Blk PVC Jkt, CSA HL SUN RES -40C

Teck90 1000V, 3+G Conductor 4/0+4AWG (19x9H) Bare Copper, XLPE Insulation M4 Color Code, PVC Inner Jacket, Aluminum Interlock Armor, Black PVC Outer Jacket, CSA HL SUN RES -40C

Availability: Global
Status: Active
Orderable items: 2

Ships from and sold by A5 IT.

Part numbers

6193 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Putup Type	UPC	Order
6193 010984	Reel	612825340058	Order online
6193 0102500	Reel	—	Order online

Specifications

Product Overview

Suitable Applications	Power and Control Applications up to 600V

Construction Details

Conductor

Element	No. of Elements	Size	Stranding	Material
Conductor(s)	3	4/0	19x10	BC - Bare Copper
Ground	1	4	7x12	BC - Bare Copper

Insulation

Material	XLP, XLPO, XLPE (Thermoset)
Nom. Thickness	0.081 in (2.1 mm)
Nom. Insulation Diameter	0.677 in (17.2 mm)
Color Code	Black, Red, Blue

Inner Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.083 in (2.1 mm)
Nom. Diameter	1.625 in (41.28 mm)

Armor

Armor Type & Material	AIA - Aluminum Interlock Armor
Diameter Over Armor	1.902 in (48.31 mm)

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.053 in (1.3 mm)
Nom. Diameter	2.008 in (51.00 mm)

Electrical Characteristics

Electricals

Element	Nom. Conductor DCR	Max. Current
Conductor(s)	0.052 Ohm/1000ft	24 Amps per Conductor at 30oC
Ground	0.259 Ohm/1000ft (0.850 Ohm/km)

Voltage

Voltage Rating	1000 V (TECK 90)

Mechanical Characteristics

Max. Pull Tension	8217.6 lbs (3727.4 kg)
Bulk Cable Weight	3160 lbs/1000ft

Temperature

UL Temperature	90°C
Operating	-40°C To +90°C
Installation	-25°C To +90°C

Bend Radius

Stationary Min.	16.064 in (408.03 mm)
Installation Min.	16.064 in (408.03 mm)

Standards and Compliance

Environmental Suitability	Indoor, Outdoor, Sunlight Resistance, Burial
CEC / C(UL) Compliance	TECK 90, HL.
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
