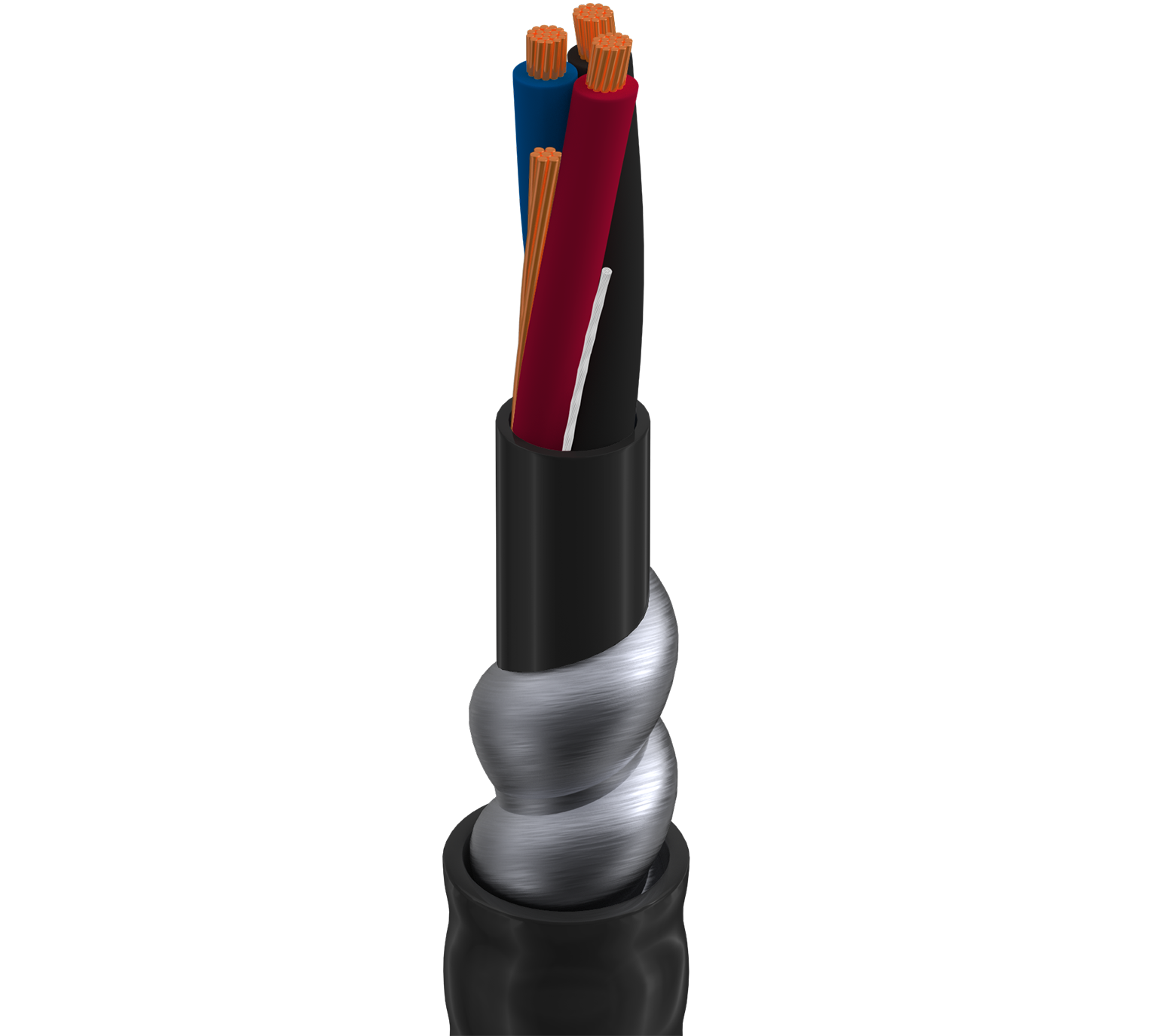

Teck90 600V, 7+G C #12+14 Str BC, XLPE Ins M4, PVC Jkt, SIA Armor, Blk PVC Jkt, CSA HL SUN RES -40C
Teck90 600V, 7+G Conductor 12+14AWG (7x20) Bare Copper, XLPE Insulation M4 Color Code, PVC Inner Jacket, Steel Interlock Armor, Black PVC Outer Jacket, CSA HL SUN RES -40C
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
6145 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Put-Up Type | Order |
|---|---|---|
| 6145 010984 | Reel | Order online |
Specifications
Information
| Put-Up Type | Reel |
|---|---|
| Update and Revision | Revision Number: 0.87 Revision Date: 03-25-2026 |
Product Overview
| Suitable Applications | CEC Power and Control Applications |
|---|
Physical Characteristics (Overall)
| Conductor Count | 7 |
|---|
Conductor
| Element | AWG | Stranding | Material | No. of Conductors |
|---|---|---|---|---|
| Conductor(s) | 12 | 7x20 | BC - Bare Copper | 7 |
| Ground | 14 | 7x22 | BC - Bare Copper | 1 |
Insulation
| Element | Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|---|
| Conductor(s) | XLP, XLPO, XLPE (Thermoset) | 0.174 in | 0.030 in |
| Ground Wire | No Insulation |
Color Chart
| Color | Black and Numbered |
|---|
Inner Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Color | Black |
| Ripcord | Yes |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nominal Diameter | 0.897 in |
| Nominal Wall Thickness | 0.053 in |
Construction and Dimensions
Armor
| Type of Armor | Interlocked |
|---|---|
| Material | Steel |
Electrical Characteristics
Conductor DCR
| Nominal Conductor DCR | 1.65 ohms/1000 ft |
|---|
Voltage
| Non-UL Description | TECK 90 |
|---|
Temperature Range
| Operating Temperature Range | -40°C To +90°C |
|---|
Mechanical Characteristics
| Bulk Cable Weight | 605 lbs/1000ft |
|---|---|
| Maximum Recommended Pulling Tension | 318 lbs |
| Minimum Bend Radius During Installation | 10.8 in |
Suitability
| Suitability - Indoor | Yes |
|---|---|
| Suitability - Outdoor | Yes |
| Suitability - Sunlight Resistance | Yes |
History
| Update and Revision | Revision Number: 0.87 Revision Date: 03-25-2026 |
|---|
