Product Number: 29007

ACIC 600V, 20+G C #16 Str BC, XLPE Ins, PVC Jkt, AIA Armor, PVC Jkt, 90C Dry/Wet CSA HL SUN RES -40C

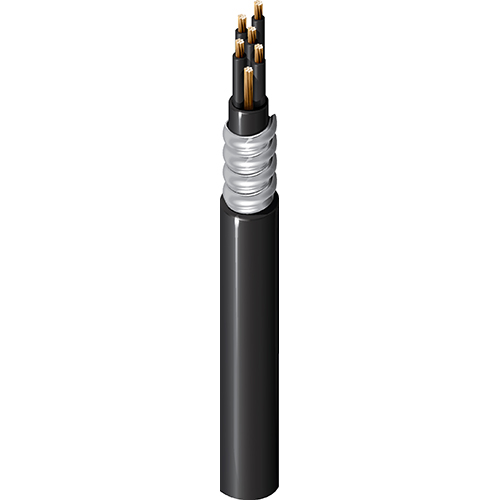

Canadian Instrumentation Cable TC-ACIC 600V, 20+G Conductor 16AWG (7x24) Bare Copper, XLPE Insulation, PVC Inner Jacket, Aluminum Interlock Armor, PVC Outer Jacket, 90C Dry/Wet CSA HL SUN RES -40C

Availability: Global
Status: Active
Orderable items: 2

Ships from and sold by A5 IT.

Part numbers

29007 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Putup Type	UPC	Order
29007 J225000	Reel	612825331292	Order online
29007 J225000	Reel	—	Order online

Specifications

Information

Put-Up Type	Reel
Update and Revision	Revision Number: 0.411 Revision Date: 02-20-2026

Product Overview

Suitable Applications	Power and Control Applications up to 600V

Construction Details

Armor Table Notes	Seprator -Corrugated Mylar Tape
Overall Cable Diameter (Nominal)	1.121 in

Conductor

Element	No. of Elements	Size	Stranding	Material
Conductor(s)	20	16 AWG	7x24	BC - Bare Copper
Ground Wire	1	16 AWG	7x24	BC - Bare Copper

Insulation

Element	Material	Nom. Thickness	Nom. Insulation Diameter	Color Code
Conductor(s)	XLP, XLPO, XLPE (Thermoset)	0.030 in (0.76 mm)	0.118 in (3.00 mm)	White and Numbered, Black and Numbered
Ground Wire	XLP, XLPO, XLPE (Thermoset)	0.030 in (0.76 mm)	0.118 in (3.00 mm)	Green

Outer Shield

Material	No Shield

Inner Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.063 in (1.6 mm)
Nom. Diameter	0.757 in (19.2 mm)
Ripcord	Yes
Color	Black

Armor

Armor Type & Material	AIA - Aluminum Interlock Armor
Armor Thickness	0.034 in
Diameter Over Armor	1.017 in

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.052 in (1.3 mm)
Nom. Diameter	1.121 in

Electrical Characteristics

Electricals

Element	Nom. Conductor DCR	Max. Current
Conductor(s)	4.2 Ohm/1000ft	12.6 Amps per Conductor at 30oC
Ground Wire	4.2 Ohm/1000ft (14 Ohm/km)	10 Amps per Conductor at 25oC

Voltage

Voltage Rating	600 V

Mechanical Characteristics

Max. Pull Tension	950 lbs (430 kg)
Bulk Cable Weight	607 lbs/1000ft

Temperature

Operating	-40°C To +90°C

Bend Radius

Stationary Min.	13.45 in (341.6 mm)
Installation Min.	13.45 in

Standards and Compliance

Environmental Suitability	Indoor, Outdoor, Sunlight Resistance, Burial
CEC / C(UL) Compliance	HL, ACIC.
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
