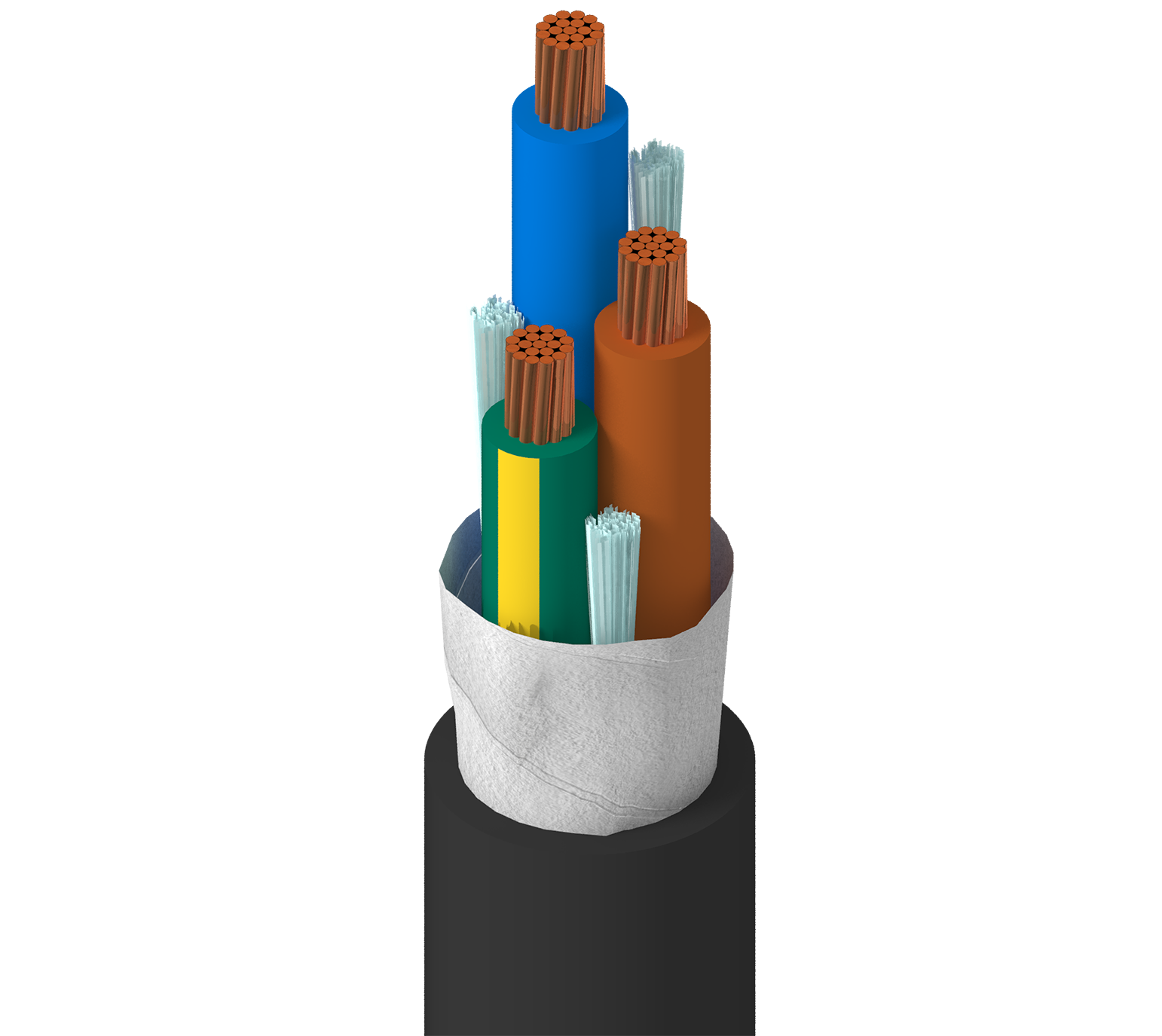

Portable Cordage, 3 C #18 Str BC, PVC Ins, PVC Jkt, UL Type SJTOW
Portable Cordage, 3 Conductor 18AWG (42x34) Bare Copper, PVC Insulation, PVC Outer Jacket, UL Type SJTOW
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
19509 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Footnote | Order |
|---|---|---|---|---|---|---|
| 19509 B59250 | Black, Matte | Reel | 250 ft | 612825127178 | C | Order online |
Specifications
Product Overview
| Suitable Applications | Portable cordage for supplying power to appliances and tools |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.315 in (8.00 mm) |
|---|
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 3 |
| Size | 18 AWG |
| Stranding | 42x34 |
| Material | BC - Bare Copper |
| Notes | 0.824mm2 |
Insulation
| Element | Conductor(s) |
|---|---|
| Material | PVC - Polyvinyl Chloride |
| Nom. Thickness | 0.032 in (0.81 mm) |
| Nom. Insulation Diameter | 0.110 in (2.79 mm) |
| Color Code | Light Blue, Brown, Green/Yellow |
Outer Jacket
| Separator | Paper Tape |
|---|---|
| Material | PVC - Polyvinyl Chloride |
| Nom. Thickness | 0.038 in (0.97 mm) |
| Nom. Diameter | 0.315 in (8.00 mm) |
Electrical Characteristics
Electricals
| Element | Conductor(s) |
|---|---|
| Nom. Conductor DCR | 6.97 Ohm/1000ft |
| Max. Current | 7 Amps per conductor @ 30°C |
Voltage
| UL Voltage Rating | 300 V (Type SJTOW) |
|---|
Mechanical Characteristics
| Max. Pull Tension | 61.5 lbs (27.9 kg) |
|---|---|
| Bulk Cable Weight | 50 lbs/1000ft |
Temperature
| UL Temperature | 105°C |
|---|---|
| Operating | -20°C to +105°C |
Bend Radius
| Stationary Min. | 3.2 in (81 mm) |
|---|---|
| Installation Min. | 3.2 in (81 mm) |
Standards and Compliance
| Environmental Suitability | Outdoor, Oil Resistance |
|---|---|
| Flammability / Reaction to Fire | VW-1 |
| NEC / UL Compliance | SJTOW |
| AWM Compliance | SJTOW |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
Product Notes
| Notes | Approved as water resistant, oil resistant and outdoor use. |
|---|
History
| Update and Revision | Revision Number: 0.529 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
