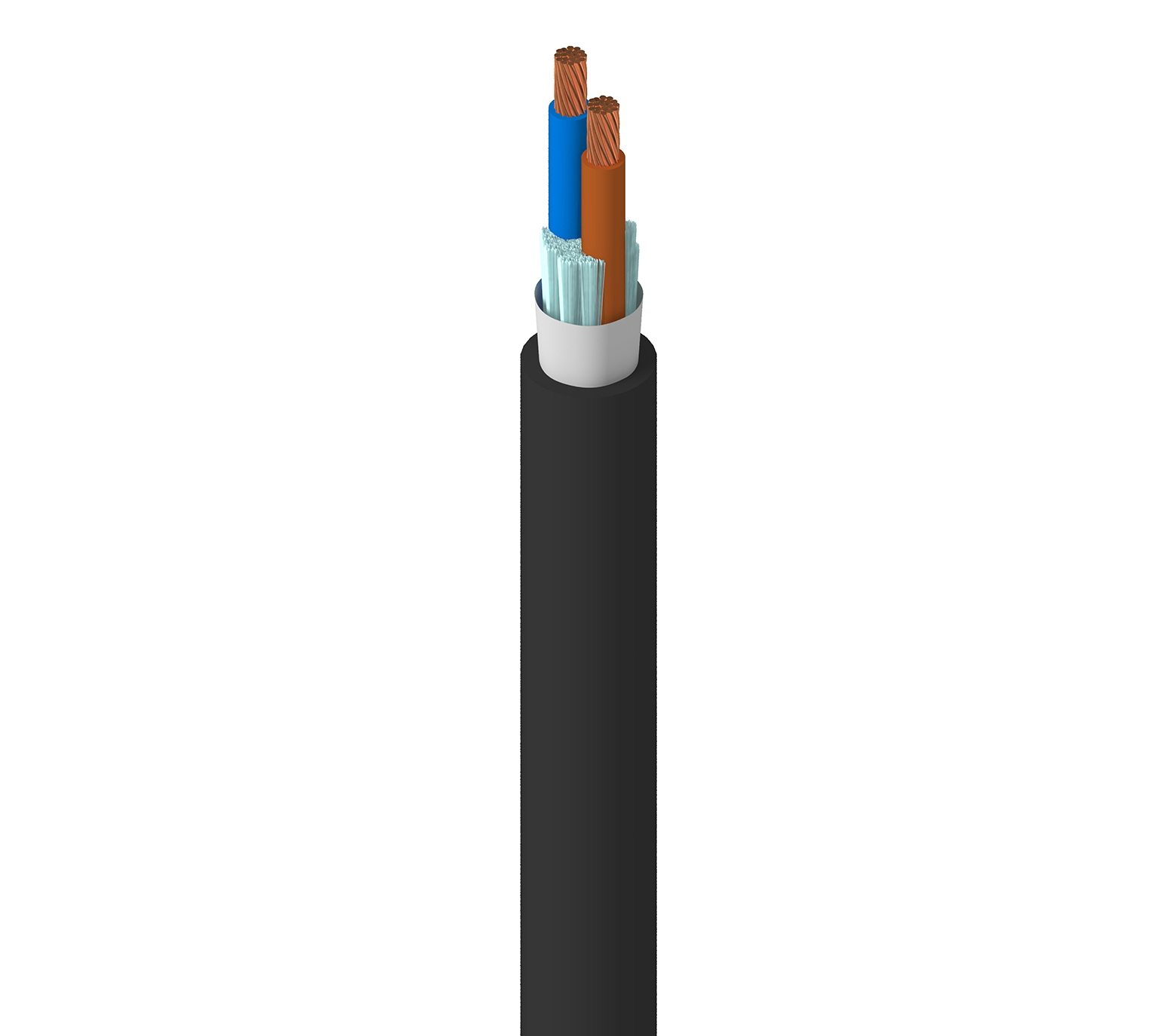

Portable Cordage, 2 C #14 Str BC, PVC Ins, PVC Jkt, UL Type SJTOW-A
Portable Cordage, 2 Conductor 14AWG (41x30) Bare Copper, PVC Insulation, PVC Outer Jacket, UL Type SJTOW-A
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
19508 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Footnote | Order |
|---|---|---|---|---|---|---|
| 19508 B59250 | Black, Matte | Reel | 250 ft | 612825127161 | C | Order online |
Specifications
Construction Details
| Overall Cable Diameter (Nominal) | 0.348 in |
|---|
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 2 |
| Size | 14 AWG |
| Stranding | 41x30 |
| Material | BC - Bare Copper |
Insulation
| Element | Conductor(s) |
|---|---|
| Material | PVC - Polyvinyl Chloride |
| Nom. Thickness | 0.033 in (0.84 mm) |
| Nom. Insulation Diameter | 0.139 in (3.53 mm) |
| Color Code | Blue, Brown |
Outer Shield
| Material | No Shield |
|---|
Outer Jacket
| Separator | Paper Tape |
|---|---|
| Material | PVC - Polyvinyl Chloride |
| Nom. Thickness | 0.032 in (0.81 mm) |
| Nom. Diameter | 0.348 in |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | 2.76 Ohm/1000ft |
|---|---|
| Max. Current | 15 Amps per Conductor at 25oC (10 Amps over 50 ft) |
Voltage
| UL Voltage Rating | 300 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 106.6 lbs (48.35 kg) |
|---|---|
| Bulk Cable Weight | 62 lbs/1000ft |
Temperature
| UL Temperature | 105°C Dry, 60°C Wet |
|---|---|
| Operating | -35°C To +60°C Wet/105°C Dry |
Bend Radius
| Stationary Min. | 3.48 in (88.4 mm) |
|---|---|
| Installation Min. | 3.48 in |
Standards and Compliance
| Environmental Suitability | Indoor, Outdoor, Sunlight Resistance, Oil Resistance |
|---|---|
| Flammability / Reaction to Fire | VW-1 |
| NEC / UL Compliance | Article 400, SJTOW |
| AWM Compliance | SJTOW |
| CEC / C(UL) Compliance | LL7874. |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
Product Notes
| Notes | Oil Resistant Jacket |
|---|
History
| Update and Revision | Revision Number: 0.396 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
