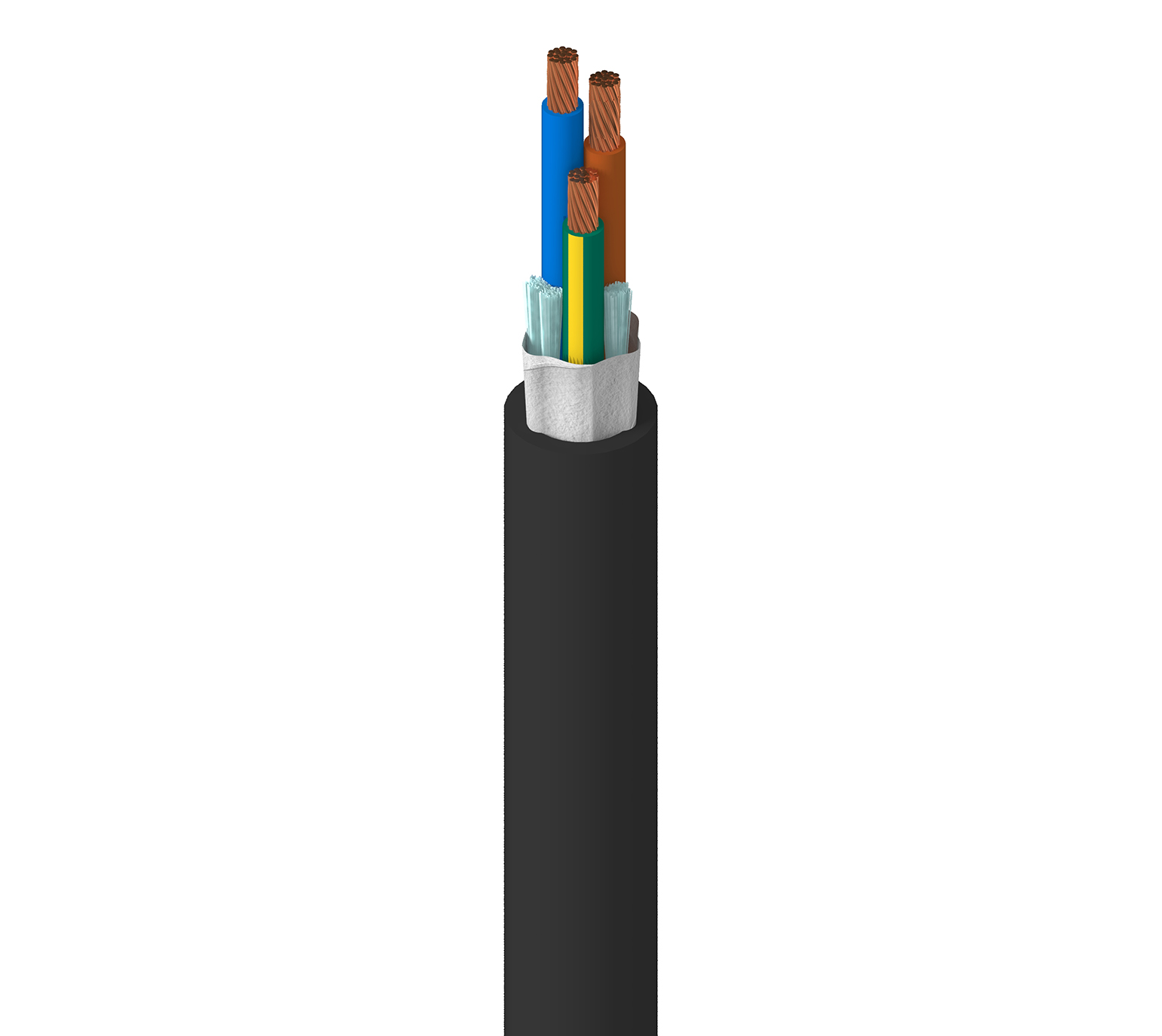

Portable Cordage, 3 C #18 Str BC, PVC Ins, PVC Jkt, UL Type STOW
Portable Cordage, 3 Conductor 18AWG (42x34) Bare Copper, PVC Insulation, PVC Outer Jacket, UL Type STOW
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
19503 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Order |
|---|---|---|---|---|---|
| 19503 B59250 | Black, Matte | Reel | 250 ft | 612825127116 | Order online |
Specifications
Construction Details
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 3 |
| Size | 18 AWG |
| Stranding | 42x34 |
| Material | BC - Bare Copper |
Insulation
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.032 in (0.81 mm) |
| Nom. Insulation Diameter | 0.110 in (2.79 mm) |
| Color Code | Blue, Brown, Green/Yellow |
Outer Jacket
| Separator | Paper Tape |
|---|---|
| Material | PVC - Polyvinyl Chloride |
| Nom. Thickness | 0.07 in (1.8 mm) |
| Nom. Diameter | 0.38 in |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | Max. Current |
|---|---|
| 6.97 Ohm/1000ft | 10 Amps per Conductor at 25oC (7 Amps over 50 ft) |
| 7 Amps per Conductor at 25oC (over 50 ft) |
Voltage
| UL Voltage Rating | 600 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 63.9 lbs (29.0 kg) |
|---|---|
| Bulk Cable Weight | 68 lbs/1000ft |
Temperature
| UL Temperature | 60°C |
|---|---|
| Operating | -35°C To +105 °C |
Standards and Compliance
| Environmental Suitability | Outdoor, Oil Resistance |
|---|---|
| Flammability / Reaction to Fire | VW-1 |
| NEC / UL Compliance | Article 400, STOW |
| AWM Compliance | STOW |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
Product Notes
| Notes | Approved as water resistant, oil resistant and outdoor use. |
|---|
History
| Update and Revision | Revision Number: 0.398 Revision Date: 09-07-2025 |
|---|
