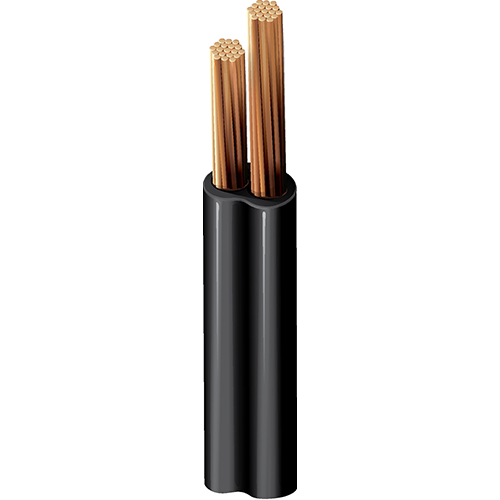

Portable Cordage, (2) 16 AWG (105x36) BC, CPE, Type HPN
Two 16 AWG stranded (105x36) bare copper conductors, CPE insulation.
- Availability
- Global
- Status
- Active
Specifications
Physical Characteristics (Overall)
| Conductor Count | 2 |
|---|
Conductor
| AWG | 16 |
|---|---|
| Stranding | 105x36 |
| Material | BC - Bare Copper |
| No. of Conductors | 2 |
Insulation
| Material | CPE - Chlorinated Polyethylene |
|---|---|
| Nominal Wall Thickness | 0.043 in |
Outer Shield
| Material | No Shield |
|---|
Outer Jacket
| Nominal Diameter | 0.152 x 0.3 in |
|---|
Construction and Dimensions
| Type of Cordage | HPN |
|---|
Electrical Characteristics
| Electrical Characteristics Notes | Dielectric Withstand Voltage: 1500 V AC Applied For 1 Min |
|---|
Current
| Max. Recommended Current [A] |
|---|
| 15 Amps per Conductor at 25oC (12 Amps over 50 ft) |
| 15 Amps per Conductor at 25oC |
Voltage
| Dielectric Withstand Voltage | 1500 V AC Applied For 1 Min. |
|---|---|
| UL Voltage Rating | 300 V RMS |
Mechanical Characteristics
| Bulk Cable Weight | 36 lbs/1000ft |
|---|---|
| Minimum Minor Axis Bend Radius | 1.75 in |
Standards
| NEC/(UL) Compliance | HPN |
|---|---|
| CSA AWM Compliance | HPN |
Applicable Environmental and Other Programs
| EU Directive 2000/53/EC (ELV) | Yes |
|---|---|
| EU Directive 2003/96/EC (BFR) | Yes |
| EU Directive 2011/65/EU (RoHS 2) | Yes |
| EU Directive 2012/19/EU (WEEE) | Yes |
| EU Directive Compliance | EU Directive 2003/11/EC (BFR) |
| EU CE Mark | Yes |
| MII Order #39 (China RoHS) | Yes |
Flammability, LS0H, Toxicity Testing
| UL Flammability | VW-1 |
|---|---|
| CSA Flammability | FT2 |
| UL voltage rating | 300 V RMS |
Plenum/Non-Plenum
| Plenum (Y/N) | No |
|---|
History
| Update and Revision | Revision Number: 0.193 Revision Date: 05-31-2024 |
|---|
