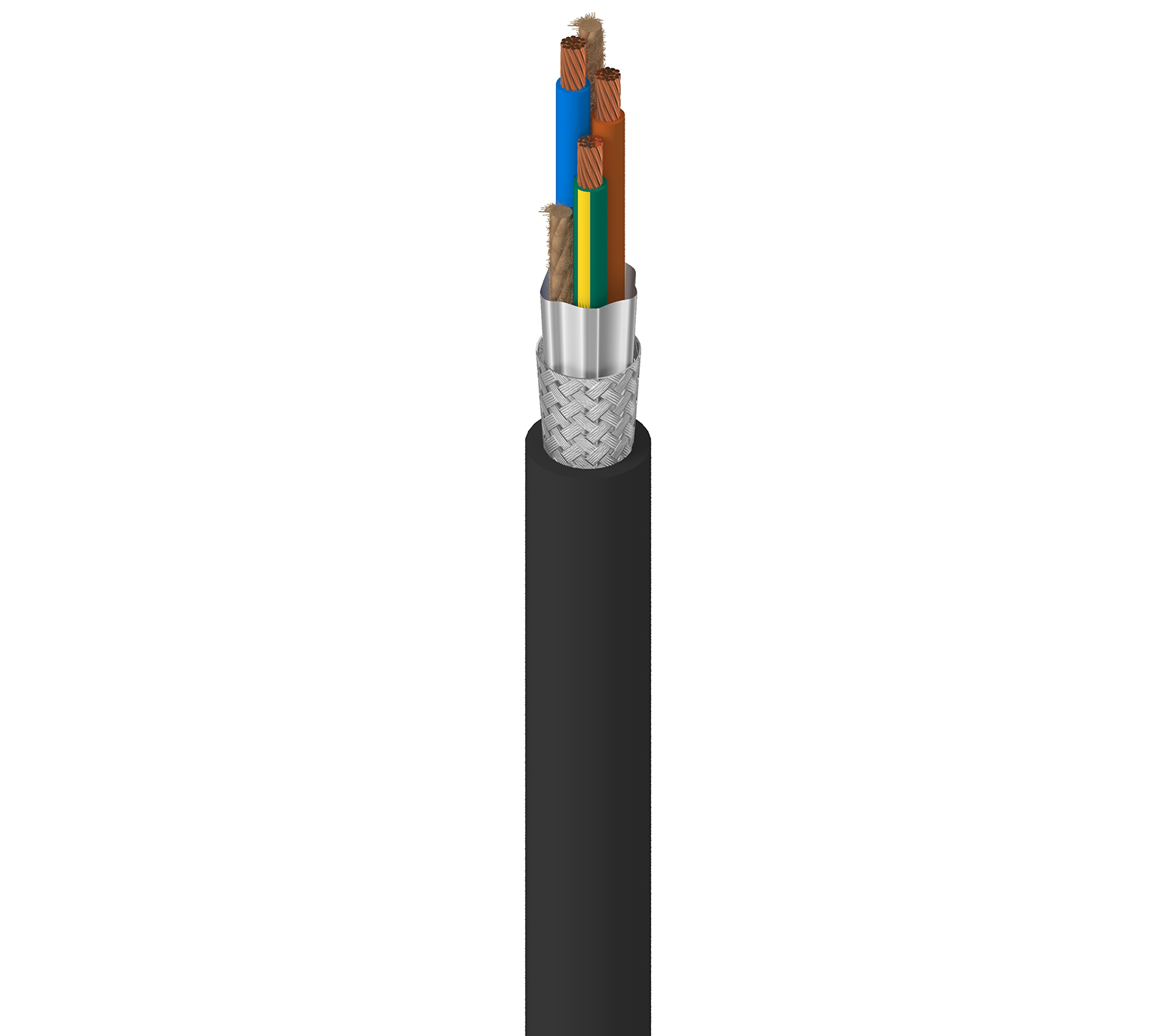

Portable Cordage, 3 C #18 Str BC, PVC Ins, PVC Jkt, UL Type SVT
Portable Cordage, 3 Conductor 18AWG (42x34) Bare Copper, PVC Insulation, PVC Outer Jacket, UL Type SVT
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
19403 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Footnote | Order |
|---|---|---|---|---|---|---|
| 19403 010250 | Black | Reel | 250 ft | 612825127055 | C F | Order online |
Specifications
Construction Details
| Overall Cable Diameter (Nominal) | 0.307 in |
|---|
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 3 |
| Size | 18 AWG |
| Stranding | 42x34 |
| Material | BC - Bare Copper |
Insulation
| Element | Conductor(s) |
|---|---|
| Material | PVC - Polyvinyl Chloride |
| Nom. Thickness | 0.018 in (0.46 mm) |
| Nom. Insulation Diameter | 0.84 in (21 mm) |
| Color Code | Blue, Brown, Green/Yellow |
Outer Shield
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Tri-Laminate (Alum+Poly+Alum) | 100% | 22 AWG (7x30) TC |
| Braid | Tinned Copper (TC) | 88% |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.038 in (0.97 mm) |
| Nom. Diameter | 0.307 in |
Electrical Characteristics
| Nom Outer Shield DCR | 2.69 Ohm/1000ft (8.83 Ohm/km) |
|---|
Electricals
| Nom. Conductor DCR | 6.97 Ohm/1000ft |
|---|---|
| Max. Current | 10 Amps per Conductor at 25oC (7 Amps over 50 ft) |
Voltage
| UL Voltage Rating | 300 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 114 lbs (51.7 kg) |
|---|---|
| Bulk Cable Weight | 65 lbs/1000ft |
Temperature
| UL Temperature | 60°C |
|---|---|
| Operating | -20°C To +60°C |
Bend Radius
| Stationary Min. | 3.07 in (78.0 mm) |
|---|---|
| Installation Min. | 3.07 in |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| NEC / UL Compliance | Article 400, SVT |
| AWM Compliance | SVT |
| CEC / C(UL) Compliance | LL7874. |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.402 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP., F - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'. |
