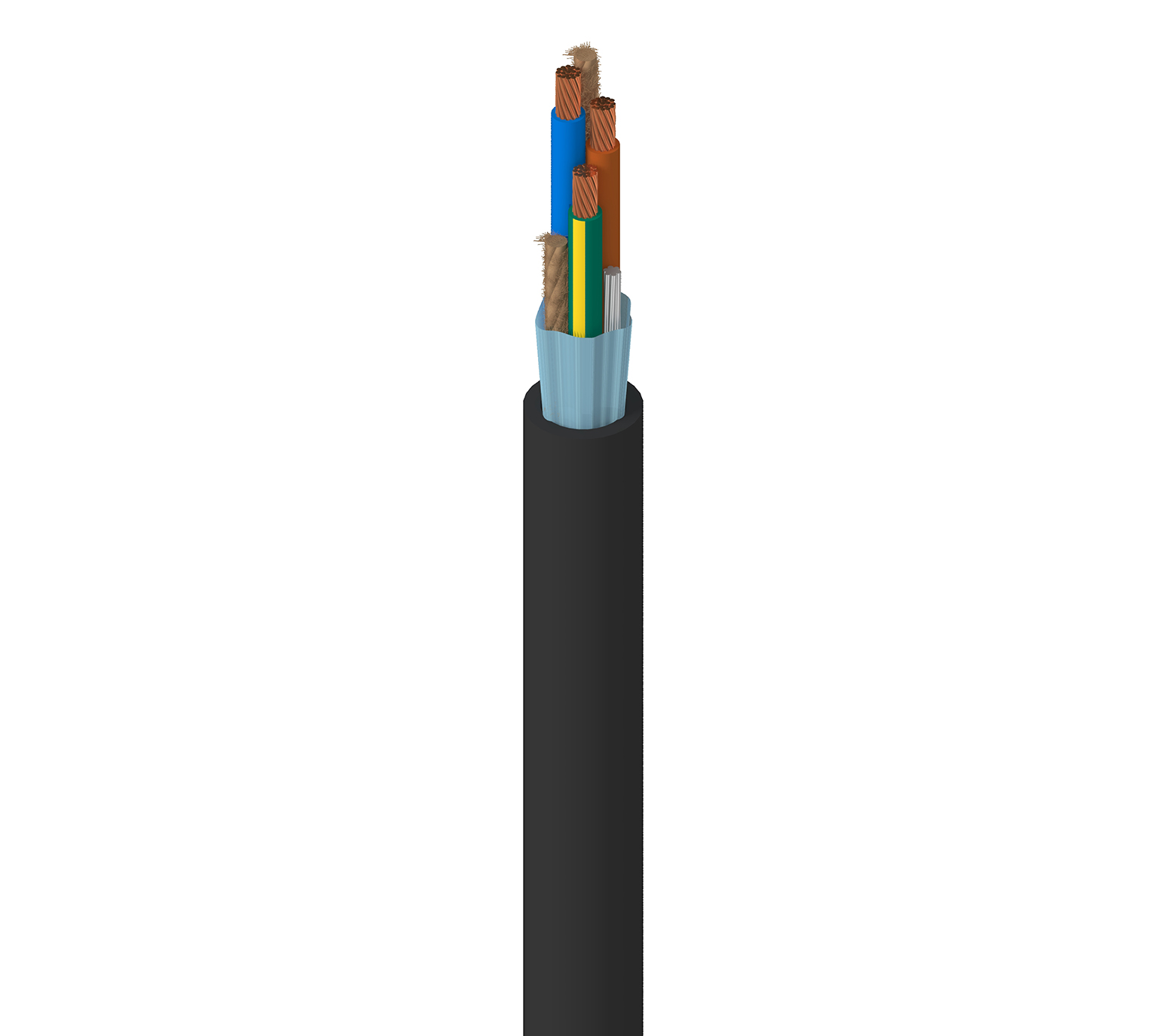

Portable Cordage, 3 C #16 Str BC, PVC Ins, PVC Jkt, UL Type SJT
Portable Cordage, 3 Conductor 16AWG (65x34) Bare Copper, PVC Insulation, PVC Outer Jacket, UL Type SJT
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
19363 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Footnote | Order |
|---|---|---|---|---|---|---|
| 19363 010250 | Black | Reel | 250 ft | 612825127000 | C | Order online |
Specifications
Product Overview
| Suitable Applications | Portable cordage and cordage |
|---|
Construction Details
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 3 |
| Size | 16 |
| Stranding | 65x34 |
| Material | BC - Bare Copper |
Insulation
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.033 in (0.84 mm) |
| Nom. Insulation Diameter | 0.124 in (3.15 mm) |
| Color Code | Brown, Blue, Green/Yellow |
Outer Shield
| Shield Type | Tape |
|---|---|
| Material | Bi-Laminate (Alum+Poly) |
| Coverage | 100% |
| Drainwire Type | 20 AWG (7x28) TC |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.047 in (1.2 mm) |
| Nom. Diameter | 0.365 in (9.27 mm) |
Electrical Characteristics
| Nom Outer Shield DCR | 6.6 Ohm/1000ft (22 Ohm/km) |
|---|
Electricals
| Nom. Conductor DCR | Max. Current |
|---|---|
| 4.4 Ohm/1000ft | 13 Amps per Conductor at 25oC (10 Amps over 50 ft) |
| 10 Amps per Conductor at 25oC (over 50 ft) |
Voltage
| UL Voltage Rating | 300 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 105.3 lbs (47.76 kg) |
|---|---|
| Bulk Cable Weight | 77 lbs/1000ft |
Temperature
| UL Temperature | 60°C |
|---|
Bend Radius
| Stationary Min. | 3.65 in (92.7 mm) |
|---|---|
| Installation Min. | 3.65 in (92.7 mm) |
Standards and Compliance
| Environmental Suitability | Outdoor, Sunlight Resistance |
|---|---|
| NEC / UL Compliance | Article 400, SJT |
| AWM Compliance | SJT |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.510 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
