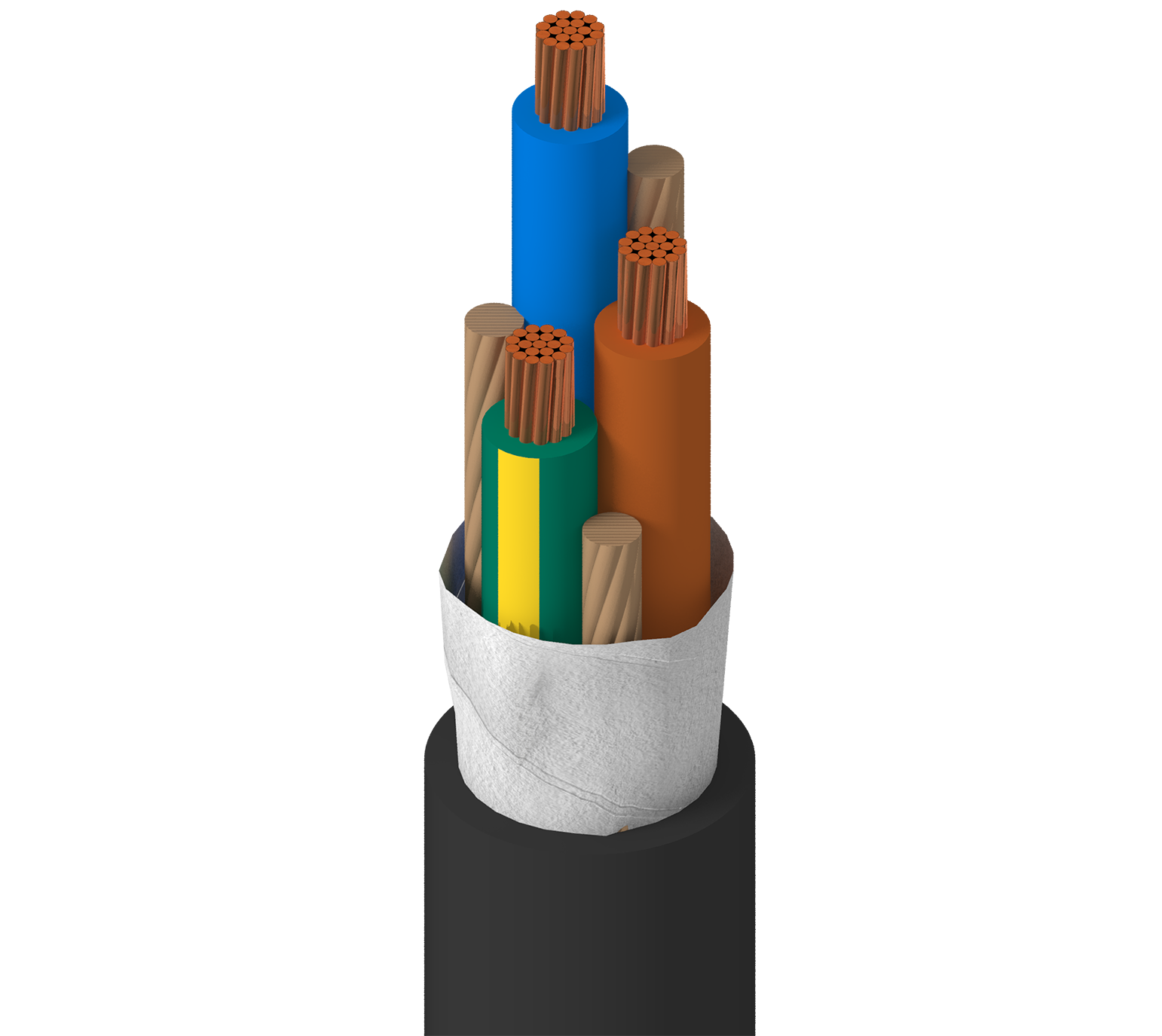

Portable Cordage, 3 C #14 Str BC, PVC Ins, PVC Jkt, UL Type SJT
Portable Cordage, 3 Conductor 14AWG (41x30) Bare Copper, PVC Insulation, PVC Outer Jacket, UL Type SJT
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
19354 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Footnote | Order |
|---|---|---|---|---|---|---|
| 19354 010250 | Black | Reel | 250 ft | 612825126973 | C | Order online |
Specifications
Product Overview
| Suitable Applications | Portable cordage for supplying power to appliances and tools |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.380 in (9.65 mm) |
|---|
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 3 |
| Size | 14 AWG |
| Stranding | 41x30 |
| Material | BC - Bare Copper |
| Notes | 2.08mm2 |
Insulation
| Element | Conductor(s) |
|---|---|
| Material | PVC - Polyvinyl Chloride |
| Nom. Thickness | 0.033 in (0.84 mm) |
| Nom. Insulation Diameter | 0.141 in (3.58 mm) |
| Color Code | Light Blue, Brown, Green/Yellow |
Outer Jacket
| Separator | Paper Tape |
|---|---|
| Material | PVC - Polyvinyl Chloride |
| Nom. Thickness | 0.038 in (0.97 mm) |
| Nom. Diameter | 0.380 in (9.65 mm) |
Electrical Characteristics
Electricals
| Element | Conductor(s) |
|---|---|
| Nom. Conductor DCR | 2.76 Ohm/1000ft |
| Max. Current | 15 Amps per conductor @ 30°C |
Voltage
| UL Voltage Rating | 300 V (Type SJT) |
|---|
Mechanical Characteristics
| Max. Pull Tension | 159.9 lbs (72.53 kg) |
|---|---|
| Bulk Cable Weight | 92 lbs/1000ft |
Temperature
| UL Temperature | 60°C |
|---|---|
| Operating | -20°C to +60°C |
Bend Radius
| Stationary Min. | 3.8 in (97 mm) |
|---|---|
| Installation Min. | 3.8 in (97 mm) |
Standards and Compliance
| NEC / UL Compliance | SJT |
|---|---|
| AWM Compliance | SJT |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.525 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
