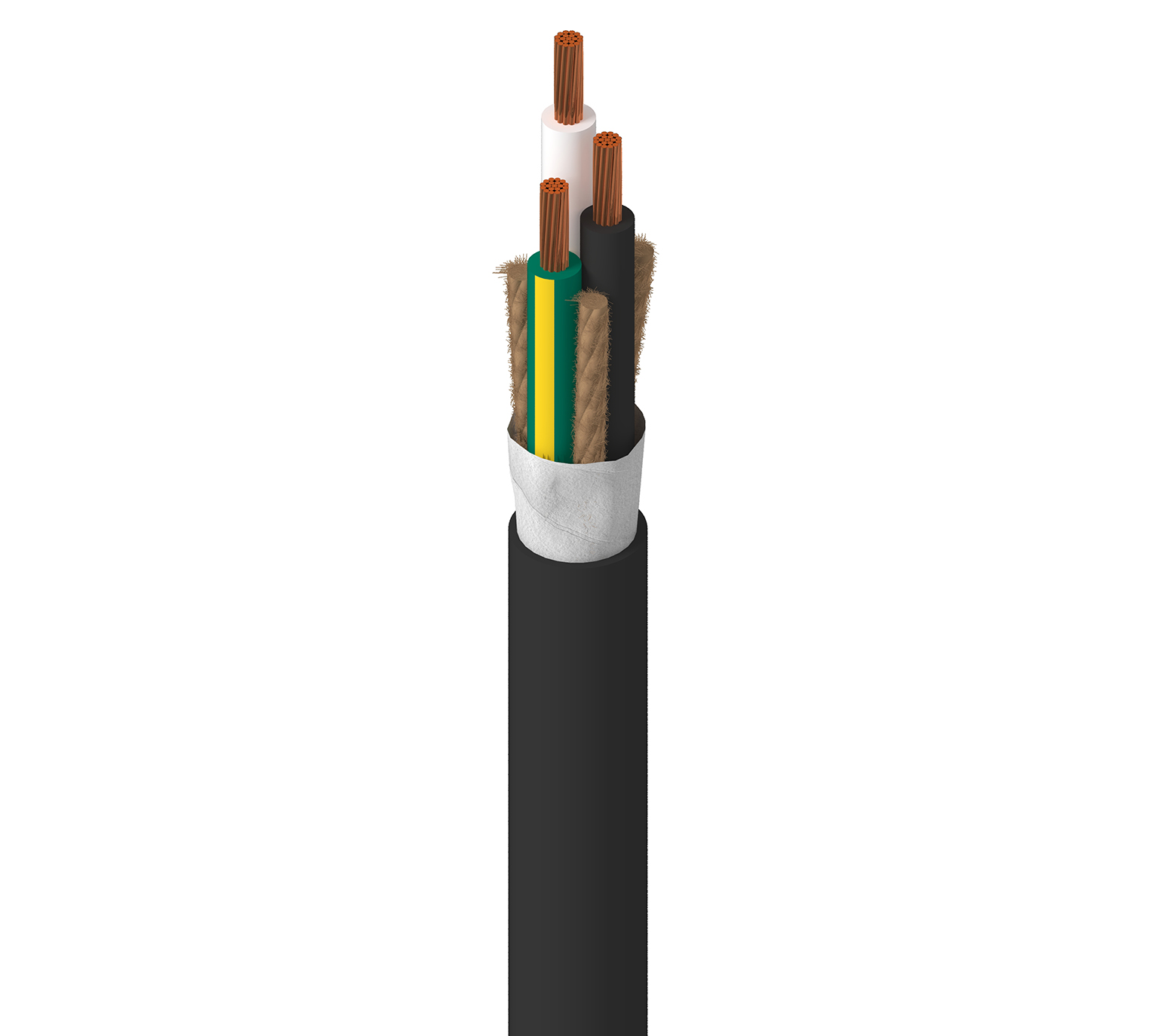

Portable Cordage, 3 C #16 Str BC, PVC Ins, PVC Jkt, UL Type SJT
Portable Cordage, 3 Conductor 16AWG (65x34) Bare Copper, PVC Insulation, PVC Outer Jacket, UL Type SJT
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
19349 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Footnote | Order |
|---|---|---|---|---|---|---|
| 19349 010250 | Black | Reel | 250 ft | 612825126935 | C | Order online |
| 19349 008250 | Gray | Reel | 250 ft | 612825126928 | C F | Order online |
Specifications
Product Overview
| Suitable Applications | Portable cordage and cordage |
|---|
Construction Details
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 3 |
| Size | 16 |
| Stranding | 65x34 |
| Material | BC - Bare Copper |
Insulation
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.033 in (0.84 mm) |
| Nom. Insulation Diameter | 0.123 in (3.12 mm) |
| Color Code | Green/Yellow, Black, White |
Outer Jacket
| Separator | Paper Tape |
|---|---|
| Material | PVC - Polyvinyl Chloride |
| Nom. Thickness | 0.038 in (0.97 mm) |
| Nom. Diameter | 0.34 in (8.6 mm) |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | 4.4 Ohm/1000ft |
|---|---|
| Max. Current | 13 Amps per Conductor at 25oC |
Voltage
| UL Voltage Rating | 300 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 105.3 lbs (47.76 kg) |
|---|---|
| Bulk Cable Weight | 67 lbs/1000ft |
Temperature
| UL Temperature | 60°C |
|---|
Bend Radius
| Stationary Min. | 3.4 in (86 mm) |
|---|---|
| Installation Min. | 3.4 in (86 mm) |
Standards and Compliance
| Environmental Suitability | Outdoor, Sunlight Resistance |
|---|---|
| NEC / UL Compliance | Article 400, SJT |
| AWM Compliance | SJT |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.486 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP., F - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'. |
