Product Number: 19216

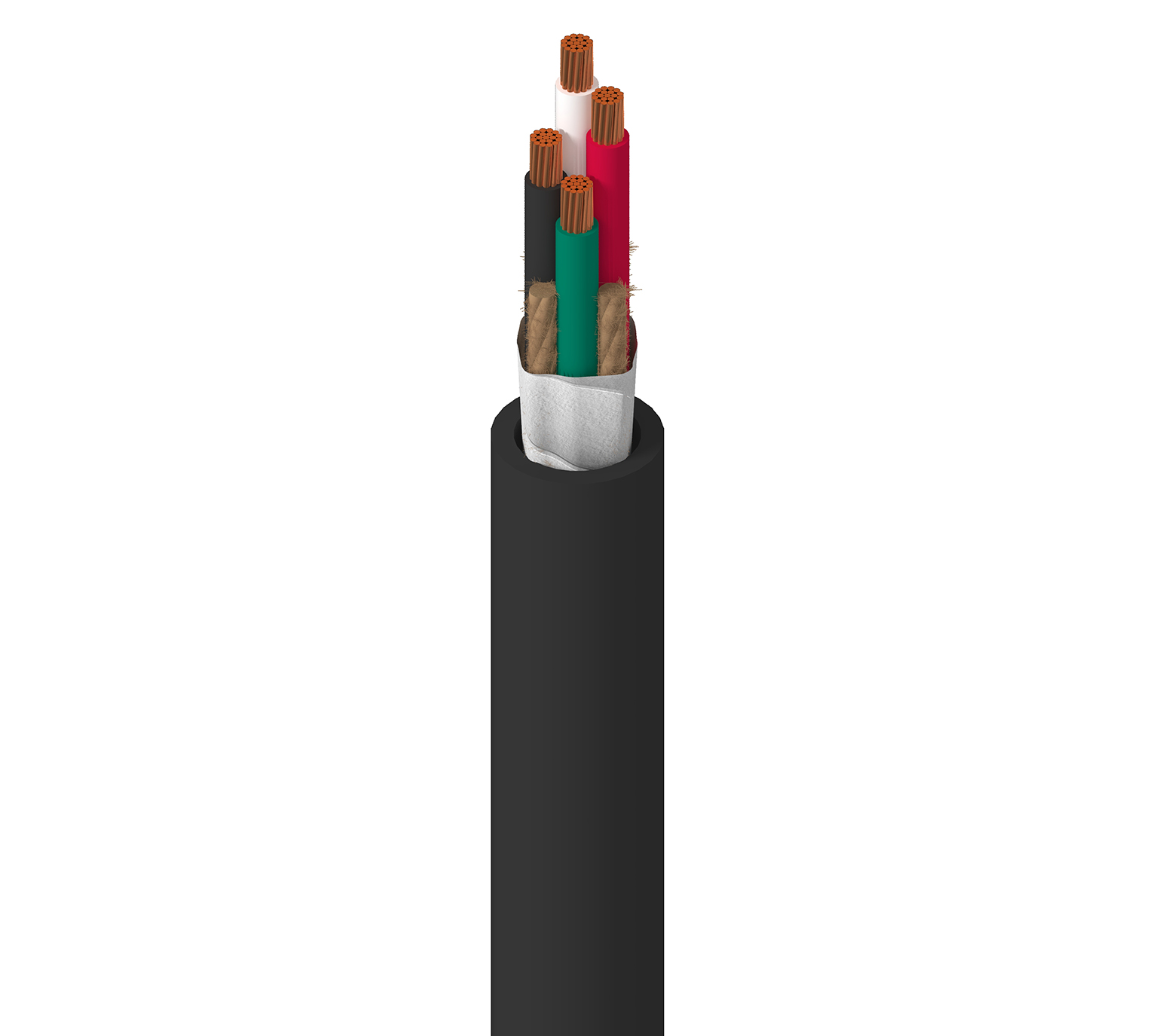

Portable Cordage, 4 C #12 Str BC, EPDM Ins, CPE Jkt, UL Type SO

Name: Belden 19216
Brand: Belden
SKU: 19216

Portable Cordage, 4 Conductor 12AWG (65x30) Bare Copper, EPDM Insulation, CPE Outer Jacket, UL Type SO

Ships from and sold by A5 IT.

Part numbers

19216 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
19216 010200	Black	Reel	200 ft	612825126829	C	Order online

Overall Cable Diameter (Nominal)	0.69 in

Element	Conductor(s)
Material	EPDM - Ethylene Propylene Diene Monomer
Nom. Thickness	0.052 in (1.3 mm)
Nom. Insulation Diameter	0.201 in (5.11 mm)
Color Code	Black, White, Green, Red

Material	No Shield

Separator	Paper Tape
Material	CPE - Chlorinated Polyethylene (Thermoset)
Nom. Thickness	0.102 in (2.59 mm)
Nom. Diameter	0.69 in

Nom. Conductor DCR	1.7 Ohm/1000ft
Max. Current	20 Amps per Conductor at 25oC (15 Amps over 50 ft)

UL Voltage Rating	600 V

Max. Pull Tension	338 lbs (153 kg)
Bulk Cable Weight	284 lbs/1000ft

UL Temperature	90°C
Operating	-20°C To +90°C

Stationary Min.	6.9 in (180 mm)
Installation Min.	6.9 in

Environmental Suitability	Indoor, Oil Resistance
NEC / UL Compliance	Article 400, SO
AWM Compliance	SO
CEC / C(UL) Compliance	LL7874.
European Directive Compliance	EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
