Product Number: 19208

Portable Cordage, 3 C #16 Str BC, EPDM Ins, CPE Jkt, UL Type SO

Name: Belden 19208
Brand: Belden
SKU: 19208

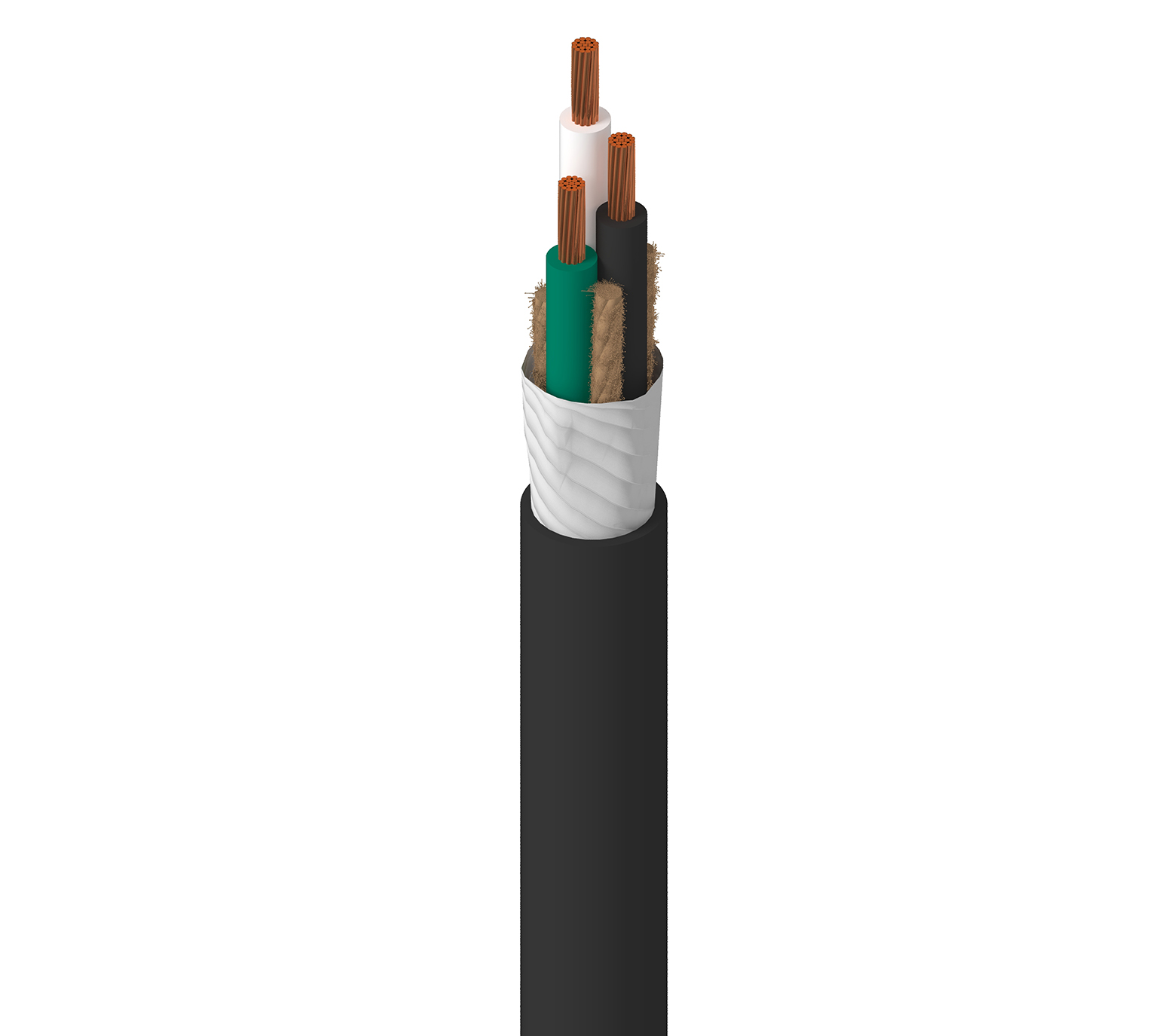

Portable Cordage, 3 Conductor 16AWG (65x34) Bare Copper, EPDM Insulation, CPE Outer Jacket, UL Type SO

Ships from and sold by A5 IT.

Part numbers

19208 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
19208 010250	Black	Reel	250 ft	612825126805	C F	Order online

Material	EPDM - Ethylene Propylene Diene Monomer
Nom. Thickness	0.030 in (0.76 mm)
Nom. Insulation Diameter	0.123 in (3.12 mm)
Color Code	White, Black, Green

Separator	Cotton Serve
Material	CPE - Chlorinated Polyethylene (Thermoset)
Nom. Thickness	0.0625 in (1.59 mm)
Nom. Diameter	0.4 in

Nom. Conductor DCR	Max. Current
4.4 Ohm/1000ft	13 Amps per Conductor at 25oC (10 Amps over 50 ft)
	10 Amps per Conductor at 25oC (over 50 ft)

UL Voltage Rating	600 V

Max. Pull Tension	105.3 lbs (47.76 kg)
Bulk Cable Weight	90 lbs/1000ft

UL Temperature	90°C

Environmental Suitability	Oil Resistance
NEC / UL Compliance	Article 400, SO
AWM Compliance	SO
European Directive Compliance	EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)

Update and Revision	Revision Number: 0.386 Revision Date: 09-07-2025
Footnote	C - CRATE REEL PUT-UP., F - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'.
