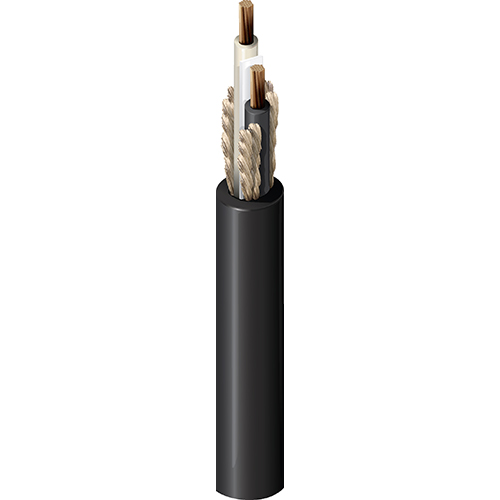

Portable Cordage, (2) 12 AWG (65x30) BC, EPDM/Rubber, Type SO
Two 12 AWG stranded (65x30) bare copper conductors, EPDM insulation, rubber jacket.
- Availability
- Global
- Status
- Active
Specifications
Construction Details
| Overall Cable Diameter (Nominal) | 0.61 in |
|---|
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 2 |
| Size | 12 AWG |
| Stranding | 65x30 |
| Material | BC - Bare Copper |
Insulation
| Element | Conductor(s) |
|---|---|
| Material | EPDM - Ethylene Propylene Diene Monomer |
| Nom. Thickness | 0.052 in (1.3 mm) |
| Nom. Insulation Diameter | 0.201 in mm |
| Color Code | Black, White |
Outer Shield
| Material | No Shield |
|---|
Outer Jacket
| Separator | Paper Tape |
|---|---|
| Material | CPE - Chlorinated Polyethylene (Thermoset) |
| Nom. Thickness | 0.1 in (2.5 mm) |
| Nom. Diameter | 0.61 in |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | Max. Current |
|---|---|
| 1.7 Ohm/1000ft | 31 Amps per Conductor at 25oC (18 Amps over 50 ft) |
| 18 Amps per Conductor at 25oC (over 50 ft) |
Voltage
| UL Voltage Rating | 600 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 169 lbs (76.7 kg) |
|---|---|
| Bulk Cable Weight | 191 lbs/1000ft |
Temperature
| UL Temperature | 90°C |
|---|---|
| Operating | -25°C to 90°C |
Bend Radius
| Stationary Min. | 6.1 in (150 mm) |
|---|---|
| Installation Min. | 6.1 in |
Standards and Compliance
| Flammability / Reaction to Fire | FT2 |
|---|---|
| NEC / UL Compliance | Article 400, SO |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
Product Notes
| Notes | Overall Cabling Separator Material: Paper Tape |
|---|
History
| Update and Revision | Revision Number: 0.188 Revision Date: 05-31-2024 |
|---|
