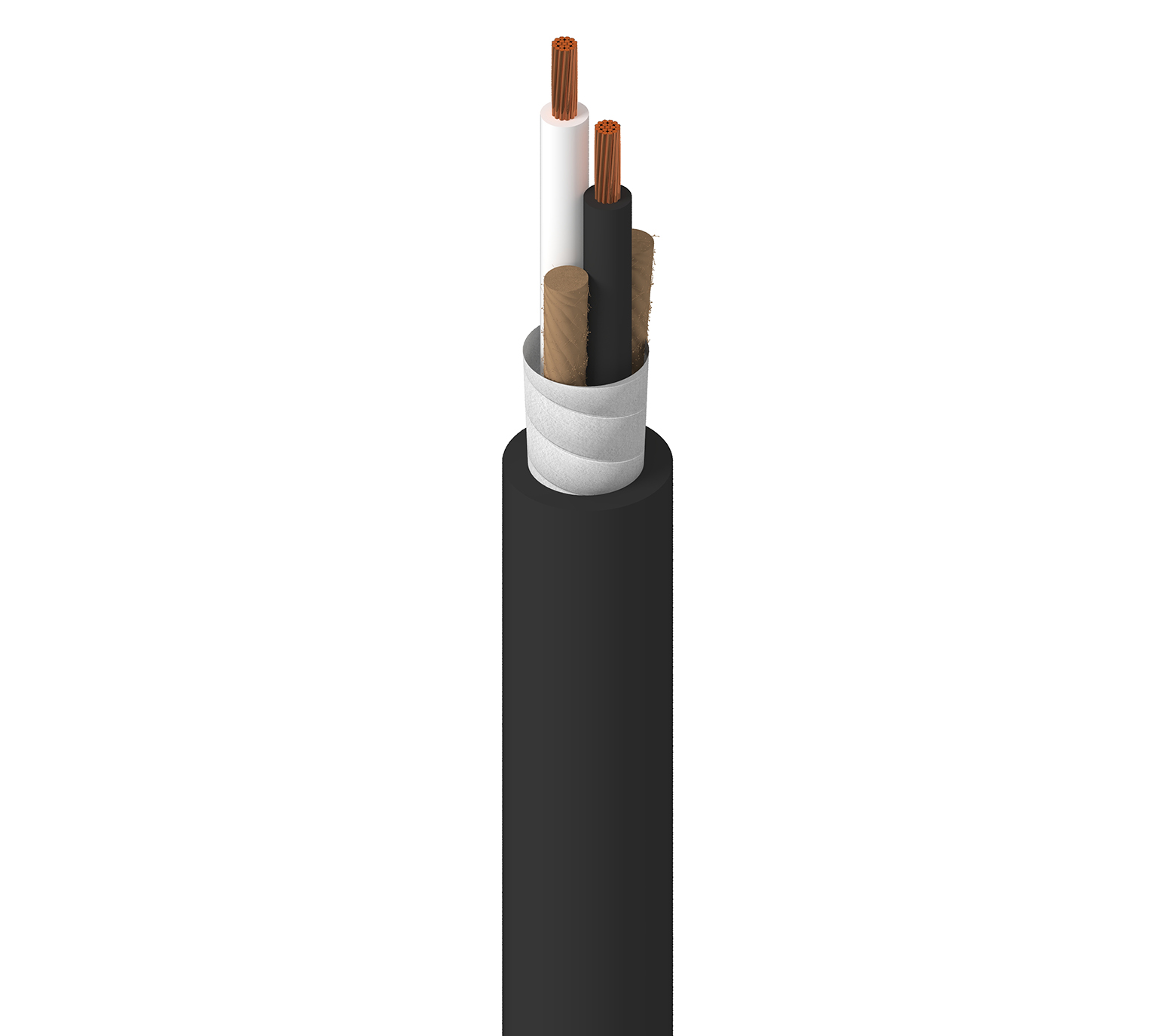

Portable Cordage, 2 C #18 Str BC, PVC Ins, PVC Jkt, UL Type SVT
Portable Cordage, 2 Conductor 18AWG (42x34) Bare Copper, PVC Insulation, PVC Outer Jacket, UL Type SVT
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
19140 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Footnote | Order |
|---|---|---|---|---|---|---|
| 19140 010250 | Black | Reel | 250 ft | 612825126706 | F | Order online |
| 19140 008250 | Gray | Reel | 250 ft | 612825126690 | F | Order online |
Specifications
Construction Details
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 2 |
| Size | 18 AWG |
| Stranding | 42x34 |
| Material | BC - Bare Copper |
Insulation
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.018 in (0.46 mm) |
| Nom. Insulation Diameter | 0.084 in (2.1 mm) |
| Color Code | Black, White |
Outer Jacket
| Separator | Paper Tape |
|---|---|
| Material | PVC - Polyvinyl Chloride |
| Nom. Thickness | 0.036 in (0.91 mm) |
| Nom. Diameter | 0.243 in |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | Max. Current |
|---|---|
| 6.97 Ohm/1000ft | 10 Amps per Conductor at 25oC (7 Amps over 50 ft) |
| 7 Amps per Conductor at 25oC (over 50 ft) |
Voltage
| UL Voltage Rating | 300 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 42.6 lbs (19.3 kg) |
|---|---|
| Bulk Cable Weight | 32 lbs/1000ft |
Temperature
| UL Temperature | 60°C |
|---|
Standards and Compliance
| Environmental Suitability | Oil Resistance |
|---|---|
| NEC / UL Compliance | Article 400, SVT |
| AWM Compliance | SVT |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
Product Notes
| Notes | Overall Cabling Separator Material: Paper Tape |
|---|
History
| Update and Revision | Revision Number: 0.391 Revision Date: 09-07-2025 |
|---|---|
| Footnote | F - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'. |
