Product Number: 19115

Portable Cordage, 2 C #18 Str BC, Rubber Ins, UL Type SP-1

Name: Belden 19115
Brand: Belden
SKU: 19115

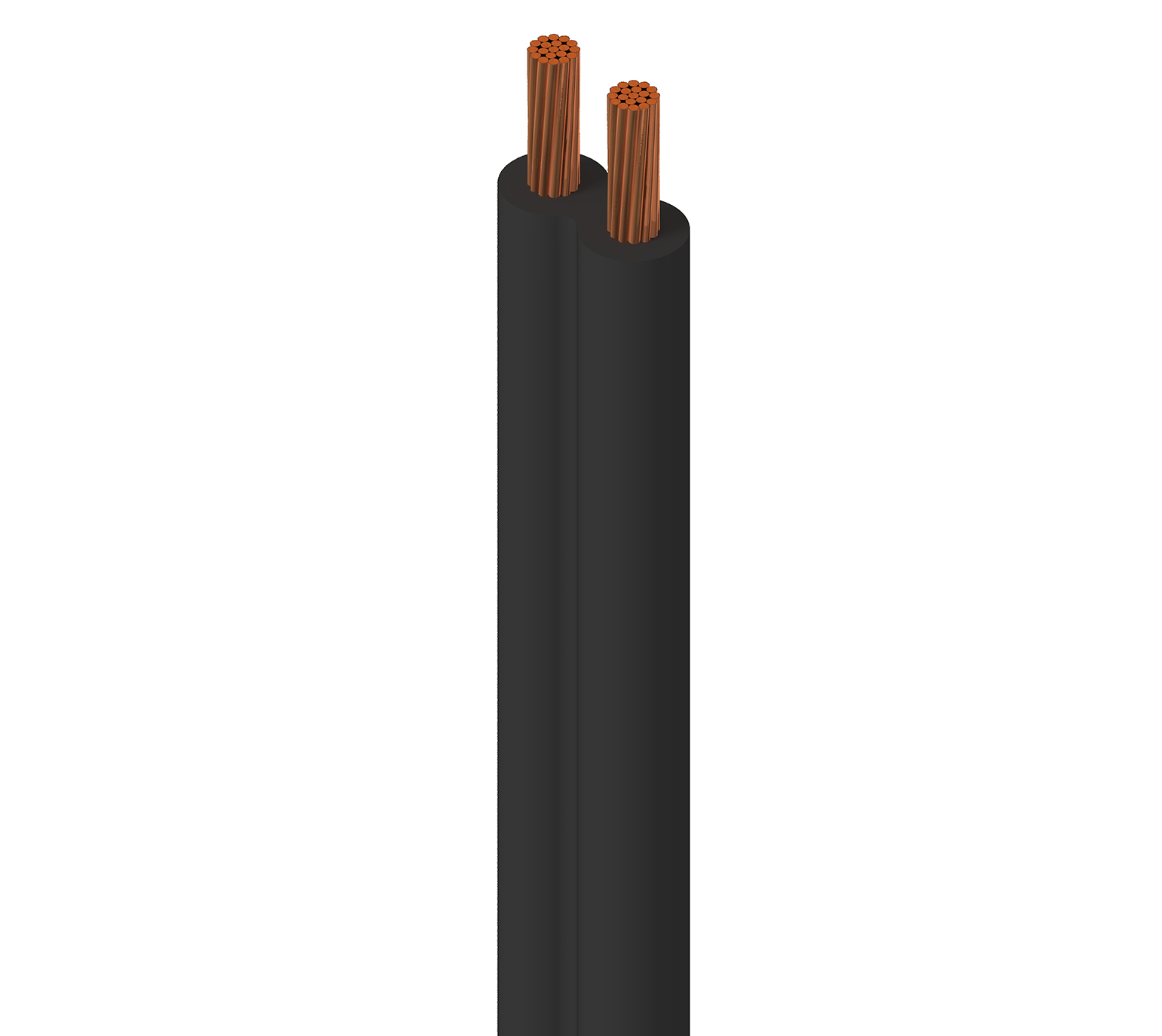

Portable Cordage, 2 Conductor 18AWG (41x34) Bare Copper, Rubber Insulation, UL Type SP-1

Ships from and sold by A5 IT.

Part numbers

19115 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
19115 010250	Black	Reel	250 ft	612825126522	F	Order online

Overall Cable Diameter (Nominal)	0.123 x 0.227 in

Element	Conductor(s)
Material	SBR - Styrene Butadiene Rubber
Nom. Thickness	0.035 in (0.89 mm)
Nom. Insulation Diameter	0.123 x 0.277 in mm
Color Code	Black and Numbered

Material	No Shield

Max. Current
7 Amps per Conductor at 25oC (over 50 ft)
7 Amps per Conductor at 25oC (over 50 ft)

UL Voltage Rating	300 V

Max. Pull Tension	41 lbs (19 kg)
Bulk Cable Weight	24 lbs/1000ft

UL Temperature	60°C
Operating	-20°C To +60°C

Stationary Min.	0.28 in (7.1 mm)
Installation Min.	0.28 in

Environmental Suitability	Indoor
Flammability / Reaction to Fire	FT2
NEC / UL Compliance	Article 400, SP-1
European Directive Compliance	EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
