Product Number: 7785ANH

7785ANH - Triax 14, 11 AWG Str SPC, SPC + BC Braids, LSZH-C Jkt

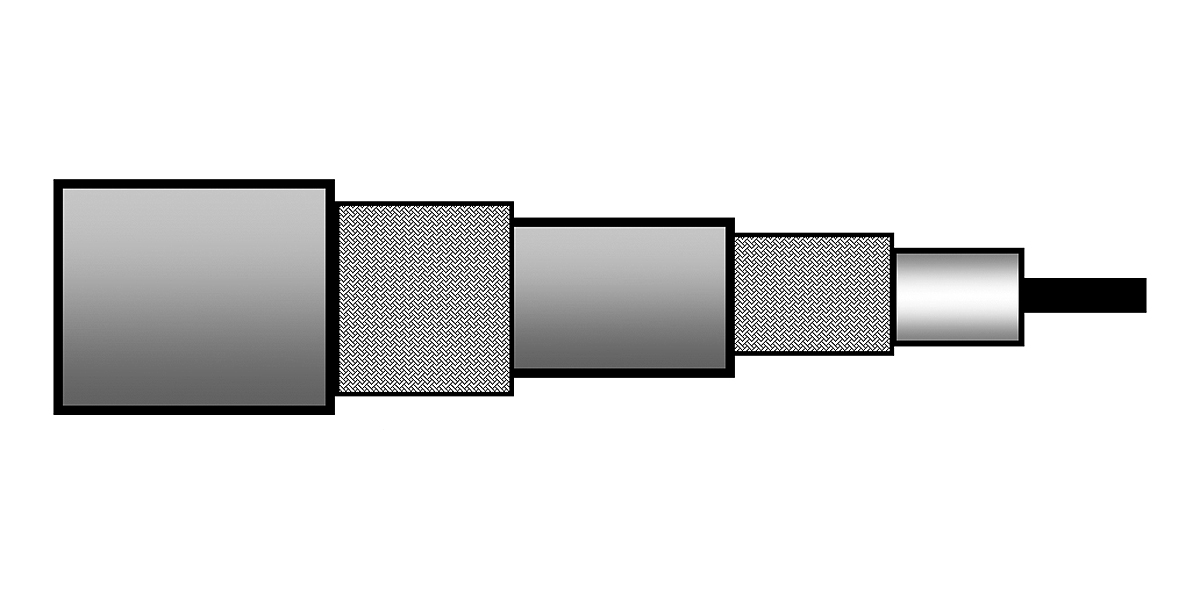

Triax 14, 11 AWG (7x21) Stranded Silver plated Copper Conductor, PE Insulation, 80% Silver plated Copper Braid Shield, PE Insulation, 80% Bare Copper Braid Shield, LSZH Jacket. IEC 60332-3-24.

Availability: EMEA | Asia Pacific
Status: Discontinued

Ships from and sold by A5 IT.

Specifications

Product Overview

Suitable Applications	Analog Video; Interconnect camera to CCU (camera control unit)

Construction Details

Series Type	Triax 8/11/14

Conductor

No. of Elements	1
Size	12 AWG
Stranding	Stranded
Nom. Diameter	2.2 mm
Material	SC - Silvered Copper

Insulation

Element	Insulated Conductor
Material	PE - Polyethylene (Foam)
Nom. Insulation Diameter	9.7 mm (0.38 in)

Inner Shield

Shield Type	Braid
Material	Silvered Copper (SC)
Coverage	80%

Inner Jacket

Material	LSZH - Low Smoke Zero Halogen (Flame Retardant)
Nom. Diameter	11.9 mm (0.469 in)

Outer Shield

Outer Shield Type	Braid
Material	Bare Copper (BC)
Coverage	80%

Outer Jacket

Material	LSZH - Low Smoke Zero Halogen (Flame Retardant)
Nom. Diameter	14.5 mm

Electrical Characteristics

Return Loss

Frequency	5 - 850 MHz
Min. Return Loss	21 dB

Attenuation

Frequency	Nom. Attenuation
1 MHz	0.4 dB/100m
10 MHz	1.3 dB/100m
20 MHz	1.7 dB/100m
40 MHz	2.5 dB/100m
50 MHz	2.8 dB/100m
60 MHz	3.1 dB/100m
100 MHz	4.2 dB/100m
270 MHz	7 dB/100m
300 MHz	7.6 dB/100m
540 MHz	10.1 dB/100m
1000 MHz	14.3 dB/100m

Electricals

Nom. Conductor DCR	5.7 Ohm/km
Nom. Inner Shield DCR	6.4 Ohm/km (2.0 Ohm/1000ft)
Nom. Outer Shield DCR	4.1 Ohm/km (1.2 Ohm/1000ft)
Nom. Capacitance Cond-to-Shield	55 pF/m (17 pF/ft)
Nom. Characteristic Impedance	75 Ohm
Nom. Velocity of Prop.	81%

Screening

Frequency	30 - 850 MHz
Min. Screening Attenuation	75 dB

Mechanical Characteristics

Max. Pull Tension	550 N (120 lbf)

Temperature

Operating	-30°C To +70°C
Installation	-5°C To +70°C
Storage	-30°C To +70°C

Bend Radius

Stationary Min.	150 mm (5.9 in)

Standards and Compliance

Environmental Suitability	Indoor/Outdoor - Euroclass Eca, Indoor, Outdoor, Non-Halogenated, Sunlight Resistance - UL 1581 sec 1200 Black Only
Flammability / Reaction to Fire	IEC 60332-1-2
CPR Compliance	CPR Euroclass: Eca
European Halogen Free Standards	IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 2.5 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3
European Directive Compliance	EU CE Mark
UK Regulation Compliance	UKCA Mark
