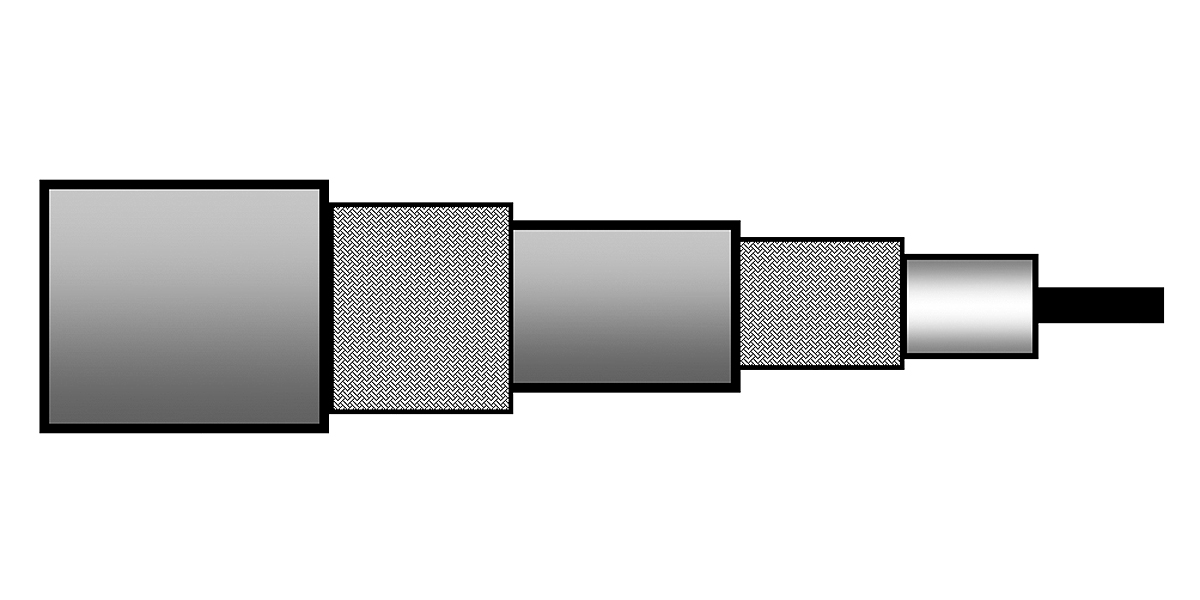

7783E - Triax 8, RG-6, 18 AWG SBC, Double BC Braids, PVC Jkt
Triax 8, RG-6, 18 AWG Solid Bare Copper Conductor, PE Insulation, 80% Bare Copper Braid Shield, PE Insulation, 80% Bare Copper Braid Shield, PVC Jacket.
- Availability
- EMEA | Asia Pacific
- Status
- Discontinued
- Orderable items
- 2
Part numbers
7783E is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | EAN | Order |
|---|---|---|---|---|---|
| 7783E.02500 | Red | Reel | 500 m | 8719605014153 | Order online |
| 7783E.021000 | Red | Reel | 1,000 m | 8719605014146 | Order online |
Specifications
Product Overview
| Suitable Applications | Analog Video; Interconnect camera to CCU (camera control unit) |
|---|
Product Life Cycle
| Life Cycle | Discontinued - the product is no longer manufactured |
|---|
Construction Details
| Series Type | Triax 8/11/14 |
|---|
Conductor
| No. of Elements | 1 |
|---|---|
| Size | 18 AWG |
| Stranding | Solid |
| Nom. Diameter | 1.02 mm |
| Material | BC - Bare Copper |
Insulation
| Element | Insulated Conductor |
|---|---|
| Material | PE - Polyethylene (Foam) |
| Nom. Insulation Diameter | 4.57 mm (0.180 in) |
Inner Shield
| Shield Type | Braid |
|---|---|
| Material | Bare Copper (BC) |
| Coverage | 80% |
Inner Jacket
| Material | PE - Polyethylene |
|---|---|
| Nom. Diameter | 6.6 mm (0.26 in) |
Outer Shield
| Outer Shield Type | Braid |
|---|---|
| Material | Bare Copper (BC) |
| Coverage | 80% |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Diameter | 8.4 mm (0.33 in) |
Electrical Characteristics
| Voltage Rating Table Notes | Maximum operating |
|---|
Attenuation
| Frequency | Nom. Attenuation |
|---|---|
| 1 MHz | 0.7 dB/100m |
| 5 MHz | 1.5 dB/100m |
| 10 MHz | 2.2 dB/100m |
| 70 MHz | 5.7 dB/100m |
| 100 MHz | 6.9 dB/100m |
| 140 MHz | 8.2 dB/100m |
| 200 MHz | 9.8 dB/100m |
| 300 MHz | 12.2 dB/100m |
| 400 MHz | 14.2 dB/100m |
| 500 MHz | 16 dB/100m |
| 700 MHz | 19.1 dB/100m |
| 800 MHz | 20.5 dB/100m |
| 1000 MHz | 23.2 dB/100m |
| 1500 MHz | 29 dB/100m |
| 2000 MHz | 34 dB/100m |
| 2400 MHz | 37.8 dB/100m |
Electricals
| Nom. Conductor DCR | 22 Ohm/km (6.7 Ohm/1000ft) |
|---|---|
| Nom. Inner Shield DCR | 13 Ohm/km (4.0 Ohm/1000ft) |
| Nom. Outer Shield DCR | 8.5 Ohm/km (2.6 Ohm/1000ft) |
| Nom. Capacitance Cond-to-Shield | 52 pF/m (16 pF/ft) |
| Nom. Characteristic Impedance | 75 Ohm |
| Nom. Velocity of Prop. | 83% |
Voltage
| Voltage Rating | 400 V RMS |
|---|
Mechanical Characteristics
| Max. Pull Tension | 250 N (56 lbf) |
|---|
Temperature
| Operating | -40°C To +70°C |
|---|---|
| Installation | -5°C To +70°C |
| Storage | -40°C To +70°C |
Bend Radius
| Stationary Min. | 80 mm (3.1 in) |
|---|
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Flammability / Reaction to Fire | IEC 60332-1-2 |
| European Directive Compliance | EU CE Mark |
History
| Update and Revision | Revision Number: 0.313 Revision Date: 06-12-2026 |
|---|
Resources
