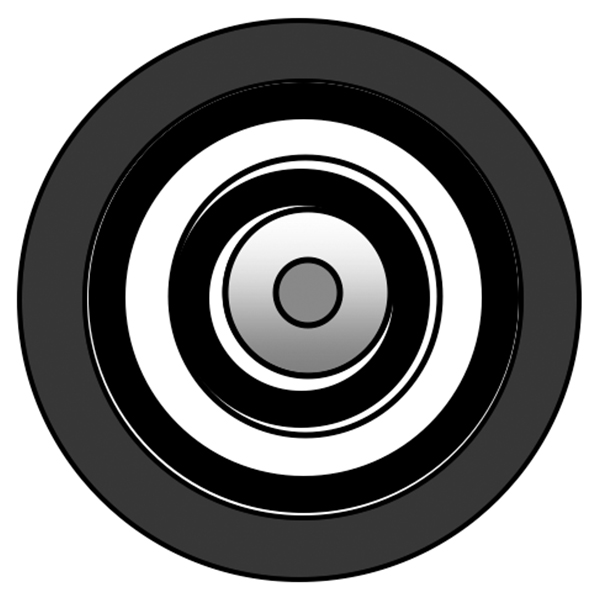

Computer Cable for RG-62A/U Type Coaxial Cable
22 AWG, Bare Copper Covered Steel, Polyethylene Insulation, 34 AWG Copper Braiding, FRNC Sheath, Steel Wire Armor, FRNC Jacket
- Availability
- Global
- Status
- Active
- Orderable items
- 3
Part numbers
9269LS is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | EAN | Order |
|---|---|---|---|---|---|
| 9269LS.00500 | Black | Reel | 500 m | 8719605020390 | Order online |
| 9269LS.009999 | Black | Reel | 500 m | 8719605174154 | Order online |
| 9269LS.001000 | Black | Reel | 1,000 m | 8719605020383 | Order online |
Specifications
Product Overview
| Suitable Applications | RG62A/U Coax 93 Ohm; For data transmission applications |
|---|
Construction Details
Conductor
| Element | Coax(es) |
|---|---|
| No. of Elements | 1 |
| Size | 22 AWG |
| Stranding | Solid |
| Nom. Diameter | 0.64 in |
| Material | BCCS - Bare Copper Covered Steel |
Insulation
| Element | Coax(es) |
|---|---|
| Material | PO - Polyolefin |
| Nom. Insulation Diameter | 3.71 mm (0.146 in) |
| Color Code | Clear |
Inner Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|---|---|
| Nom. Diameter | 6.1 mm (0.24 in) |
Outer Shield
| Outer Shield Type | Braid |
|---|---|
| Material | Bare Copper (BC) |
| Coverage | 95% |
Armor
| Armor Type & Material | SWA - Steel Wire Armor |
|---|---|
| Armor Thickness | 0.9 mm (0.035 in) |
| Coverage | Min. 95% |
Outer Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|---|---|
| Nom. Diameter | 10.55 mm (0.4154 in) |
Electrical Characteristics
Attenuation
| Frequency | Nom. Attenuation |
|---|---|
| 1 MHz | 0.82 dB/100m |
| 10 MHz | 2.79 dB/100m |
| 50 MHz | 6.23 dB/100m |
| 100 MHz | 8.86 dB/100m |
| 200 MHz | 12.47 dB/100m |
| 400 MHz | 17.39 dB/100m |
| 700 MHz | 23.95 dB/100m |
| 900 MHz | 26.9 dB/100m |
| 1000 MHz | 28.54 dB/100m |
Electricals
| Nom. Conductor DCR | 16.5 Ohm/1000ft (54.1 Ohm/km) |
|---|---|
| Nom. Outer Shield DCR | 9.5 Ohm/km (2.9 Ohm/1000ft) |
| Nom. Capacitance Cond-to-Shield | 44.3 pF/m (13.5 pF/ft) |
| Nom. Characteristic Impedance | 93 Ohm |
| Nom. Velocity of Prop. | 84% |
Mechanical Characteristics
| Max. Pull Tension | 46.8 lbs (21.2 kg) |
|---|
Temperature
| Installation | -15°C To +80°C |
|---|---|
| Storage | -45°C to +80°C |
Bend Radius
| Installation Min. | 158.25 mm (6.2303 in) |
|---|
Standards and Compliance
| Environmental Suitability | Indoor Indoor/Outdoor Outdoor Indoor/Outdoor - Euroclass Eca, Oil Resistance - IEC 60811-404 |
|---|---|
| Flammability / Reaction to Fire | IEC 60332-3-24 |
| CENELEC Compliance | EN 50290-2-20 |
| European Halogen Free Standards | IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 2.5 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3, IEC 61034-2 - Smoke Density Min. Transmittance = 60% |
History
| Update and Revision | Revision Number: 0.195 Revision Date: 07-23-2026 |
|---|
