Product Number: 8254

93Ω RG-62/U Type, #22 Sol BCCS, Semi-solid PE, BC Braid, PVC Jkt

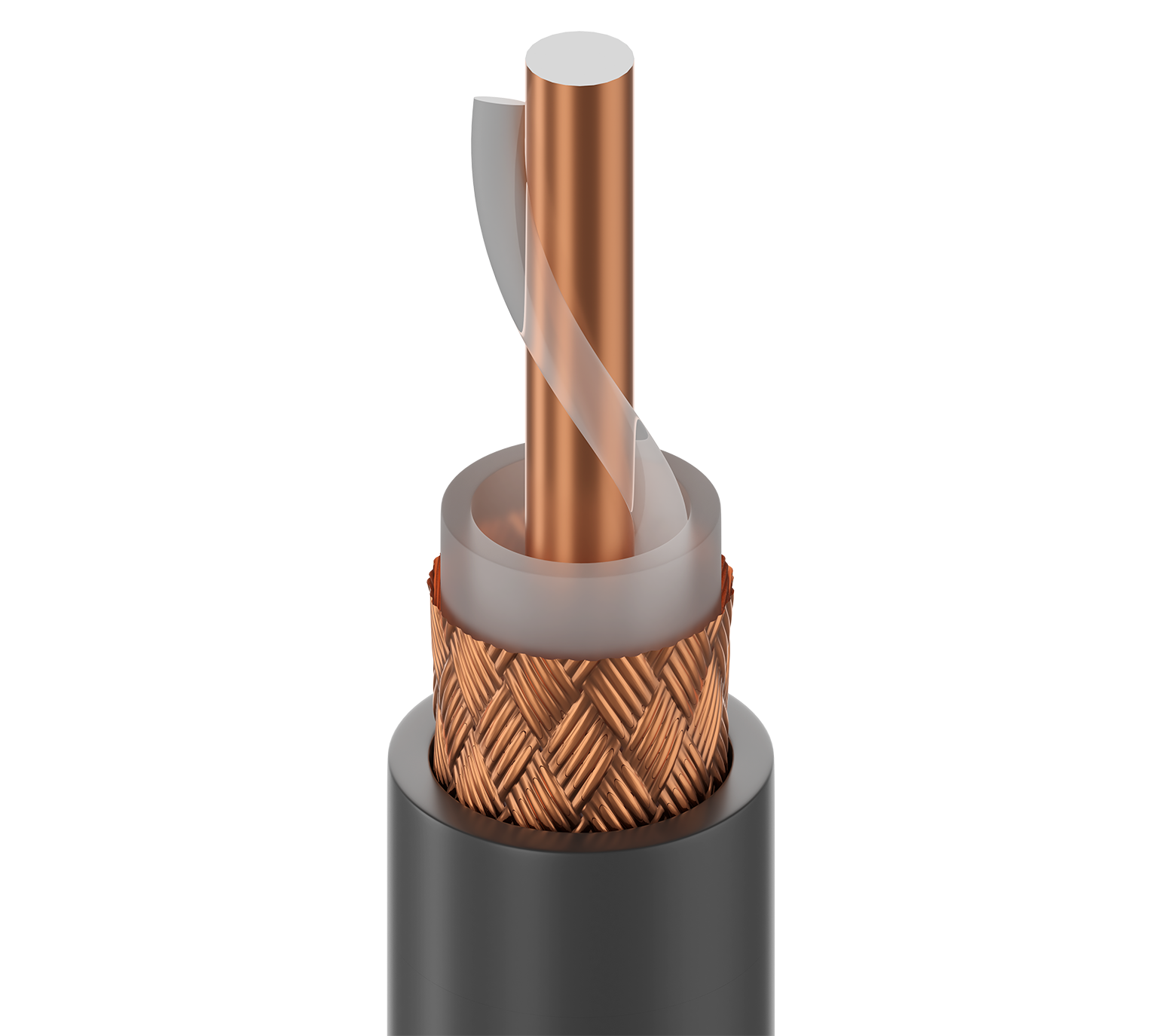

Coax 93Ω RG-62/U Type, 22 AWG solid bare copper-covered steel conductor, semi-solid polyethylene insulation, bare copper braid shield (95% coverage), PVC jacket

Availability: Global
Status: Active
Orderable items: 4

Ships from and sold by A5 IT.

Part numbers

8254 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
8254 010500	Black	Reel	500 ft	612825197300	C	Order online
8254 0101000	Black	Reel	1,000 ft	612825197294	—	Order online
8254 010U1000	Black	UnReel	1,000 ft	612825197287	—	Order online
8254 0105000	Black	Reel	5,000 ft	612825197317	—	Order online

Specifications

Product Overview

Suitable Applications	Computer, Instrumentation

Construction Details

RG Type	62
Overall Cable Diameter (Nominal)	0.238 in (6.05 mm)

Conductor

Size	22 AWG
Stranding	Solid
Nom. Diameter	0.025 in
Material	BCCS - Bare Copper Covered Steel

Insulation

Material	PE - Polyethylene (Semi-Solid)
Nom. Insulation Diameter	0.146 in (3.71 mm)
Color Code	White
Notes	Solid PE monofilament spiral around conductor. Solid PE tube over monofilament

Outer Shield

Layer	1
Outer Shield Type	Braid
Material	Bare Copper (BC)
Coverage	95%

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Diameter	0.238 in (6.05 mm)

Electrical Characteristics

Attenuation

Frequency	Nom. Attenuation
1 MHz	0.25 dB/100ft
10 MHz	0.85 dB/100ft
50 MHz	1.90 dB/100ft
100 MHz	2.70 dB/100ft
200 MHz	3.80 dB/100ft
400 MHz	5.30 dB/100ft
700 MHz	7.30 dB/100ft
900 MHz	8.20 dB/100ft
1000 MHz	8.70 dB/100ft

Electricals

Nom. Conductor DCR	55.0 Ohm/1000ft
Nom. Outer Shield DCR	2.6 Ohm/1000ft (8.5 Ohm/km)
Nom. Capacitance Cond-to-Shield	13.5 pF/ft (44.3 pF/m)
Nom. Characteristic Impedance	93 Ohm
Nom. Velocity of Prop.	84%

Voltage

Voltage Rating	750 V

Mechanical Characteristics

Max. Pull Tension	88 lbs (40 kg)
Bulk Cable Weight	33 lbs/1000ft

Temperature

Operating	-40°C to +75°C

Bend Radius

Installation Min.	2.4 in (61 mm)

Standards and Compliance

Environmental Suitability	Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, UV Resistance, Aerial - When supported by messenger wire
Sustainability	CA Prop 65
CPR Compliance	CPR Euroclass: Eca
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance	UKCA Mark
APAC Compliance	China RoHS II (GB/T 26572-2011)
